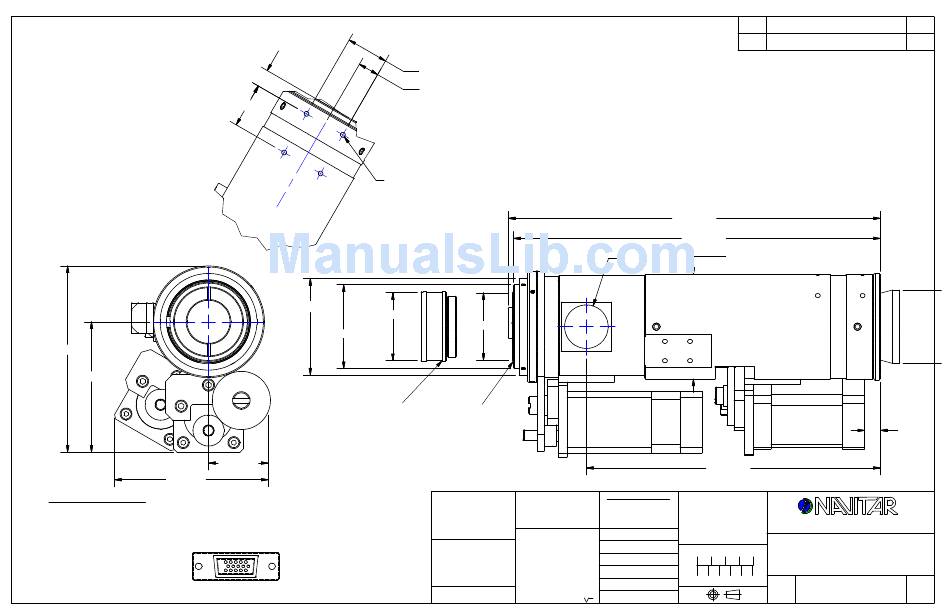

Navitar 1-51210 Dimensional Drawing

DETAIL A
(PARTIAL VIEW)
3.34 [84.7]
2.34 [59.3]
1.07 [27.1]
2.75 [69.8]
5-PHASE MOTOR PINOUT
PIN 3 = +5Vdc
PIN13 = COMMON
PIN 8 = FAR LIMIT
PIN 12 = NEAR LIMIT
PIN 15 = MOTOR 1
PIN 5 = MOTOR 2
PIN 10 = MOTOR 3
PIN 4 = MOTOR 4
PIN 14 = MOTOR 5
15 PIN HIGH DENSITY
D-SUB
.32 [8.1]
.80 [20.3]
(4) x 4-40 UNC - 2B
n
1.73 [43.9]
.800-36RMS
1 1/2-32 UN - 2A
1
2-50026
.75 [19.1]
.38 [9.5]
26.0-36RMS
1
2-50025
USED ON:
MATERIAL:
UNLESS OTHERWISE
SPECIFIED
DIMENSIONS ARE IN INCHES
AND INCLUDE CHEMICALLY
APPLIED OR PLATED FINISHES
TOLERANCES:
SCALE:
`
DEC. .XXX .005
FINISH:
`
DR.:
DEC. .XX .010
`
FRACT. 1/64
CH.:
`
ANGLES 30'
APP.:
CONCENTRICITY .003 TIR
BREAK ALL SHARP EDGES
DATE DR.:
.005 MIN. .010 MAX
CHAMFER ALL THREADS
MAX. SURF. ROUGHNESS 32
DO NOT SCALE DRAWING
~
30 TO ROOT DIAM.
REV CHANGE RECORD AND DATE CH
A RELEASE
6.66 [169.1]
6.56 [166.6]
1.88 [47.6]
13/16-32 UN - 2B
5.26 [133.5]
P/N SUFFIX DEFINITION
THE CONTENTS OF THIS
DOCUMENT ARE PROPRIETARY
-1 CONVERSION COATING
TO NAVITAR, ITS USE IS
-2 PAINTING
AUTHORIZED ONLY FOR
-3 MARKING
RESPONDING TO REQUEST
-R REWORK
FOR QUOTATION OR
1:1 PERFORMANCE OF WORK FOR
NAVITAR
MOTORIZED (5PH) 12X ULTRAZOOM
R. PODLENA
0.0 inch 1.0
P. BONAFEDE
SIZE
0.0 mm 25.0
11/19/2002
B
10/20/03
n
1.3
.28 [7.2]
ROCHESTER, NEW YORK
& 3mm FF w/COAX. & DUAL 2
POSITION LS
REV
1-51210
B
1 1
SHEET OF
