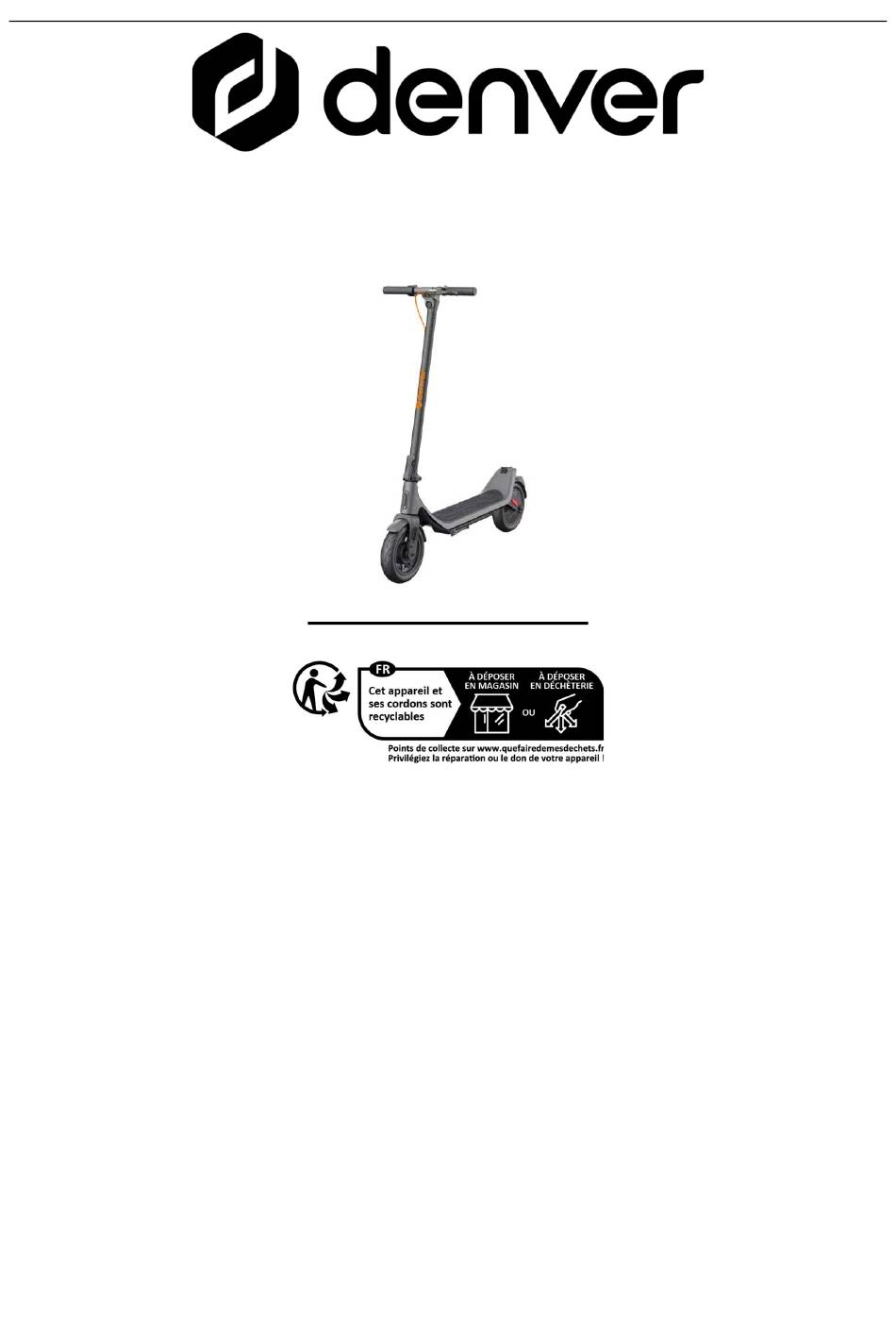

Original manual
SEL-10370F
facebook.com/denver.eu
December/2022
IMPORTANT! Read carefully and keep for future reference.
Before operating this vehicle, read all the instructions for safe assembly and
operations. User's manual can guide you through the functions and usage of Electric
scooter. Before using this Electric scooter, familiarize yourself with how to operate, so
that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons
with reduced physical, sensory, or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the
appliance. This appliance contains batteries that are not replaceable.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-10370F and is the answer not in the manual?

Questions and answers

Related Manuals for Denver SEL-10370F

Summary of Contents for Denver SEL-10370F

  • Page 1 Original manual SEL-10370F facebook.com/denver.eu December/2022 IMPORTANT! Read carefully and keep for future reference. Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.

  • Page 2: Table Of Contents

    Table of Contents 1. Important information before use ................. 3 2. Product overview ......................4 3. Unfolding and folding the scooter .................. 6 4. Assembling the device ....................9 5. Charging the scooter ....................11 6. Intended Use ........................ 12 7.

  • Page 3: Important Information Before Use

    1. Important information before use We urge owners of this Scooter to charged and store it in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged.

  • Page 4: Product Overview

    2. Product overview 1. Throttle 7. Folding mechanism 2. Brake lever for drum 8. Front reflector brake 9. Side reflector 3. Front light 10. Foldable stand 4. Bell 11. Rear light 5. Display 12. Rear reflector 6. Electric brake 13. Charging port...
  • Page 5 Accessories: 1. Power charger 2. T-shaped Allen key for mounting the screws. 3. Screws for mounting front steer (6 pcs).

  • Page 6: Unfolding And Folding The Scooter

    3. Unfolding and folding the scooter Unfolding 1. Release the front pole from the hook. 2. Raise the handle slowly.
  • Page 7 3. Lock the folding mechanism. Presse the folding handle onto the front pole until it is locked. Pull the folding handle to confirm that it is locked. Folding Press the small ball shaped button as shown below to release the lock.
  • Page 8 Pull out the folding handle and now you can lower the front pole.

  • Page 9: Assembling The Device

    4. Assembling the device Mounting the front steer. 1. Connect below cable tightly 2. Lower the cable inside the tube and carefully lower the steet without getting the cable stuck.
  • Page 10 3. Mount the 6 screws with the included allen key. Tighten them well.

  • Page 11: Charging The Scooter

    5. Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. 1. Open the rubber flap. 2. Plug the power plug adaptor into the charging port. 3. Fasten the rubber flap after charging to avoid dirt or water to enter. Please make sure only to use the original power adapter when charging.

  • Page 12: Intended Use

    6. Intended Use The Electric scooter is to be used by a person aged at least 14 with a maximum weight of 100 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. List of parameters”) . Importantly, the Electric scooter may only be operated in good visibility conditions and only if the physical conditions for stability on the Electric scooter are met (for example, not on one leg/not under the influence of drugs or alcohol).

  • Page 13: Maintenance

    Avoid applying too much force, stepping on or lifting scooter in the rear fender. This may cause the fender to loosen or damage the fender. This is not covered by the warranty. Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften the rubber and it will no longer have the same grip on the road as usual.
  • Page 14 Battery maintenance All batteries have a life cycle, and performance will decrease over time, however, here are some advice to maximize the life span of the battery. Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long time.
  • Page 15 Bearings and screws: The electric scooter has sealed and dustproof bearings so that no lubrication is required. Check the bearings for wear at regular intervals to avoid unsafe riding. Do not jump on and off and do not apply excessive force otherwise to avoid damage to the bearings. This is not a sports electric scooter.

  • Page 16: Operational Control

    Please make sure to keep the electric scooter turned off while cleaning it, and make sure to cover the charging input to avoid problems with the electronics. Make sure to dry the scooter with a towel, should it become wet. Please notice: Do not use alcohol, gas, kerosene or other corrosive and volatile chemical solvents.
  • Page 17 9.2 Button and speed transfer Power on / Power off Press and hold power button for few seconds. Press one time to activate or deactivate front and rear light. Quick press two times to change gear. L = First gear 6 Km/h (pedestrian mode). Rear light are flashing. This is on purpose and according to the EU regulation.
  • Page 18 9.3 Brakes The scooter is built with 2 separate brakes. 1. Electronic brake 2. Drum brake Breaking techniques: If needing to brake, then we recommend to do it this way. First release the throttle and then press the electronic brake. If harder braking is needed then use the drum brake. WARNING The braking distances will be extended during wet weather.

  • Page 19: Specification

    Rated input voltage (V) 100-240 Rated output voltage (v) Rated current (A) 1.5A Charging Time(h) Electric scooter Model: SEL-10370F Input: 100V-240V~, 50/60Hz, 1.8A(Max) Output: 42V 1.5A Max Speed: 25 km/h Weight: 16.55kg Year Of manufacture: 2022 Max Vehicle Payload: 100kg Battery: 36.5V/7.8Ah...

  • Page 20: Warnings

    11. Warnings Risks of riding WARNING First, learn safe riding before you ride the Electric scooter fast. Failure to observe, loss of control, falls, and violations of the rules can cause injuries. Speed and range depend on the rider's weight, terrain, temperature, and riding style. Wear a helmet and protective clothing when riding the Electric scooter.
  • Page 21 Avoiding damage due to overload. ● Maximum Vehicle Payload : 100kg. WARNING Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C.
  • Page 22 Children, elderly people, and pregnant women are not allowed to ride the vehicle. ● People with limited sense of balance are not allowed to ride the Electric scooter. ● Avoid riding the Electric scooter under the influence of alcohol or other substances. ●...
  • Page 23 Use the mains adapter to plug the DC input of the device into a conventional socket. ● There will be no light on the charger before charging, when connected to scooter the ● adapter will light red, and charging has started. The green indicator lights up when properly charged.
  • Page 24 WARNING Make sure to wear helmet and protective clothing before using the Electric scooter. ● Make sure to read manual carefully before using the Electric scooter. ● The Electric scooter must only be used on dry and level ground ● The Electric scooter may not be used by anyone under the age of 14 years ●...
  • Page 25 Self-tightening nuts as well as the other self-tightening fastenings may lose their efficiency and that they may need to be retightened. According to French traffic rules, reflective clothing and helmet is strongly required during cycling.
  • Page 26 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
  • Page 27 The engine in the rear wheel will this way help to activate the charging function and it will charge normally. (Full charge takes 5.5 hours if using this way) Please enter: www.denver.eu to obtain the electronic version of the manual.
  • Page 28 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-10370F Product type: Electric scooter Year of manufacturing: 2022 • Note: ONLY use the supplied charger labelled FY0634201500 with the following output voltage to charge this Electric scooter: 42V –...
  • Page 29 Torben Balmer Position: Company: DENVER A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark Date: 13. March 2023 DENVER A/S | Omega 5A | 8382 Hinnerup | Denmark Phone: +45 86 22 61 00 | E-Mail: contact@denver.eu | Web: www.denver.eu VAT.NO: DK18831678...
