Shakespeare Electronic PHASE III 6235-R Manual

IMPORTANT! Please read all instructions before installing.
Thank you for purchasing a Shakespeare antenna product. Shakespeare
works hard to build reliability and durability into all of its products for
maximum customer satisfaction.
The 6235-R is a Phase III
AM/FM Entertainment Brand antenna with stainless steel ferrules
and a female "N" connector. The antenna is 8.5" overall length,
including the 1"-14 thread adapter. The design of the Phase III
antenna series facilitates mounting to a mast or attachment to
a standard marine mount.

TOOLS REQUIRED:

• Screwdriver
• Drill
• Drill bits sized according to cable
• Wrench
Other tools or supplies that are appropriate to your specific
application may also be needed.

SUPPLIED PARTS:

1 Antenna assembly
1 1"-14 thread adapter
1 Rubber O-ring
1 Coupling nut
1 20' RG-62 coax cable with Type "N" Connector and Motorola
type plug installed

ADDITIONAL REQUIRED MATERIALS:

U-bolts, Stainless steel strapping and appropriate hardware,
if mounting the antenna to a mast
Coax extension kit, if needed to lengthen the included cable

CLEANING INSTRUCTIONS

To clean the antenna, use mild dish washing liquid (one that is not
harsh to the hands and without ammonia) in lukewarm water.
WARNING: Do not let paint solvents, cleaning solvents or adhesive
caulking come in contact with the antenna. Chemi cals in these
materials might destroy the finish.
U.S. Operations: 6111 Shakespeare Rd. · Columbia, SC 29223 · 803-227-1590 · 800-845-7750
U.K. Operations: Enterprise Way, Fleetwood, Lancashire, FY7 8RY, England · +44 (0) 1253 858787 · Fax: +44 (0) 1253-859595
©2021 and TM Shakespeare Company, LLC. All rights reserved.
series, 530-16400 KHz and 88-108 MHz
®
SHAKESPEARE
www.shakespeare-marine.com
8' AM/FM Antenna
TM

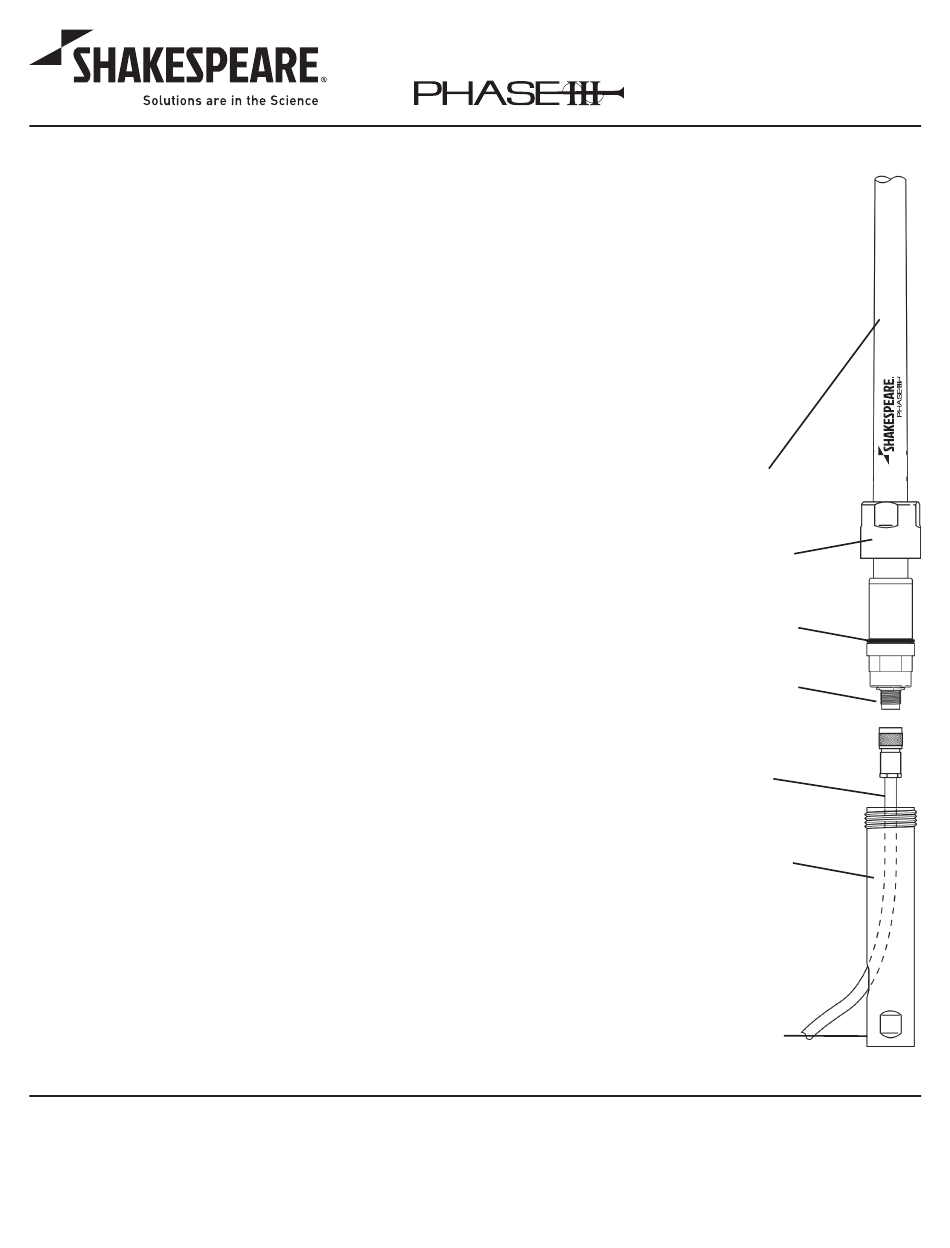

COUPLING RING
