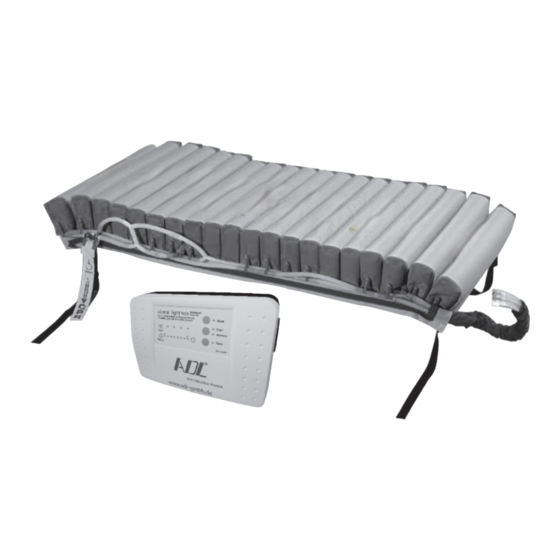

- Page 1 User Manual arsos ® filius + dexos ® light wds Item No. 111 510-DL-wds Ulcer Pressure Relief System Assembly and Operation instructions Mattress arsos® filius Power unit dexos® light wds Health. Security. Independence.
-
Page 2: Table Of Contents
List of contents Foreword page 3 1 Safety Instructions page 4 2 Product overview arsos® filius + dexos® light wds page 4 3 Introduction page 5 4 Explanation of indications and functions page 5 5 Installation arsos® filius page 6 6 Installation dexos®... -
Page 3: Foreword
DIN EN 1970-2000 and DIN EN 60601-2-38. With the writing of this user manual the product management of the ADL® GmbH has set itself the goal, to create a good and understandable aid and guidance for the employment of the system. -
Page 4: Safety Instructions
1 Safety Instructions The system may not be used in presence of open flames, heaters a.o’s. Protect the system against humidity. Operate it only in dry areas. No combustible gasses of liquids may enter into the system. EXPLOSION DANGER! Warning! Note! The compressor is under power, as soon as the power supply plug is put in. -
Page 5: Introduction
3 Introduction arsos® filius + dexos® light wds is an air mattress system, meaning that no extra treatment nursing mattress is required. This system is suitable for patients with a body weigth from 20 – 100 kg. Please note that these weight indications are applicable for patients in a laying position. -
Page 6: Installation Arsos® Filius
5 Installation arsos® filius Remove the existing nursing mattress. Position the arsos® filius on the bed base frame and fix fixation straps to the bed. (to the “up and down” moving parts of the bed). If not properly attached to the bed can result in damage to the bed and mattress. Place the mattress in such a way that the tubing’s are located at the foot end of the bed. - Page 7 Connection scheme: arsos® filius mattress with power unit dexos® light wds Group A = Cells pair 1/2, 7/8, 13/14, 19/20 Group B = Cells pair 3/4, 9/10, 15/16 Group C = Cells pair 5/6, 11/12, 17/18 Check if the tubes are not bent or clamped between other parts. Put the power supply plug in and switch on the unit with the power button When the lights at the display are lighting up, the unit is operational.
- Page 8 There are no standard settings. The most effective pressure level can be set with the pressure setting button. The scale is divided into 8 parts. After the power unit is turned on, the standard pressure is set in the middle of the scale, about 30 mbar. Pressure can be lowered by repeated pressing on the left button 2 (▼...
- Page 9 Principle of alternating pressure (every second cells pair deflated; showing group B) „Hammock effect“ (to be avoided at any time) High extended pressure in the sacral area. Optimal support of the patient (Knee-joints, lumbar and cranial lordosis are supported) min. 3 – 4 cm Patient may not Static pressure sink to the base...
-
Page 10: Other Settings
7 Other settings Static In case of a contra indication for alternating pressure the system can be switched to static mode by pressing button 4 (static/alternate). The light will change from blue to green (static). In static mode all cells of the system will be filled with air to the set pressure level. - Page 11 3. Power failure alarm When the power system to which the unit is connected fails, there is a power failure alarm. The unit beeps and the red alarm light flashes. The acoustic alarm can be disabled with the alarm and power button.
-
Page 12: Cleaning Instructions · Service
9 Cleaning instructions · Service • During use the mattress and tubes should be cleaned weekly using a damp soft cloth and mild detergent or non-phenol germicidal solution. Never use any detergents containing aldehyds! • After changing to another patient the mattress should be disinfected by a accredited company approved by the Robert-Koch-Institute. -
Page 13: Troubleshooting
ADL® GmbH prescribes safety-related revisals of all electric powered parts after at least 2 years. The rules for accident prevention BGV A2 will remain unaffected. The revisals may only be conducted by especially trained personal. 10 Troubleshooting Module Problem Cause Measure arsos®... -
Page 14: Indications · Contra Indications
11 Indications · Contra indications Function Indication Counter indication Alternating Decubitus prevention and Instable fractures, pressure with therapy support up loss of sensitivity, dexos® light wds till stage III pain, muscular hypertonia, (according to EPUAP), (e.g. contractions, spasms) with High Risk pressure ulcers stage III - IV (according to Braden), (according to EPUAP),... -
Page 15: Technical Data
12 Technical data Mattress Pump arsos® filius dexos® light wds Cover Item No. 100 510-DL-wds 111 203-wds-new 111 542 Material Polyurethane PU/PA Dimensions (cm) 140 x 90 x 11,5 23 x 15 x 8,5 200 x 95 x 12 Weight ca. - Page 16 In case of technical problems please contact your appointed dealer or direct to ADL® GmbH. (Dealer stamp) ADL® Medical B.V. International ADL® GmbH Maidstone 28 Lise-Meitner-Straße 3 5026 SK Tilburg 48161 Muenster The Netherlands Germany Phone: + 31 (0) 13 5772 088...
