SYSMEX KX-21 Operator's Manual
  1. Manuals
  2. Brands
  3. SYSMEX Manuals
  4. Laboratory Equipment
  5. KX-21
  6. Operator's manual

SYSMEX KX-21 Operator's Manual

Automated hematology analyzer
Hide thumbs

Advertisement

Quick Links

CHAPTER 1:
CHAPTER 2:
CHAPTER 3:
CHAPTER 4:
CHAPTER 5:
CHAPTER 6:
CHAPTER 7:
CHAPTER 8:
CHAPTER 9:
CHAPTER 10: INSTRUMENT SETUP
APPENDIX A: INSTALLATION
APPENDIX B: TECHNICAL INFORMATION
INDEX
Copyright © 1997 - 2000 by SYSMEX CORPORATION
All rights reserved. No part of this Operator's Manual may be
reproduced in any form or by any means whatsoever without
prior written permission of SYSMEX CORPORATION.
INTRODUCTION
SAMPLE ANALYSIS
DISPLAY AND PROCESSING OF ANALYSIS RESULTS
MAINTENANCE AND SUPPLIES REPLACEMENT
QUALITY CONTROL
CALIBRATION
TROUBLESHOOTING
ADJUSTMENT
FUNCTIONAL DESCRIPTION
SYSMEX CORPORATION
OPERATOR'S MANUAL

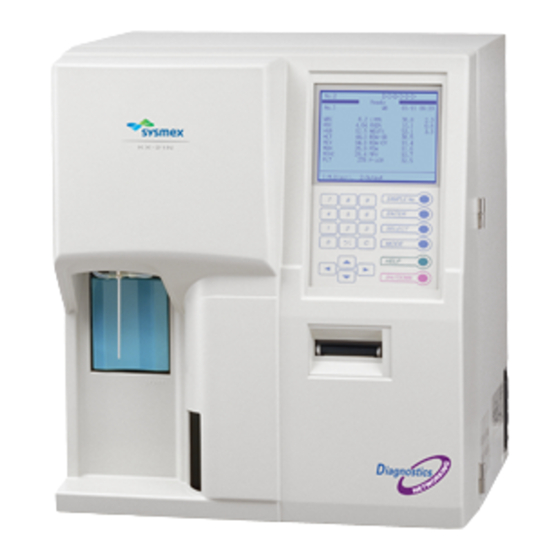

AUTOMATED HEMATOLOGY ANALYZER
KX-21
KOBE, JAPAN
Code No. 461-2261-1
PRINTED IN JAPAN
Date of Last Revision: January 2000

Advertisement

loading
Need help?

Need help?

Do you have a question about the KX-21 and is the answer not in the manual?

Questions and answers

Zameer
March 3, 2025

How to solved pressure errors

User image 67c573b2c4115
0
1 comments:
Mr. Anderson
March 3, 2025

To solve pressure errors on the SYSMEX KX-21, follow these steps:

1. Check the Pressure Value – Verify if the pressure is at the correct level (0.5 kg/cm²).
2. Adjust the Pressure – If incorrect, adjust the pressure using the control knobs.
3. Inspect for Leaks – Ensure there are no air leaks in the pneumatic system.
4. Clean the SRV and Transducer – Perform cleaning as needed to maintain proper function.
5. Check Fixing Screws – Ensure all screws related to the pneumatic unit are properly tightened.
6. Reset the Instrument – Restart the device to check if the error persists.

If the issue continues, further troubleshooting or service may be needed.
