MANUAL W-BACnet and W-BACnet PRO

APPLICATION AREA

The W-BACnet product transmits BACnet MS/TP frames wirelessly. It is
designed to be used indoors as a BACnet MS/TP cable replacement.

GENERAL

All relevant personnel must acquaint themselves with these instructions
before installation. Warranty is subject to void if the product is not hand-
led accordingly with the outlined instructions. Any damage to the product
or parts due to improper handling will void the warranty. For additional
W-BACnet documentation scan the QR-code or visit www.lumenradio.com.

WARRANTY

The warranty or service agreement will be deemed void if:
(1) The product is repaired, modified, or changed, unless such repair,
modification or change has been approved by LumenRadio AB; or
(2) The serial number on the product has been made ineligible or is missing.

THE PACKAGING CONTAINS

1 x W-BACnet or 1 x W-BACnet PRO
1 x Instruction leaflet
FCC ID: XRSTIMOMWAN201
IC: 8879A-TIMOMWAN201

ELECTRICAL SAFETY

Only qualified electricians or service personnel trained by LumenRadio
may perform interventions in connection with electrical installation. Always
follow local/national rules when performing this type of electrical installa-
tion. When connecting a 24 V isolation transformer, this must be done in
accordance with IEC 61558-1.

TECHNICAL DATA

Power supply:
Max. power consumption:
24 V output max. power:
Auto resettable fuse:
Cable rating, connector:

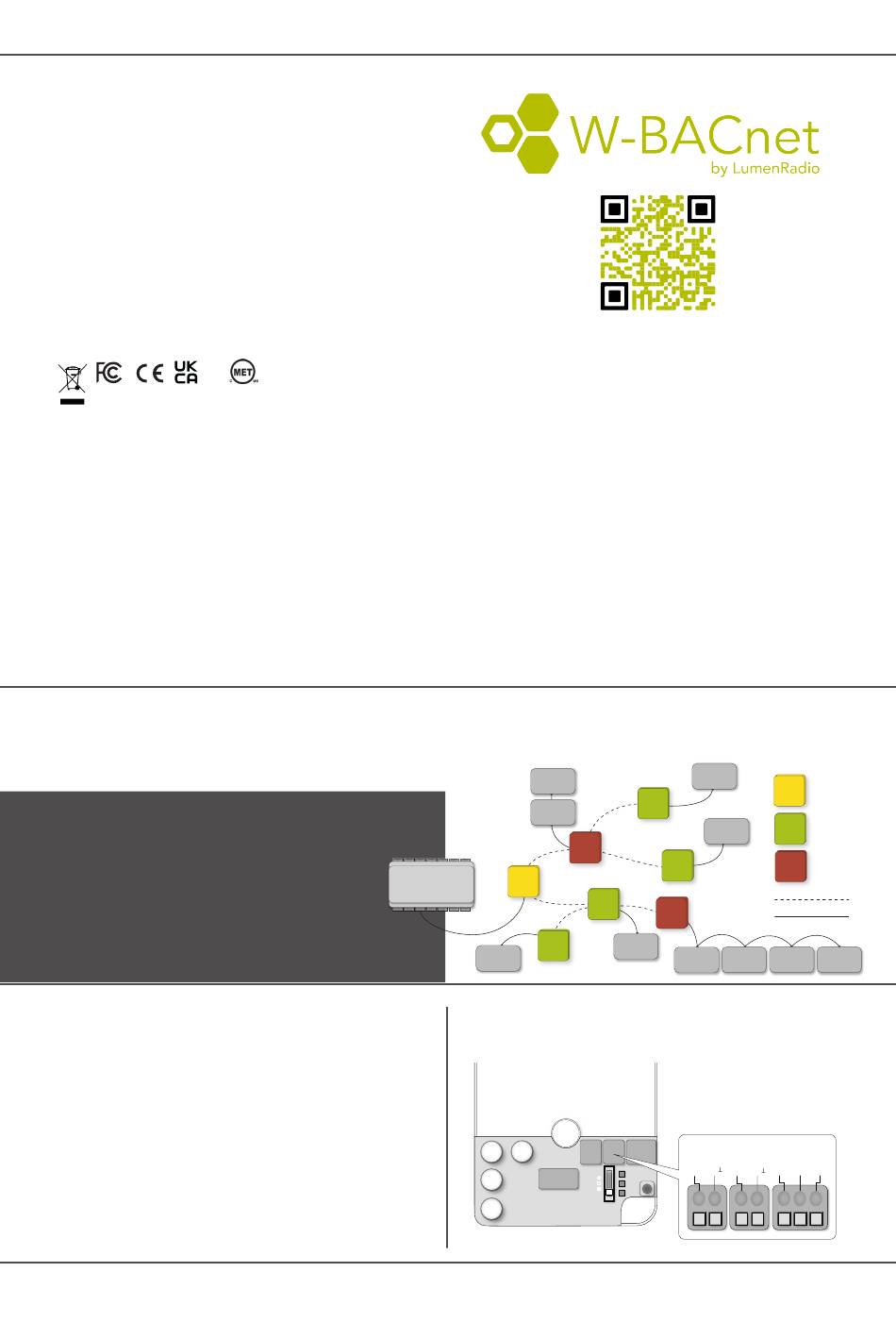

SYSTEM OVERVIEW

A W-BACnet network consists of a single W-BACnet Gateway connected
to the BACnet Controller using an RS485 cable, and up to 100 W-BACnet
Nodes, each of them connected to a BACnet MS/TP device over a RS485
cable. Every device can act as either a Gateway or a Node, selectable by the
3 pole switch - see Commissioning section.
W-BACnet PRO
With the PRO version of W-BACnet, up to four BACnet devices
can be connected to one W-BACnet PRO Node - making it even
easier to connect multiple devices located in close proximity to
each other.
W-BACnet and W-BACnet PRO are fully compatible and can be
mixed in a system. All instructions below apply to both models.
The label on the back of the product shows the product type:
W-BACnet or W-BACnet PRO.

INSTALLATION

Install the W-BACnet unit next to the device it should be connected to
1. Confirm that the W-BACnet unit has no visible damage
2. The W-BACnet enclosure is wall mounted and fits onto a junction box.
Start with mounting the backplate of the enclosure.
3. Connect the power supply and the BACnet MS/TP device to the
W-BACnet unit, as shown to the right. Use the rear and/or top knock-
outs for cable entry.
4. All W-BACnet units are factory set for Node operation, without the
need for additional configuration. If mixing serial configuration in the
system, adjust the dip switches accordingly.
5. Secure the front plate to the mounted back plate
6. Check that the W-BACnet unit and its wiring are securely mounted (if
the unit is powered this will be indicated by the LEDs)
The device is now ready for commissioning.
W-BACnet is an end device with internal termination resistor.
Copyright © LumenRadio AB 2023
All Rights Reserved
MANUFACTURER
LumenRadio AB
Johan Willins gata 6
416 64 Gothenburg
Sweden
E115504
UL 62368-1
CSA C22.2 No. 62368-1
24 VAC ±15% 50-60 Hz, 24 VDC ±15%
only to be powered by a UL listed LPS
power supply of max 15 W
2.5 W
10 W
Yes
solid / stranded 0.14 - 0.5 mm / 0.2 - 0.5
2
mm
2
www.lumenradio.com
Conductor sizes (AWG):
Frequency band:
Baud rate:
Number of Nodes:
Number of hops:
Range per hop:
Output (ERP):
IP class:
Material:
Colour:
Ambient temperature:
Storage:
RH:
Weight:
Dimensions:
It is recommended to install the W-BACnet Gateway by the BACnet MS/TP
Controller, to achieve best performance.
MS/TP device
MS/TP device
MS/TP Controller
MS/TP device

POWER AND RS485 CONNECTION

The W-BACnet units have 24 VAC/VDC power in/out connection and
connection for BACnet MS/TP communication.
LUMENRADIO
Scan for additional
information
24 – 20
2.45 GHz, ISM band (2400-2483 MHz)
9600, 19200, 38400, 76800 bps
100 nodes in one wireless network
Max 8 hops in the meshing network
500 m line of sight (approximately 50-
70 m indoors with walls)
Max 20 dBm
40
ABS UL94-V0
White, RAL 9003
Operating: -20 to +55°C
-30 to +80°C
10 – 95% non-condensing
95g
W86.0 x H86.0 x D25.5 mm
MS/TP device
MS/TP device
MS/TP device
MS/TP device MS/TP device MS/TP device
24V AC/DC
- -
+ +
G/~ G0/
G/~ G0/ A+
www.lumenradio.com
W-BACnet Gateway
W-BACnet Node
W-BACnet PRO Node
Wireless Mesh
Bacnet MS/TP cable
MS/TP device
B- GND
