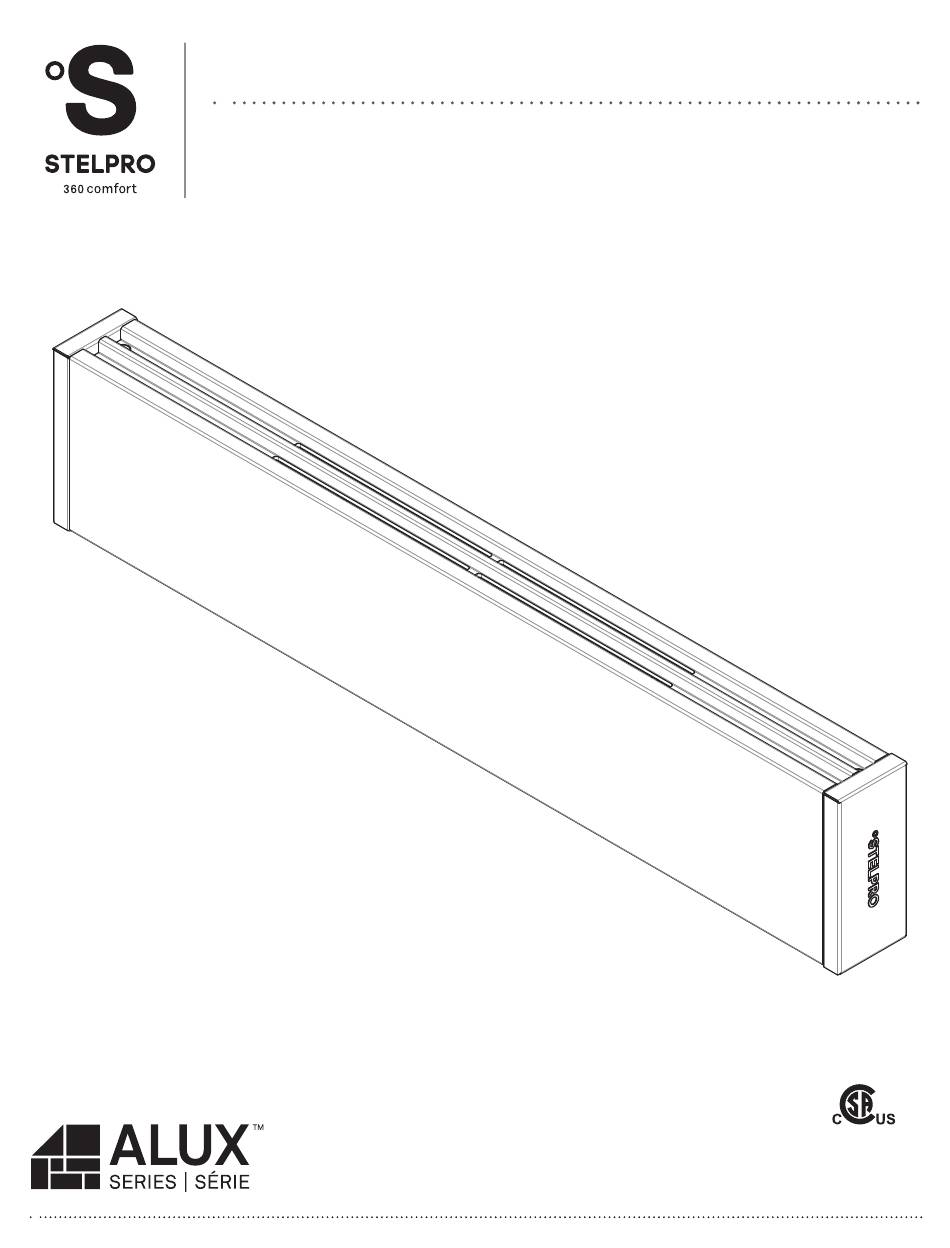

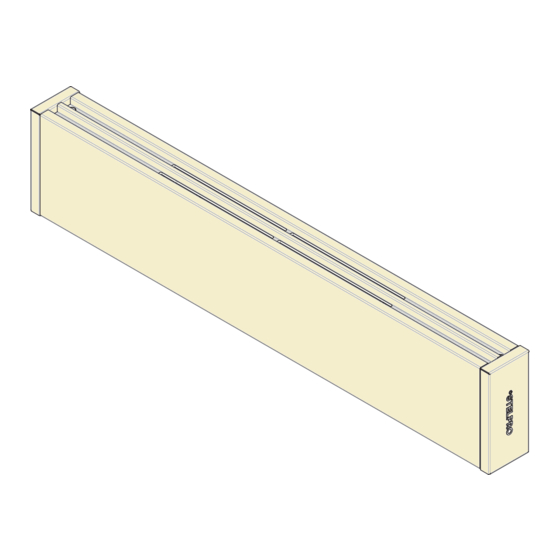

- Page 1 USER’S GUIDE AALUX1 SERIES ALUMINUM MINI ARCHITECTURAL BASEBOARD REPLACEMENT COMPONENT LIST INCLUDED This unit complies with the CSA and UL standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSAALUX10522...
- Page 3 If needed, refer to a specialist who will be able to calculate these heat losses and optimize the required capacity, or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one.
- Page 4 = 2 (240 V) 3 (347 V) 5 (480 V) 6 (600 V) 7 (277 V) 8 (208 V) For a complete model list, consult our online product catalog at www.stelpro.com TECHNICAL DRAWINGS 7/8" 1 1/2" 1" 22.2mm 38mm 25.7mm...
- Page 5 INSTALLATION, OPERATION & MAINTENANCE INSTALLATION CAUTION – HIGH TEMPERATURE, KEEP Keep drapes at a distance of at least 6 inches (15 cm) from unit. ELEC TRI CAL CORDS, DRAPES, AND Do not to install unit against combustible low-density cellulose fiberboard surfaces or below an electrical convenience receptacle.
- Page 6 REPLACEMENT COMPONENT LIST REPLACEMENT COMPONENT LIST REF. # PART # DESCRIPTION PROT-YYY LINEAR THERMAL PROTECTION (AUTO.) EA0300-06-*** ELEMENT 300 W (600 mm) EA0450-09-*** ELEMENT 450 W (900 mm) EA0600-12-*** ELEMENT 600 W (1200 mm) EA0750-15-*** ELEMENT 750 W (1500 mm) EA0900-18-*** ELEMENT 900 W (1800 mm) EA1050-21-***...
- Page 7 Moreover, it does not cover the cost of disconnection, transport, and installation. The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of Stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period.
