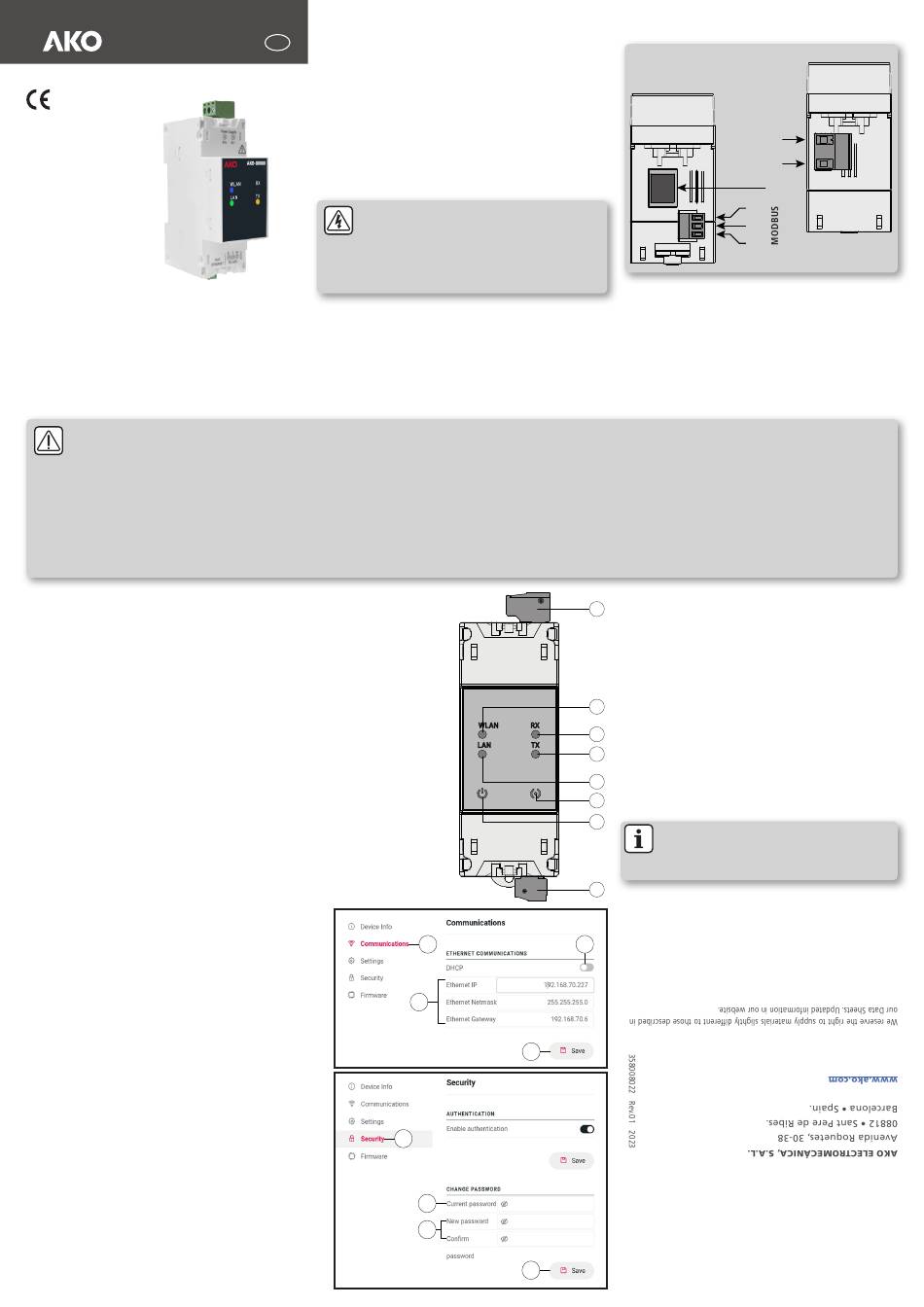

AKO -80080 V2 Instructions

8008H022 Ed. 02
Instructions
AKO-80080 V2

Description

The AKO-80080 V2 is a gateway designed to convert the physical environment (RS-485) to Ethernet and/or Wi-Fi. The equipment has a web server from which the user can
fully adjust the equipment's settings.

Warnings

-Using the equipment while failing to respect the manufacturer's instructions may alter the apparatus' safety requirements. ng the equipment while failing to respect the manufacturer's instructions may alter the apparatus' safety requirements.
-The equipment should be installed in a place protected from vibrations, water and corrosive gases, where the ambient temperature does not exceed the value -The equipment should be installed in a place protected from vibrations, water and corrosive gases, where the ambient temperature does not exceed the value
indicated in the technical data. indicated in the technical data.
-To ensure the equipment is used safely, it is essential that the people handling it follow the safety measures set out in the regulations of the countries where it is being -To ensure the equipment is used safely, it is essential that the people handling it follow the safety measures set out in the regulations of the countries where it is being
used, wearing any necessary personal protective equipment (approved rubber gloves, facial protection and fireproof clothing) to prevent injuries caused by discharge or used, wearing any necessary personal protective equipment (approved rubber gloves, facial protection and fireproof clothing) to prevent injuries caused by discharge or
electric arc owing to exposure to conductors with a current, and observing the different warnings given in this instruction manual. electric arc owing to exposure to conductors with a current, and observing the different warnings given in this instruction manual.
-Before carrying out any maintenance, repair or handling tasks involving any of the equipment's connections, the apparatus should be disconnected from all power sup- -Before carrying out any maintenance, repair or handling tasks involving any of the equipment's connections, the apparatus should be disconnected from all power sup-
plies, including the unit's own power supply. When it is suspected that the equipment has malfunctioned, please contact the Post-Sale Servic plies, including the unit's own power supply. When it is suspected that the equipment has malfunctioned, please contact the Post-Sale Service.

Operation

Access settings

To set-up the AKO-80040 V2 you must connect to it using a computer or mobile
device (smartphone or tablet):
• Ensure the device is powered.
• Connect to the device's WiFi network:
Name: AKO-80080V2_(last 4 digits of the serial number)
Password: Last 8 digits of the device's serial number.
• Open a web browser and enter the following IP address in the address bar:
192.168.222.1.
• Enter the following access information:
Name: admin
Password: admin

Assign an IP

We recommend you assign a fixed IP to the AKO-80080
V2 converter. To do so:
• Access the "Communications" section (A).
• Disable the DHCP function (B).
• Fill in the sections "Ethernet IP" (IP address), "Ether-
net Netmask" and "Ethernet gateway" with the cor-
responding information (C). If you have any questions,
contact your system manager.
• Press the "Save" button (D) to save your changes.

Change password

For safety reasons, we recommend changing the settings
access password:
• Access the "Security" section (E).
• Enter the current password ("admin" by default) (F).
• Enter the new password twice (G).
• Press the "Save" button (H) to save your changes..

Installation

en
The equipment must be installed inside an electrical panel
or wraparound, with DIN rail fixing (IEC 60715).
The equipment must be connected to a protected power
supply circuit with Class M or gL-type fuses (IEC 60269),
comprised between 1 and 2 A. It must be equipped with a
magnetothermic switch or equivalent device to disconnect
the equipment from the power supply network.
The power supply circuit must be connected using a cable
with a minimum cross-section of 1 mm
With the equipment connected, the terminals,
opening covers and removing components may
provide access to parts that are hazardous to
touch. The equipment must not be used until it
has been fully installed.
A
C
E
F
G

Wiring

.
2
1. Power strip: 100-240 VAC / 50 - 60 Hz.
1
2. WLAN indicator (Blue): Indicates that the WiFi con-
nection is active.
3. RX indicator (Orange): Indicates data frames are
received.
4. TX indicator (Orange): Indicates data frames are
sent.
2 5. LAN indicator (Green): Indicates that the Ethernet
Connection is active.
3
6. Alarm indicator (Red): Failure in receiving data
frames.
4
7. Power indicator (White): Indicates that the equip-
5
ment is powered.
6
8. MODBUS communication strip.
7
If the power (7) and alarm (6) indicators flash
quickly and simultaneously, the device is be-
ing updated.
8
B
D
H
100 - 264 V~
50 - 60 Hz
Ethernet
Tr+
GND
Tr-
