Summary of Contents for QTX Light 153.110

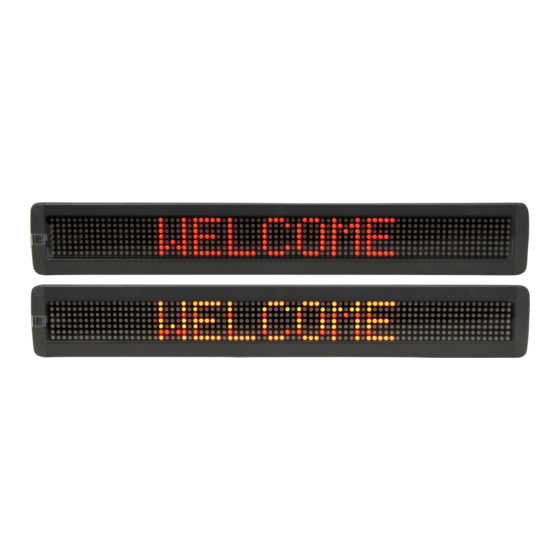

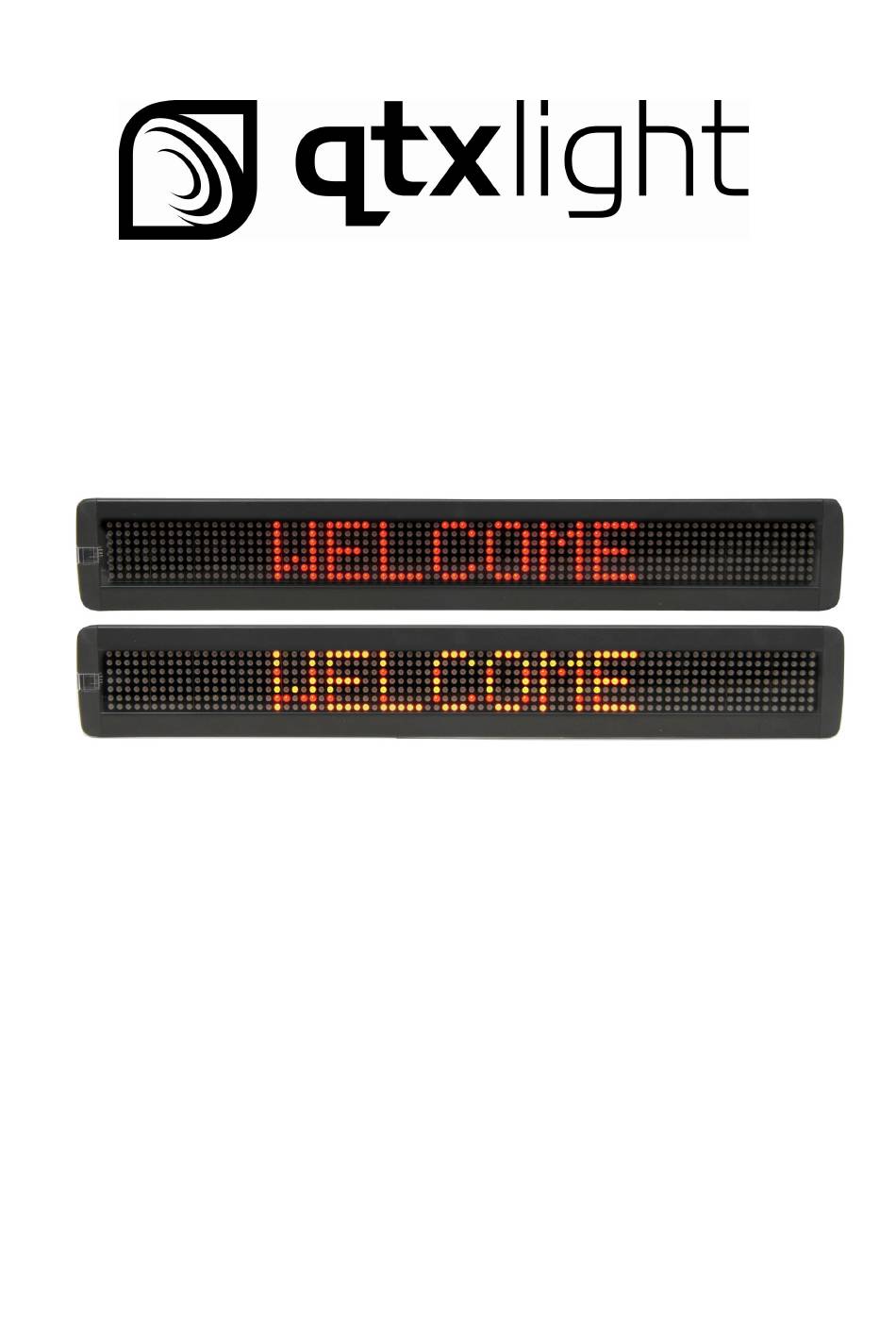

- Page 1 Moving Message Display User Manual Item Ref: 153.110, 153.111, 153.112, 153.114 Version 2.0...
-
Page 2: General Information
1: General Information Thank you for purchasing the QTX Light moving message display. This manual will show you how to program and operate your device using the supplied hand-held remote control. Versions: 153.110: 7 x 80 RED 153.111: 7 x 80 Multi colour 153.112: 7 x 120 RED... -
Page 3: Basic Sign Operation
2: Basic Sign Operation When you connect sign’s power supply, it will start up automatically. On the other hand, in order to turn the sign off, you can unplug the power supply or use the remote control. The remote control has primary functions (letters and numbers printed on the buttons) and secondary functions (highlighted just above). -
Page 4: Button Explanation
2.1 Button Explanation The first part of this chapter explains what each primary function (printed on the button) does and the meaning for each. Item Description Takes you back to the previous option or to escape editing and run the program Enter the Edit Program Mode. - Page 5 Appendix 1) Select the display speed of the message. (see Section 3.2 & Appendix 1) Select graphic option, Use to Make, Edit or use a current Graphic already stored in the Memory (see Section 3.5) Select a programmed animation in the message. (see Section 3.2 & Appendix 1) Select beep sound in the message.
- Page 6 NOTE: You can change the Font Style, Speed, Pause time and Colour by simply pressing ALT and the selected option before you type you message EG: [CYCLIC][5x11][GREEN][PAUSE1]WELCOME[CYCLIC] To make words display in different frames or one after the other press ENT to display type as follows: [CYCLIC][5x11][GREEN]WELCOME[CYCLIC][5x11][RED]TO[CYCLIC]SHOP NAME[CYCLIC]...
- Page 7 3.3 Changing the password: Step Keys to press Display Explanation PROG PASSWORD:*** Begin the edit program mode 0 0 0 PASSWORD:*** Default Password “000” OPEN:?? Enter into editing mode The first two digit file number (01-99)are allowed for naming message files[CYCLIC] 01 ENT [CYCLIC] Is the default method of display code which...
- Page 8 3.5 Making Custom Graphics: You can make your own style graphics to suit your needs by selecting individual pixels and adding them within a sequence. Step Keys to press Display Explanation PROG PASSWORD:*** Begin the edit program mode 0 0 0 PASSWORD:*** Default Password “000”...
- Page 9 Appendix 1: Function DISPLAY Meaning [CYCLIC] Random effect [IMMED] Immediate [OPEN←] Slides in from Right [OPEN→] Open from Left [OPEN<>] Open from Center [OPEN><] Open to Center [COVER<>] Cover from Center [COVER←] Cover from Right [COVER→] Cover to Left [COVER><] Cover to Center [SCROLL↑] Scroll Up...
- Page 10 [GRAPH C] [GRAPH D] [GRAPH E] [GRAPH F] [GRAPH G] [GRAPH H] [GRAPH I] City [GRAPH J] [GRAPH K] Ship [GRAPH L] Telephone [GRAPH M] Birds [GRAPH N] Ship [GRAPH O] Swim [GRAPH P] [ANIM1] Merry X'Mas [ANIM2] Happy New Year [ANIM3] 4th July [ANIM4]...
-
Page 11: Troubleshooting
Check you have information in the file RUN ?? Memory loss on the Sign Replace the internal memory battery (CR2032) If the above does not help you then contact your local dealer. COPYRIGHT PROTECTED by QTX Light Ltd UK WWW.QTXLIGHT.COM...
