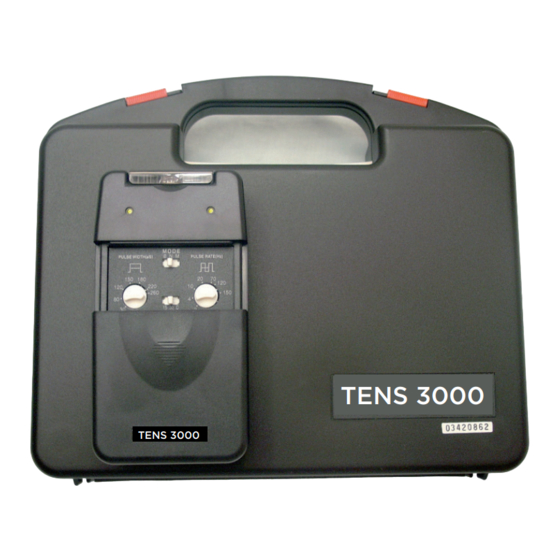

Tens 3000
INSTRUCTION MANUAL
TENS 3000
TENS 3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tens 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Richmar Tens 3000

Summary of Contents for Richmar Tens 3000

  • Page 1 Tens 3000 INSTRUCTION MANUAL TENS 3000 TENS 3000...

  • Page 2: Table Of Contents

    1.1 General Description This user manual is published by Richmar. 1.2 Medical Background Richmar does not guarantee its contents and reserves the 1.3 Indication for Use right to improve and amend it at any time without prior notice. Amendments may however be published in new 2.

  • Page 3: General Information

    Stimulations (TENS). TENS is intended to be used to relieve pain. The TENS unit sends comfortable impulses through the skin that The TENS 3000 is a battery operated pulse generator that sends stimulate the nerve (or nerves) in the treatment area. In many cases,...

  • Page 4: Safety Information

    2.2 Warnings, Cautions and Adverse Reactions 2. SAFETY INFORMATION WARNINGS: Read instruction manual before operating. Be sure to comply with all “Contraindications”, Warnings”, “Cautions” and “Adverse reactions” in This device should be used only under the continued supervision the manual. Failure to follow instructions may cause harm to user or of a licensed physician or practitioner.
  • Page 5 16. NEVER use on the areas of the skin which lack normal sensation. 15. Effectiveness is highly dependent upon the patient and the 17. Apply the electrodes to clean, dry, and unbroken skin only. selection of therapy by a person qualified in the management of pain. 18.

  • Page 6: Presentation

    3. PRESENTATION ADVERSE REACTIONS: Skin irritation from the electrode gel and electrode burns are 3.1 Device Features potential adverse reactions. If skin irritation occurs, discontinue use and consult your physician. Note: Always use electrodes that are legally marketed and sold in the United States under 510K guidelines.

  • Page 7: Technical Information

    4.2 Technical Information 4.3 The Waveforms of the Stimulation Programs Channel Dual, isolated between channels Burst Power supply One 9 volt battery, (alkaline or nickel-cadmium rechargeable) 10 pulses per burst Operating 5°C to 40°C (41°F to 104°F) with a relative humidity of Conditions 30%-75%,atmospheric pressure from 700 to 1060 Hpa Storage...

  • Page 8: Instructions For Use

    5. INSTRUCTIONS FOR USE CAUTION: 5.1 Battery Before using the device for the first time, you are strongly advised to take careful note of the contraindications and safety measures 5.1.1 Check/Replace the Battery detailed at the beginning of this manual (on page 5-9 and throughout manual), as this powerful equipment is neither a toy nor a gadget! Over time, in order to ensure the functional safety of the device, changing the battery is...

  • Page 9: Adjusting The Controls

    5.3.1 Place Electrode on Skin 5.4 Adjusting the Controls Apply electrodes to the exact site 5.4.1 Slide Cover: indicated by your physician or therapist. Before applying electrodes, be sure the A slide-on panel cover covers the controls skin surface over which electrodes are for Pulse Width, Pulse Rate, Mode placed is thoroughly cleaned and dry.

  • Page 10: Turn On

    6. CLEANING AND CARE 5.4.4 Pulse Width Control This dial adjusts the length of time each 6.1 Tips for Skin Care electrical signal is applied through the skin, which controls the strength and sensation Follow these suggestions to avoid skin irritation, especially if you have of the stimulation.

  • Page 11: Cleaning Electrodes

    6.3 Cleaning Electrodes 7. TROUBLESHOOTING If your device does not seem to be operating correctly, refer to the chart Electrodes cannot be cleaned as they are made with a self- below to determine what may be wrong. Should none of these measures adhesive gel.

  • Page 12: Storage

    8. STORAGE 7 TROUBLESHOOTING CONT For prolonged pauses in treatment, store the device in a cool dry room and protect it against heat, sunshine and moisture and Stimulation is Improper electrode and Reposition electrode and applicator. ineffective applicator placement remove the battery to avoid battery leaking. unknown.

  • Page 13: Electromagnetic Compatibility (Emc) Tables

    10. ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES Guidance and manufacturer’s declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. Guidance and manufacturer’s declaration - electromagnetic emissions The customer or the user should assure that it is used in such an environment. The device is intended for use in the electromagnetic environment specified below.
  • Page 14 Immunity IEC 60501 Compliance Electromagnetic environment guidance Recommended separation distances between portable and mobile RF test test level level communications equipment and the device. Portable and mobile RF Communications The device is intended for use in an electromagnetic environment in which equipment should be used no closer to any radiated RF disturbances are controlled.

  • Page 15: Glossary Of Symbols

    12. WARRANTY 11. GLOSSARY OF SYMBOLS Please contact your dealer in case of a claim under the warranty. If you have to send the unit back to your provider, enclose a copy Attention: Read the operating instruction before use! Equipment of your receipt and state what the defect is.
  • Page 16 5. Return Labels or Call Tags can be issued by our customer service department to return merchandise. 6. Associated fees and return freight charges will apply. All returns of dropshipped items are subject to a restocking fee as well as inbound and outbound freight charges.
  • Page 17 Manufactured for: 3287.19.06.B ©2020 Compass Health Brands Corp.
