Siemens 6XV1875-5AH10 System Manual page 34

Technical data
3.1 Flexible connecting cables
Technical specifications
Materials
Degree of protection
Silicone-free
Halogen-free
UV resistant
Weight
Permitted ambient conditions
Ambient temperature
Mechanical data
Smallest bend radi‐
us
Number of bending cycles
Tensile strength
(1) The specified attenuation values relate only to the cable without connectors. For the assembled cable,
approximately 0.1 dB at 2.4 GHz and approximately 0.3 dB at 5 GHz must be added per plug-in connector.

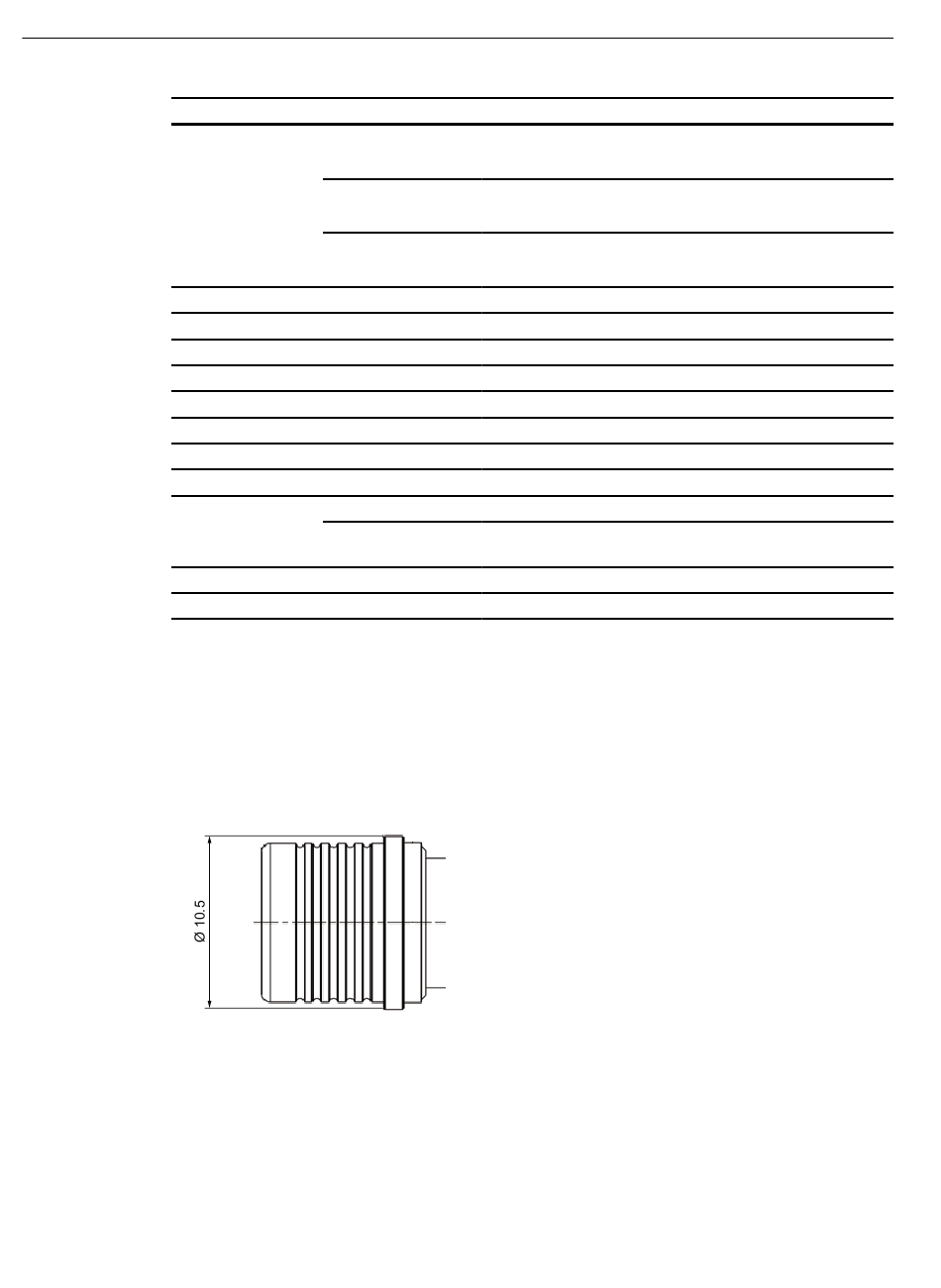

Dimension drawing
All dimensions except thread diameters are in millimeters. The thread diameter is specified in
inches.
Figure 3-8
34
Inner conductor
Dielectric
Cable jacket
when bending once
when bending more
than once
QMA male
• Silver-coated copper
• Diameter: 1.4 mm
• SPEX
• Diameter: 3.8 mm
• RADOX, black
• Diameter: 5.5 mm
IP67
yes
yes
resistant
47.8 kg/km
-30 °C ... +100 °C
2.5 cm
9.0 cm
50
30 ... 80 N
System Manual, 08/2021, C79000-G8976-C282-08
Passive network components IWLAN
