Reiner jetStamp graphic 970 Operating Manual
  1. Manuals
  2. Brands
  3. Reiner Manuals
  4. Office Equipment
  5. jetStamp graphic 970
  6. Operating manual

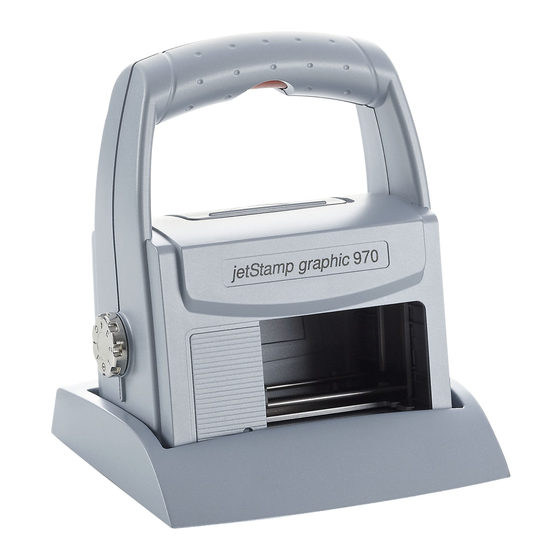

Reiner jetStamp graphic 970 Operating Manual

Hide thumbs Also See for jetStamp graphic 970:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the jetStamp graphic 970 and is the answer not in the manual?

Questions and answers

Related Manuals for Reiner jetStamp graphic 970

Summary of Contents for Reiner jetStamp graphic 970

  • Page 2: Table Of Contents

    4.4.2 Installing the softw are ................................21 4.5 Firmware update ........................... 22 V The PCset graphic software application 5.1 Get jetStamp graphic 970 ready for PCset graphic ........................... 23 5.2 Starting the software ........................... 24 5.3 Operating interface ........................... 24 5.3.1...
  • Page 3 5.6.4.3 Generate graphic ................................. 75 5.6.4.4 5.6.5 Graphic ................................76 Load graphic dialogue ................................. 76 5.6.5.1 Context menu graphic object ................................. 77 5.6.5.2 Generate graphic ................................. 77 5.6.5.3 5.7 External print triggering ........................... 78 ERNST REINER GmbH & Co. KG...
  • Page 4 ........................... 85 6.5 Replace seal ........................... 86 6.6 Clean housing ........................... 86 VII Recognising and removing interferences 7.1 jetStamp graphic 970 without function ........................... 87 7.2 Causes for uncharged batteries ........................... 88 7.3 Optical signals (LED) ........................... 88 7.4 Acoustic signals ...........................

  • Page 5: I Your Jetstamp Graphic 970

    Your jetStamp graphic 970 Your jetStamp graphic 970 ERNST REINER GmbH & Co. KG...

  • Page 6: Operating Elements

    PCset graphic Help 970 Operating elements ERNST REINER GmbH & Co. KG...
  • Page 7 Print carriage Print cartridge Basis station Locking mechanism print cartridge Seal Print cartridge contacts LED display Nozzles print cartridge Setting wheel Seal tip Green charging indicator Indicators of print position Micro USB socket Print area ERNST REINER GmbH & Co. KG...

  • Page 8: Setting Wheel

    The LED display marks the selected setting and flashes in case of warning messages. To set Functions (see "Functions"). To avoid malfunctions align the settings precisely with the LED display! To activate Bluetooth, turn the setting wheel to position Online/Bluetooth (see "Bluetooth"). ERNST REINER GmbH & Co. KG...

  • Page 9: Important Notes

    Important notes Important notes Before commissioning of the jetStamp graphic 970, always read the operating instructions and in particular the safety notes with care. This prevents insecurities in handling of the marking devices and connected safety risks to keep you safe and avoid damage to the device.

  • Page 10: Your Safety

    Warnings of dangers that may lead to property damage if not observed. You are asked to perform actions here. Notes and advice to make handling your jetStamp graphic 970 even easier. Notes on instruction videos. ERNST REINER GmbH & Co. KG...

  • Page 11: Safety Notes On Rechargeable Batteries

    Type usage Use only the supplied mains adapter or a PC USB port to charge the batteries. Only use rechargeable batteries (three each) type nickel metal hydride (REINER item number: 946 192 - 000) of build AA. Always replace all flat rechargeable batteries at once.

  • Page 12: Safety Notes

    Safety notes Possible blindness due to eye contact with ink. Do not point the nozzles of the jetStamp graphic 970 at people's faces! Possible tripping and damage to the device due to device lines lying freely in the room. Place the device lines so that they do not pose a danger source! Damage to the device at improper transport.

  • Page 13: Preparation And Commissioning

    Commissioning Execute test print Activate Bluetooth Install PCset graphic software Firmware update Commissioning Find a clip on our homepage www.reiner.de or on youtube. Rechargeable batteries Seal and pressure cartridge ERNST REINER GmbH & Co. KG...

  • Page 14: Rechargeable Batteries

    When the batteries are removed, the date, time and counter reading of the numbering machines are maintained. Open battery compartment Place the textile tape evenly over the compartment. The textile tape makes it easier to remove the batteries. ERNST REINER GmbH & Co. KG...
  • Page 15 Preparation and commissioning Ensure correct polarity and insert batteries. Close battery compartment ERNST REINER GmbH & Co. KG...

  • Page 16: Charging Rechargeable Batteries

    Connect the Micro USB socket of the device via the USB cable to the mains adapter and connect the mains adapter to the mains. Green charging indicator lights up. Charging is complete when the charging indicator is off. ERNST REINER GmbH & Co. KG...

  • Page 17: Seal And Pressure Cartridge

    Press the seal slightly down until it snaps into the holder. 4.1.2.2 Inserting the print cartridge Damage to health caused by ingestion of ink. Do not swallow! Keep the print cartridge out of the reach of children! Insert print cartridge Fig. ERNST REINER GmbH & Co. KG...
  • Page 18 Close the print cartridge flap Push the trigger button The print carriage moves to the home position. Return jetStamp graphic 970 to the basis station to prevent drying of the ink. Observe acoustic signal of the jetStamp graphic 970 (see "Acoustic Signals").

  • Page 19: Execute Test Print

    970 at people's faces! Execute test print Fig. The jetStamp graphic 970 is delivered ex works with 4 pre-programmed sample print images. Set setting wheel to position 1. Place the device on a flat surface to be printed.

  • Page 20: Activate Bluetooth

    If Bluetooth is active, the battery runtime reduces since Bluetooth is active in standby mode as well. To activate Bluetooth at the device, the setting wheel must be turned to position Online/Bluetooth To establish the Bluetooth connection with the device, follow the instructions "Establish Bluetooth connection". ERNST REINER GmbH & Co. KG...

  • Page 21: Install Pcset Graphic Software

    Administrator rights on the PC are required for the installation. Plug the USB stick supplied with the device into the USB port of your PC. Start the file "Setup_PCsetgraphic.exe". Follow the instructions of the installation program. ERNST REINER GmbH & Co. KG...

  • Page 22: Firmware Update

    970 to the PCset graphic. The print images can be damaged during the Firmware update. Ensure that the PCset graphic is installed on your PC but not opened before the firmware update is started. While the firmware update is being installed, the jetStamp graphic 970 must not be switched off.

  • Page 23: The Pcset Graphic Software Application

    The PCset graphic software application The PCset graphic software application Get jetStamp graphic 970 ready for PCset graphic Starting the software Operator interface Establishing Bluetooth connection Example workflow: Generating the print image Objects settings External print triggering Supported REINER devices...

  • Page 24: Starting The Software

    PCset graphic Help 970 The PC recognises the jetStamp graphic 970 as a new USB device. The device driver software is installed automatically. When the device is connected to the PC, the batteries are charged via the USB port. Starting the software Double-click the REINER PCset graphic icon The PCset graphic software is started.

  • Page 25: Menu Bar

    Object position [object size] Charge indicator Online/offline (connected device with serial number) 5.3.1 Menu bar In addition to th4e functions in the tool bar , you can find a menu bar in the REINER PCset application. ERNST REINER GmbH & Co. KG...

  • Page 26: File

    This function is only available if there is no USB connection. Last opened Displays the last opened print images. Exit Exits the PCset graphic. 5.3.1.2 Edit Function Description The last actions performed are undone. Undo Delete Deletes selected objects. ERNST REINER GmbH & Co. KG...

  • Page 27: View

    50%, 100%, 200% Display lock in toolbar Show or hide device security button. REINER 940 Operating interface REINER 940 appears. jetStamp graphic 970 Operating interface jetStamp graphic 970 appears jetStamp 1025 Operating interface JetStamp 1025 appears. 5.3.1.4 Presettings Function Description Text Settings for text objects can be configured.

  • Page 28: Toolbar

    Info Release notes for the software. If the jetStamp graphic 970 is connected, information on model, serial number and firmware version are also displayed. An internet link to the REINER website will be displayed to download the latest software if the software or the jetStamp 970 is not on the latest version.

  • Page 29: Grid

    Hold down the left mouse button and draw a selection frame along the desired area. Release left mouse button. All objects and backgrounds contained in the frame are selected and can be cut, copied or deleted. ERNST REINER GmbH & Co. KG...

  • Page 30: Objects

    The device security locks the print and protects the print data from misuse. Devices without a current firmware version do not support device security. You can download the latest firmware version from www.reiner.de in the section "Downloads - Software". The device safety can be set in the menu bar by clicking the tab "Extras...
  • Page 31 Device safety is activated. Print images cannot be transmitted and printed without entering a password. Device safety is activated. Print images can be transmitted and printed without entering a password. Set password Disable password protection Forgotten password ERNST REINER GmbH & Co. KG...

  • Page 32: Set Passw Ord

    To ensure the safety of the device deactivate in the menu bar the tabSelect "Extras" and "Device safety Click on Set password". Click on "Deactivate password protection". In the toolbar the symbol changes from ERNST REINER GmbH & Co. KG...

  • Page 33: Forgotten Passw Ord

    The PCset graphic software application 5.3.4.1.3 Forgotten passw ord When resetting the password, the jetStamp graphic 970 is reset to the factory setting. All saved print images are deleted. The password can only be reset when the jetStamp graphic 970 has no device error.

  • Page 34: Device Settings

    Device settings will only become active when they have been transmitted to the jetStamp graphic 970. Click on the symbol. The device settings are opened. Printer settings Signals Functions Font 5.3.5.1 Print settings Print sequence ERNST REINER GmbH & Co. KG...

  • Page 35: Print Sequence

    Print single line (Setting wheel) The selected line is printed once per print trigger. Print lines in sequence All lines are printed in ascending order, starting with the line set on (1,2,3,4) the setting wheel (1, 2, 3 or 4). ERNST REINER GmbH & Co. KG...

  • Page 36: Alignment

    PCset graphic Help 970 5.3.5.1.2 Alignment Function Description 0° rotated 180° rotated The 180° rotation is not displayed in the PCset. The device takes the setting into account when printing. ERNST REINER GmbH & Co. KG...

  • Page 37: Print Intensity

    The PCset graphic software application 5.3.5.1.3 Print intensity Function Description Normal Default ink consumption. Economical Reduction of ink consumption. ERNST REINER GmbH & Co. KG...

  • Page 38: Print Start

    5.3.5.1.4 Print start Function Description Print trigger Imprint is printed as soon as the trigger button is pressed. External print triggering Imprint is printed as soon as a print signal is sent via the USB cable. ERNST REINER GmbH & Co. KG...

  • Page 39: Signals

    The PCset graphic software application 5.3.5.2 Signals Activation or deactivation of acoustic signals for various events (refer to "Acoustic signals"). "Function performed": see tab "Functions". "Removable errors": see "Acoustic signals". ERNST REINER GmbH & Co. KG...

  • Page 40: Functions

    PCset graphic Help 970 5.3.5.3 Functions Test print Repeat last imprint Continue numbering machines Reverse numbering machines Reset numbering machines to default ERNST REINER GmbH & Co. KG...

  • Page 41: Test Print

    The printing starts with print image no. 1 and is switched to the next print image with each re-triggering. For the jetStamp graphic 970, "Test print" is carried out as follows: Turn setting wheel to position F. Print the 4 print images one after another starting with the last one used.

  • Page 42: Repeat Last Imprint

    With the function "Repeat last imprint" the last printed imprint can be repeated. The numbering machines are not switched forward. The time is continuously updated. For the jetStamp graphic 970, "Repeat last imprint" is carried out as follows: Turn setting wheel to position F. Push the trigger button.

  • Page 43: Continue Numbering Machines

    5.3.5.3.3 Continue numbering machines With the function "Continue numbering machines", the numbering machine can be switched forward manually. For the jetStamp graphic 970, "Continue numbering machines" is carried out as follows: Turn setting wheel to position F. Push the trigger button.

  • Page 44: Reverse Numbering Machines

    With the function: "Reverse numbering machines" the numbers can be switched back manually in a quick and easy way. For the jetStamp graphic 970, "Reverse numbering machines" is carried out as follows: Turn setting wheel to position F. Push the trigger button.

  • Page 45: Reset Numbering Machines To Default

    The original value is the minimum value for numbering machines that are counting up and the maximum value for numbering machines that are counting down. For the jetStamp graphic 970, "Reset numbering machines to default" is carried out as follows: Turn setting wheel to position F.

  • Page 46: Font

    With "Font 1" and "Font 2", fonts can be stored for the objects date/time and numbering machine. Month abbreviations can be adjusted individually. The font configuration window also appears in the menu bar. Here, select the "File" tab and click on "Device settings - Font". ERNST REINER GmbH & Co. KG...

  • Page 47: Status Indicators

    Device security is activated Print images cannot be transferred and printed without entering a password. Device security is activated Print images can be transferred and printed without entering a password. ERNST REINER GmbH & Co. KG...
  • Page 48 Device (with serial number) is Online Bluetooth (S/N) connected via Bluetooth - Device not switched on Offline - USB cable not plugged in - Rechargeable battery empty Here you will find notes for Device messages troubleshooting ERNST REINER GmbH & Co. KG...

  • Page 49: Device Messages

    Print cartridge almost empty Insert new print cartridge Please insert a new print Print cartridge almost empty cartridge Place the jetStamp graphic 970 Put the device back into the Print cartridges can dry out when into the basis station not in use base station ERNST REINER GmbH &...

  • Page 50: Establishing Bluetooth Connection

    The "New version" internet link leads to the REINER website where you can download the latest version. Establishing Bluetooth connection To establish a Bluetooth connection, activate Bluetooth (see "Activate Bluetooth“). Open PCset graphic. ERNST REINER GmbH & Co. KG...
  • Page 51 The PCset graphic software application In the menu bar select the "File" tab and click "Search for REINER Bluetooth device". An automatic search is started. All devices found, as well as all devices that have already been connected to the PCset graphic, are displayed with model and serial number.
  • Page 52 PCset graphic Help 970 To cancel the permanent connection, click the "Delete pre-set device" button in the Bluetooth dialogue or establish a connection with another device. ERNST REINER GmbH & Co. KG...

  • Page 53: Example Workflow: Generating The Print Image

    The factory pre-installed print images can be uploaded to the software in advance and saved as XML files ("Menu commands Toolbar"). Configuring the print image Transfer the print image to the jetStamp graphic 970 Printing the print image Number of imprints 5.5.1...

  • Page 54: Transfer The Print Image To The Jetstamp Graphic 970

    PCset graphic Help 970 For more commands and objects see "Toolbar" and "Objects". 5.5.2 Transfer the print image to the jetStamp graphic 970 Click on the transfer icon Confirm the following dialogue window with Yes. ERNST REINER GmbH & Co. KG...
  • Page 55 The PCset graphic software application If the transfer was successful, the following message appears after a few seconds. Confirm the message with OK. The print image is stored in the jetStamp graphic 970 and can be printed. ERNST REINER GmbH & Co. KG...

  • Page 56: Printing The Print Image

    Place the device on a flat surface to be printed. Push the trigger button The example print image 1 is printed. Return jetStamp graphic 970 to the basis station to prevent drying of the ink. Observe acoustic signal of the jetStamp graphic 970 (see "Acoustic Signals").

  • Page 57: Number Of Imprints

    The PCset graphic software application 5.5.4 Number of imprints The number of possible imprints with a full print cartridge is displayed by positioning the mouse pointer on the print image number. ERNST REINER GmbH & Co. KG...

  • Page 58: Objects Settings

    If the grid is enabled, the font size is adjusted. Example: If a grid of 4 lines is set, the text object has the height of one line. Presettings Context menu text object Generate graphic ERNST REINER GmbH & Co. KG...

  • Page 59: Presettings

    Context menu text object If a text object is inserted ("Objects"), the configuration corresponds to the default settings (refer to "Presettings"). The context menu can be used to individually set each text object deviating from this. ERNST REINER GmbH & Co. KG...
  • Page 60 Note: the text cannot be edited anymore after conversion. Delete object Deletes the object. Press Ctrl+Enter to jump to the next line. Enter or double-click fixes the object, which then can no longer be edited. ERNST REINER GmbH & Co. KG...

  • Page 61: Generate Graphic

    A maximum of five date/time objects can be placed. The daylight saving time for Europe is preset at the factory and can be changed directly in the PCset graphic software under Menu - Extras. Presettings Context menu date/time object ERNST REINER GmbH & Co. KG...

  • Page 62: Presettings

    Changed presettings apply to all future date/time objects. In the menu bar select the "Presettings" tab and click "Date/time". The configuration window for "Date and time" opens as shown in the following figure: Tab date and time Font ERNST REINER GmbH & Co. KG...

  • Page 63: Tab Date And Time

    Enter or select offset, refer to example. Example for time offset: Inactive offset: Example: for a shelf life of 1 year, the entry is made with +0365: ERNST REINER GmbH & Co. KG...

  • Page 64: Font

    Changed fonts affect all future objects. "Font 1" and "Font 2" are configurable in the menu bar by clicking the tab: "File Device settings Font" or in the toolbar via the button (see "Font"). ERNST REINER GmbH & Co. KG...

  • Page 65: Context Menu Date/Time Object

    ("Presettings"). The context menu can be used to individually set each date/clock time object deviating from this. To open the context menu, right-click the desired date/time object. The context menu opens as in the following figure. ERNST REINER GmbH & Co. KG...

  • Page 66: Numbering Machine

    Select the tab format and click "Numbering machine" in the menu bar The configuration window for numbering machines appears. The configuration window for numbering machines is divided into three sections: - Settings - Number circle - Font ERNST REINER GmbH & Co. KG...
  • Page 67 The PCset graphic software application Settings Number circle Font ERNST REINER GmbH & Co. KG...

  • Page 68: Settings

    Changed fonts affect all future objects. "Font 1" and "Font 2" are configurable in the menu bar by clicking the tab: "File – Device settings - Font" or configurable in the toolbar via the button (see "Font"). ERNST REINER GmbH & Co. KG...

  • Page 69: Context Menu Numbering Machine Object

    ("Presettings"). The context menu can be used to individually set each numbering machine object deviating from this. To open the context menu, right-click the desired numbering machine object. The context menu opens as in the following figure. ERNST REINER GmbH & Co. KG...
  • Page 70 Settings for the number circle can only be made here when the selected numbering machine is linked to the dedicated number circle. Delete object Deletes the object. ERNST REINER GmbH & Co. KG...

  • Page 71: Barcode

    Presettings Global presettings can be set in the menu bar - OR - Settings of already-inserted barcode objects can be called via the right mouse button "Barcode Format". The configuration window for barcode appears. ERNST REINER GmbH & Co. KG...
  • Page 72 Indicates the check figure additionally in plain text. To be able to use this option, you need to activate display plain text. The check figure is the last figure or position of the barcode information. ERNST REINER GmbH & Co. KG...
  • Page 73 The module height and width can differ. Module ratio Ratio of wide to narrow element in calculation of the code length. Module ratio Start and stop characters for the barcode type Codabar. (2/5 matrix) May contain letters A - D. ERNST REINER GmbH & Co. KG...

  • Page 74: Sequential Numbering/Dating

    The context menu opens (refer to "Date/time"). Make the desired settings and confirm with OK. To save the settings made, click OK. The red dash below the editing field determines the inserted position of the date/time and numbering machine object. ERNST REINER GmbH & Co. KG...

  • Page 75: Context Menu Barcode Object

    Text and barcode objects can be converted into graphics. Graphics are fixed and can no longer be moved. Limited editing is possible via the additional function "Selection". Click the object with the right mouse button. Select "Generate graphic". The object has been converted to a graphic. ERNST REINER GmbH & Co. KG...

  • Page 76: Graphic

    300 dpi so that they fit 1:1 into the print image. For a distortion-free printout in optimal quality, a graphic should not exceed the maximum height of 160 pixels and the maximum width of 768 pixels. ERNST REINER GmbH & Co. KG...

  • Page 77: Context Menu Graphic Object

    Text and barcode objects can be converted into graphics. Graphics are fixed and can no longer be moved. Limited editing is possible via the additional function "Selection". Click the object with the right mouse button. Select "Generate graphic". The object has been converted to a graphic. ERNST REINER GmbH & Co. KG...

  • Page 78: External Print Triggering

    Triggering via USB interface Triggering via external switch 5.7.1 Triggering via USB interface Connect the REINER USB trigger cable with the micro USB socket Set the setting wheel to the desired print image. Close contact. The desired print image is printed.

  • Page 79: Maintenance

    Maintenance Maintenance Changing the print cartridge Cleaning the contacts of the print cartridge Clean nozzles Clean seal Replace seal Clean housing ERNST REINER GmbH & Co. KG...

  • Page 80: Changing The Print Cartridge

    Do not swallow! Keep the print cartridge out of the reach of children! Changing the print cartridge Fig. Place the jetStamp graphic 970 in the basis station Set the setting wheel to position 1. Keep the trigger button pressed and take the device out of the basis station.

  • Page 81: Cleaning The Contacts Of The Print Cartridge

    Close the print cartridge flap Push the trigger button The print carriage moves to the home position. Return jetStamp graphic 970 to the basis station to prevent drying of the ink. Observe acoustic signal of the jetStamp graphic 970 (see "Acoustic Signals").

  • Page 82: Clean Nozzles

    PCset graphic Help 970 In rare cases, impurities on the contacts of the print cartridge can cause incorrect printing results. Place the jetStamp graphic 970 in the basis station Set the setting wheel to position 1. Keep the trigger button...

  • Page 83: Automatic Nozzle Cleaning

    6.3.1 Automatic nozzle cleaning Possible blindness due to eye contact with ink. Do not point the nozzles of the jetStamp graphic 970 at people's faces! Trigger automatic cleaning mechanism Fig. To clean the nozzles a small amount of ink is ejected.

  • Page 84: Manual Nozzle Cleaning

    We recommend the following measure if the automatic nozzle cleaning does not lead to the desired success: To dissolve the dried ink, press a soft cloth slightly soaked in ethanol (spirit) against the nozzles for about three seconds. Dab off dissolved ink and wipe the nozzles dry. ERNST REINER GmbH & Co. KG...

  • Page 85: Clean Seal

    Clean seal Fig. The seal is located in the basis station Dab dry the seal with a soft cloth. Clean the seal at regular intervals. Replace if heavily soiled or damaged (refer to "Replace seal"). ERNST REINER GmbH & Co. KG...

  • Page 86: Replace Seal

    PCset graphic Help 970 Replace seal Find a clip on our homepage www.reiner.de or on youtube. Replace seal Fig. Different seals are required depending on the type of ink used. - Inkjet print cartridge P3-S-BK: use red seal - Inkjet print cartridge P3-MP3-BK: use blue seal Slightly press down the seal on the front edge.

  • Page 87: Recognising And Removing Interferences

    Optical signals (LED) Acoustic signals jetStamp graphic 970 without function Troubleshooting Fig. Disconnect the USB cable from the jetStamp graphic 970. Open battery compartment Remove the batteries. Wait about 3 seconds. Re-insert the batteries. Connect the micro USB socket of the device to the PC via the USB cable.

  • Page 88: Causes For Uncharged Batteries

    - Print cartridge not inserted correctly - Rechargeable Insert print battery empty cartridge correctly - No Charge battery battery/defective Inserting/replacing battery the battery - Print carriage movement blocked New print image - Print images were transfer deleted ERNST REINER GmbH & Co. KG...
  • Page 89 - Device is switched Switch on the device - Rechargeable battery empty Charge batteries - Battery defective Replace batteries - No rechargeable Insert batteries battery inserted Contact your - Device error specialist dealer or REINER Support ERNST REINER GmbH & Co. KG...

  • Page 90: Acoustic Signals

    30 seconds 3 sound Print cartridge empty Replace the print impulses cartridge 4 sound jetStamp graphic 970 not in basis Place the - The display appears after impulses station jetStamp graphic 30 seconds of non-use in 970 into the basis...

  • Page 91: Technical Data And Accessories

    Mod. = Model = Serial number = Quality control = jetStamp graphic 970 has the CE-mark according to the currently valid low-voltage and EMC directive. = jetStamp graphic 970 is in accordance with the following standards or standardised documents FCC 47 CFR Ch.1 Part 15 Bluetooth: FCC: R7TAMB2300.

  • Page 92: Technical Data

    3 x AA NiMH rechargeable batteries; chargeable via included mains adapter. Input: 100 - 240 VAC, 50 - 60 Hz, 0,3 A Output: 5 VDC 1 A Standby time per battery approx. 72 hours charge ERNST REINER GmbH & Co. KG...

  • Page 93: Transport And Disposal

    Order no.: 947 100-120, P3-MP3-BK for metal and plastic, black Order no.: 947 100-130, P3-MP4-BK for glass, metal and plastic, black Order no.: 947 100-140, P3-MP5-UV for metal and plastic, invisible (orange in UV light) For further accessories, see https://www.reiner.de ERNST REINER GmbH & Co. KG...

  • Page 94: Contact

    E-mail: customerservice@reiner.de © 2022 Ernst Reiner GmbH & Co. KG All rights reserved. Translation, reprint and other reproduction of these operating instructions, even in parts and no matter the form, shall require our express written consent. We reserve the right to make content changes to these operating instructions without notice.

  • Page 95: Operating Instructions

    Operating instructions Operating instructions Operating instructions EN ERNST REINER GmbH & Co. KG...

  • Page 96: Index

    Graphic 76 Print image transfer 54 Numbering machine 66 External print triggering 78 Text 58 Operating elements 6 - F - Operating interface 24 Menu bar 25 Objects 30 Firmware update 22 Toolbar 28 ERNST REINER GmbH & Co. KG...
  • Page 97 - P - PCset graphic software application Establishing Bluetooth connection 23 Example workflow: Generating the print image External print triggering 23 Get jetStamp graphic 970 ready for PCset graphic 23 Objects settings 23 Operator interface 23 Starting the software 23...
  • Page 98 .reiner.de...
