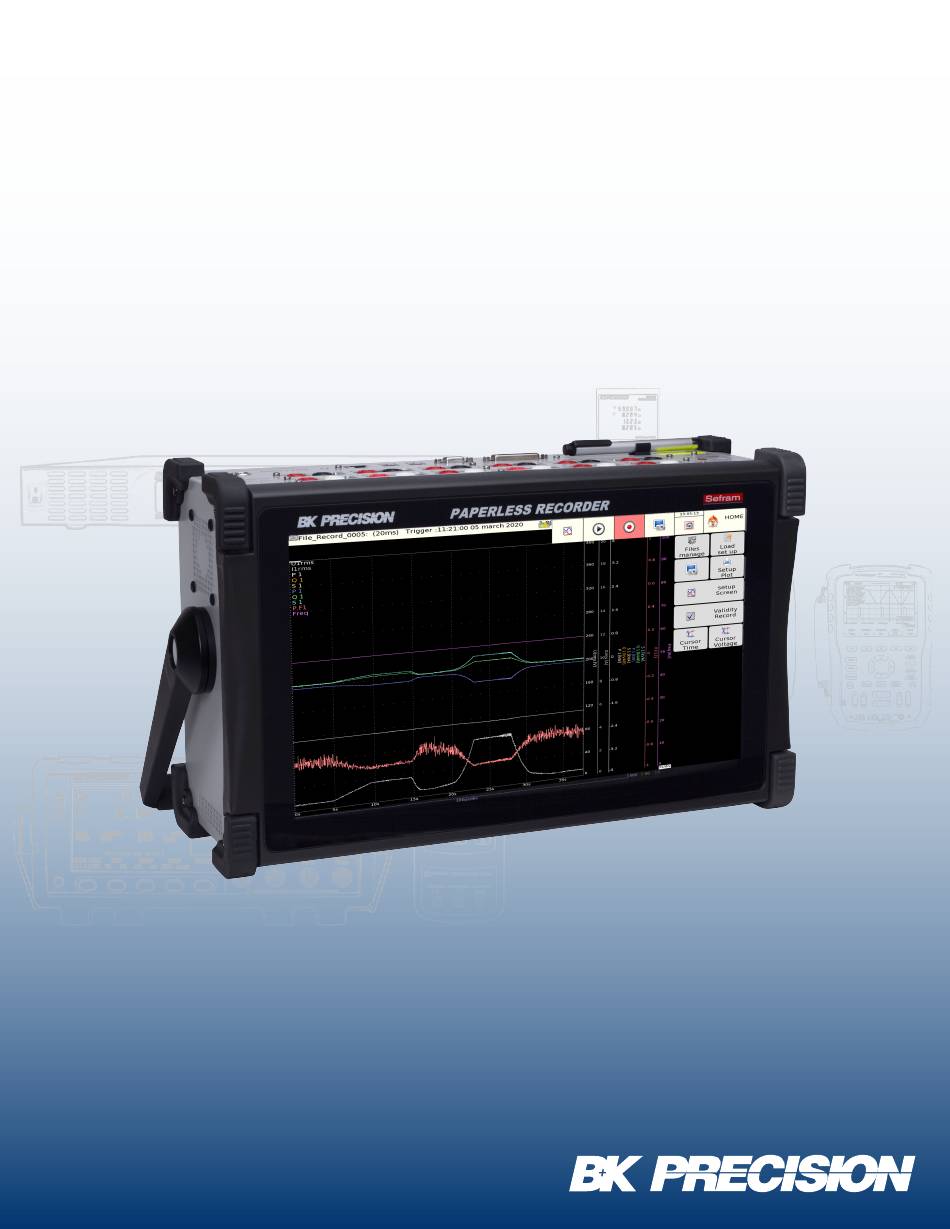

Page 1 User Manual DAS1700 High Speed Data Acquisition System bkprecision.com...
Page 2 Safety Summary The following safety precautions apply to both operating and maintenance personnel and must be followed during all phases of operation, service, and repair of this instrument. Before applying power to this instrument: • Read and understand the safety and operational information in this manual. •...
Page 3 Electrical Power This instrument is intended to be powered from a CATEGORY II mains power environment. The mains power should be 115 V RMS or 230 V RMS. Use only the power cord supplied with the instrument and ensure it is appropriate for your country of use.
Page 4 Do not operate instrument if damaged If the instrument is damaged, appears to be damaged, or if any liquid, chemical, or other material gets on or inside the instrument, remove the instrument’s power cord, remove the instrument from service, label it as not to be operated, and return the instrument to B&K Precision for repair.
Page 5 Do not substitute parts that are not approved by B&K Precision or modify this instrument. Return the instrument to B&K Precision for service and repair to ensure that safety and performance features are maintained. For continued safe use of the instrument •...
Page 6: Table Of Contents
Contents Important Information Particular Precaution Measures Security Instructions Presentation General Description Bar Graph Patterns Screen Keys Updating the Internal Software Setup and Precautions Power Turning On the Instrument Configuration at Start-Up Connection to the Measurement Networks 3.4.1 Connections: 3.4.2 Voltage Measurement 3.4.3 Temperature Measurement with a Thermocouple 3.4.4...
Page 7 Triggers Trigger with Combination Analog channel 5.1.1 Analog channel (only one threshold) 5.1.2 Combination Analog channel (several thresholds) 5.1.3 Threshold triggering 5.1.4 Parasites 5.1.5 Slope trigger 5.1.6 Trigger with Logical Channels Mathematical Calculations Definitions Types de calculations Memory Mode Setup and triggering of the data acquisition Sampling period Internal memory _ blocks Trigger position...
Page 8 11.3.2 LIN input parameters configuration 11.4 Incoming frames real-time viewer 11.5 CAN LIN analogue waveform conversion 11.5.1 Conversion parameters 11.5.2 Converted input parameters 11.6 CSV format recording 12 File Management 12.1 General 12.2 Managing the setup files 12.2.1 Saving setup files 12.2.2 Loading setup files 12.3...
Page 9 16.1.6 Counting record 16.1.7 Sampling 16.1.8 Bandwidth 16.1.9 Numeric filters 16.2 Isolated 500V inputs 16.2.1 General characteristics 16.2.2 Voltage recording 16.2.3 RMS recording 16.2.4 Derivative and integral record 16.2.5 Temperature record 16.2.6 Frequency record 16.2.7 Counting record 16.2.8 PWM record 16.2.9 Sampling 16.2.10...
Page 10 16.13.1 Security, Isolation Class, Installation Category 16.14 Miscellaneous 16.14.1 Internal saving battery 16.15 Accessories 16.15.1 Accessories provided with the appliance 16.15.2 Accessories and options 16.15.3 Consumable items 16.16 Battery option 16.17 IRIG board option 17 Appendix 17.1 Information about the caliber of the inputs 17.1.1 Inputs of isolated voltage type 17.1.2...
Page 11: Important Information
- Battery leakage - Improper use or improper connection • In case of a failure or maintenance, only a BK Precision servicer engineer should be allowed to operate. In this case, it is necessary to use spare parts by BK Precision.
Page 12: Presentation
16 logic channels. The DAS1700 can be configured with 6 boards maximum (72 channels max), universal isolated or isolated strain gauge, or non-isolated multiplexed. The DAS700 has not an integrated thermal printer and possesses just 1 board.
Page 13 - 2 terminals marked as “+” and “-” for the voltage input - 2 terminals marked as “I+” and “I-” for the PT100 input - 1 earth terminal connected to a ground For other input/output poles, see chapter ??. Figure 2.1 DAS1700 – DAS700 –DAS701...
Page 14 Presentation Figure 2.2 Description of the Screen Selection Description STATUS Acquisition mode, acquisition status or printing status. VALIDATION Selection of the channels to use. CHANNEL Name of the currently used channel . PARAMETERS Name of the modifiable parameters and their current values. PRINTING SCREEN Display for the recorder on screen.
Page 15: Bar Graph Patterns
Presentation 2.3 Bar Graph Patterns The bar graph, located in the screen’s left corner, has two different running mode depending on the number of board connected to the device. • Less than 3 board connected : All the channels are displayed •...
Page 16: Screen Keys
Presentation 2.4 Screen Keys USER MANUAL key: display of the instruction manual LOGIC CHANNELS key: configuration of the logic channels CONFIG key: general configuration of the appliance (language, date and time, alarm outputs, software updates…) CHANNEL »key: access to the parameters of each channels, access to the functions between channels VALIDITY key: selection of the channels for each acquisition ( screen, internal memory or file) SETUP ANALYZER key: configuration of the parameters for circuit analysis POWER ANALYSIS key: launching measurements of power, harmonics...
Page 17 Presentation REPLAY key: display on screen of the acquisitions on internal memory or file, measurement cursors, zoom, calculations Start/Stop key: launching of the data acquisition under the all MODES MODE : MEMORY key: configuration of the parameters of measurement record into internal memory MODE : FILE »key: configuration of the parameters of measurement record on file MODE : GO/NOGO key: configuration of the parameters of measurement record into internal memory under a template XY key: real time display on screen of the validated channels in XY mode...
Page 18: Updating The Internal Software
Presentation 2.5 Updating the Internal Software The internal software is regularly updated with its latest evolutions. These updates are available on our website. To update the software, copy the file provided onto an USB stick. Plug it on one of the USB ports at the rear of the appliance.
Page 19: Setup And Precautions
Setup and Precautions 3.1 Power The recorders work on normalized mains (See chapter Technical specifications). They are designed for indoor use. MAINS CONNECTION These instruments must be connected to the mains with the provided cord. SECURITY These instruments are security class I according to the classification CEI1010 (NF EN 61010) Security rules for electrical appliances for measurement, regulation and laboratory.
Page 20: Connection To The Measurement Networks
Setup and Precautions If the configuration has changed at the power-up, contact the after-sales service. If the initial configuration is wrong, you can start with the default configuration: You must then press several times the top right of the appliance at the start-up until the homepage shows up (at the place of the main Menu key under normal conditions).
Page 21: Gauge Strain Measurement
Setup and Precautions Do not use male banana plugs for welding: the soldered joint would alter the thermocouple effect. Non-isolated differential input module and Isolated strain gauge input module: The voltage produced by the thermocouple effect must be measured between the « + » and « - » poles of the inputs with wires on the screw terminal. To guarantee the right measurement, plug directly both ends of the thermocouple cord on to the input you want with respect for the polarity.
Page 22: Temperature Measurement With Pt100, Pt200, Pt500 And Pt1000
Setup and Precautions 3.4.5 Temperature measurement with PT100, PT200, PT500 and PT1000 Multiplexed Card The multiplexed card is compatible with PT100/PT200/PT500/PT1000, they must be connected on the « I+ » and « I- » terminals (The respective currents for every type of platinum resistors are 1mA, 0.5mA, 0.2mA and 0.1mA).
Page 23: Earth
Setup and Precautions 3.4.7 Earth For measuring very low voltage values, the problem of the parasite voltages induced by electromagnetic fields or ordinary mode voltages are all the more important than the selected sensitivity is high. Hence, it is important that the outer cables are correctly settled.
Page 24: Calibration Of The Offsets
Setup and Precautions 3.6 Calibration of the offsets You can easily calibrate the inputs of the recorder for the offsets of voltages and thermocouples. This will remove any offsets present on different channels. To do so: 1. Let the appliance work for 20 minutes (ambient temperature between 20 and 25 °C). 2.
Page 25: Keyboard Locking
Setup and Precautions 3.9 Keyboard locking You can also completely lock the recorder: no key will be available any more. 9. Press 10. At « Option », select « Modif. ». 11. At «Keypad locked », select «Modif. ». The keyboard will lock 5 seconds after pressing « Confirm ». All keys of the appliance will be locked. To unlock the recorder, you must push two or three times in a row on «Home ».
Page 26: Key Functions
Key Functions The chapter describes in details the effect of each key of the front side screen. These actions are also available with a mouse of an external PC-type keyboard (see chapter Presentation) The description of the keys and their actions is valid for each appliance. If not (specificities), the text will specify the type of appliance.
Page 27: User Manual " Key
Key Functions 4.4 « User manual » key This key gives you easy access to the user manual of the recorder. 4.5 « Power Analysis » key The circuit analysis option makes it possible to measure powers and harmonics. The measured values can be displayed in real time or recorded.
Page 28 Key Functions Selections: 1. Language: selection of the language of the appliance 2. Screen shut off: turning off the backlighting of the LCD screen, configuration of the delay 3. Date & Hours: date and hour of the appliance (for NTP, see §16.1.2) 4.
Page 29: Analogical Channels
Key Functions - Trigger: control through a combination of analogical or logic channels on several thresholds (See chapter Triggers) - On the record triggering: control through triggering of a data acquisition - Automatic add of markers in recordings In all cases, the contact is open if the condition is true. 9.
Page 30 Key Functions - selection of the type for thermocouple, compensation, unit For multiplexed non-isolated input module - voltage, intensity, temperature (thermocouple, platinum resistor) or meter - direct, RMS, derivative or integral - value of the shunt for intensity measurement - selection of the type for thermocouple, compensation, unit - PT100, PT 200, PT500, PT 1000 4-wire, 3-wire or 2-wire For isolated strain gauge input module - voltage, courant, thermocouple, gauge, PT100, PT1000 (2-wire or 4-wire)
Page 31: Functions Between Channels
Key Functions 12. Trigger T1: display of the position of the triggering threshold #1 on screen and paper 13. Trigger T2: same for the threshold #2 When the logarithm sensor option is selected the previous window lets appear new range of configurations: Maximum decade value Maximum in the ordinate axis Number of decade Ordinate axis’...
Page 32: Script Editor
Key Functions 4.8.1 Script editor Functions: Shortcut to add easily a basic mathematical function in the script Channels: Select in the list the channel name you want to add to the script Copy to: Copy the script and the configuration of the currently edited script to another mathematical channel Erase : Erase all the text of the currently...
Page 33 Key Functions For long scripts it will be better to use intermediate variables to ease the maintenance or the future modifications. As mentioned in the rule 3, each variable must be declared before its use: Addition of a and b, the current function being FA the result is store in FA.The keyword var is no more used to refer to the already declared variable.
Page 34: Error Messages
Key Functions Mathematical functions Syntax Examples cosinius cos(b) a=cos(b) ; or function=cos(‘A1’) ; sinus sin(b) a=sin(b) ; or function=sin(‘A1’) ; tangent tan(b) a=tan(b) ; or function=tan(‘A1’) ; arccosine acos(b) a=acos(b) ; or function=acos(‘A1’) ; arcsine asin(b) a=asin(b) ; or function=asin(‘A1’) ; arctangent atan(b) a=atan(b) ;...
Page 35: Script Editor Advanced Use
Key Functions 1. Lack of a semi-colon 2. A bad channel’s name has been entered. Channel’s names must be entered exactly as they were named ( with the same number of spaces, the same case …) 3. A variable has not been declared 4.
Page 36: F (T) " Key
Key Functions « Validity » key Selection of the channels displayed on screen, printed on paper or recorded on memory or file. Figure 4.1 After pressing this key, select the channels you want to display on screen, print or record into the internal memory or on file.
Page 37 Key Functions – Setup Screen: Configuration of the measurement display on screen a. Display F(t), DisplayXY b. Calculation validity opens up a small window where you can select the number of channels concerned with the calculations and the selected function. You can move this window by pressing on the top left of it.
Page 38 Key Functions By clicking on the window associated with time cursor, the way the information is displayed can be changed: 6. Values follow the curves: Time values are directly displayed on the graph 7. Transparency: Choose if curves or cursor values must be printed in the foreground. 8.
Page 39: Xy " Key
Key Functions 3. Sample number: to change the number of samples 4. Sample: to adjust the time of the signal You can also change the parameters of the reticule and select the channel to analyze. By pressing on the window, icon series appear and allow you to zoom, shift and directly call the window of data changes.
Page 40: Numeric " Key
Key Functions e. Possibility to customize the screen by changing the background colors, reticules and cursors. Possibility to display your own background. f. Print screen: You can print the signal displayed on screen Setup Plot: Print options 2. Pen down (yes or no): If you press Yes, the current curves show up; if you press no, the display does not stop, but remains hidden (the display keeps on but is not visible) 3.
Page 41: Trigger " Key
Key Functions 4.13 « Trigger » key Channels data acquisition programming in Memory, File and Go/No-go modes. Selection of the actions after data acquisition or display and validation in real time of the data back-up. Figure 4.5 Channels Data Acquisition The programming of the triggers is different according to the current mode (Direct, Memory, Template or File).
Page 42: Replay " Key
Key Functions 4.14 « Replay » key Display on screen of the data acquisitions available in the internal memory or in files in the hard drive or a USB stick. Figure 4.6 Replay Display When the size of the acquisition data to display is important, it may take time to load and display dots. This function has nearly all the same commands as the display functions «XY »...
Page 43: Start/Stop " Key
Key Functions 4.15 « Start/Stop » key This key has various effects according to the current mode of the appliance. 1. Memory mode: launching the data acquisition into internal memory; the appliance waits for the initial trigger condition 2. Go/Nogo mode: launching the data acquisition into internal memory; the appliance waits for the initial trigger condition 3.
Page 44: Triggers
Triggers This chapter describes all triggers available in this appliance. You can use them with: « Setup » key, parameters « Alarm A, B and C » « Trigger » key, parameters « Start » and «Stop » 1. Edge / level trigger a.
Page 45: Analog Channel (Only One Threshold)
Triggers 5.1.1 Analog channel (only one threshold) 1. Channel: selection of the channel on which the triggering threshold is applied 2. Threshold 1 / Threshold 2: selection of the threshold to set up; each channel is tested against 2 thresholds. For example, you can program an initial condition on the channel A1 and the threshold 1, and a stop condition on the same channel A1 and the threshold 2.
Page 46 Triggers 1. One threshold (OR): the first achieved condition validates the trigger 2. All thresholds (AND): all conditions must be simultaneously achieved to validate the trigger 3. Slope (OR): trigger according to the slope of signals; the first achieved condition validates the trigger 4.
Page 47: Threshold Triggering
Triggers 5.1.3 Threshold triggering Example: the trigger to the left is Trigger if: Channel A1 increasing and equal to the threshold S1 with value 0.500 A Channel A2 increasing and equal to the threshold S1 with value 0.500 V Channel A2 increasing and equal to the threshold S2 with value 0.500 V Channel A3...
Page 48: Slope Trigger
Triggers 5.1.5 Slope trigger Example: the trigger to the left is Trigger if: Channel A1 increasing with a positive slope of 0.500 V over a 1s period Channel A2 increasing with a positive slope of 0.500 V over a 1s period This triggering mode is not used with alarms.
Page 49 Triggers AND/OR: the mathematical function And/Or is applied on each channel.
Page 50: Mathematical Calculations
Mathematical Calculations You can make mathematical calculations on the results of the data acquisitions. You can access them from the «F(t) » function and the « Replay » if a data acquisition is displayed on screen. 6.1 Definitions Press the key «Setup Screen », and then select « Calculation validity » to open the calculation window. Press on top right of the window to access the setup: - Opacity: to adjust the level of opacity of the window - Mathematical calculation: to set the number of simultaneous calculations (max.
Page 53: Memory Mode
Memory Mode This chapter describes the Memory Mode to record the calculations made on the channels in real time into internal memory. You can launch the data acquisition under various conditions. The acquisition Stops when the measures exceed a previous acquisition as defined as a Go/Nogo.
Page 54: Sampling Period
Memory Mode a. File name: directory and name of the back-up file b. Record channels: shortcut of the « Validity » key to select the channels to record c. Sample Rate: sampling rate of the channels 4. Start: Start condition of the data acquisition * Manual: with the F2 key «...
Page 55: Internal Memory
Memory Mode these values is saved in the memory. For a satisfactory periodic signal, you must select a sampling period compatible with the signals frequency on the input terminals of the recorder. A 10 points definition per signal period is a minimum for getting a satisfactory drawing. 7.3 Internal memory _ blocks The memory available on the recorder can be separated in blocks which are filled successively during each acquisition.
Page 56: Double Trigger Mode
Memory Mode 7.5 Double Trigger Mode In this mode, a starting trigger and a stopping trigger are used. You will record measures between these two triggers. The acquisition will stop automatically: * when the stopping condition is valid * when the memory block is full An information window sums the general setup of the acquisition: * channels and functions between validated channels for the acquisition * number of points per channels (function of the number of blocks)
Page 57: Memory Output
Memory Mode Additional keys of the menu: – Display : a. Total : the entire memory depth is displayed and refreshed during acquisition b. Zoom: the filling rate allows you to know the acquisition condition, you can access to time and voltage cursors. c.
Page 58 Memory Mode – FFT analysis: determine the response of – Time cursor : vertical cursors, – Voltage cursor: horizontal cursors; zoom; see chapter Use see chapter Use signal frequency, see chapter Use The following information appears on the left and on the top of the screen * the number of displayed block * the sampling speed of the block * the date of the trigger...
Page 59: Go-Nogo Mode
GO-NOGO Mode This chapter describes the Caliber mode intended for recording the measures performed on channels in real time in internal memory. The launching of acquisition can be trigger under various conditions. The stop occurs when the measures overpass a previous acquisition defined as CALIBER.
Page 60: Creation Of The Caliber
GO-NOGO Mode “Impossible” is displayed when the possibilities of back up are not possible anymore: reduce the sampling speed or the number of channels See chapter File Mode to know the limits of the recording on a file. Rest of acquisition: actions after the end of the acquisition –...
Page 61: Use Of The Caliber
GO-NOGO Mode 8.3 Use of the caliber The comparison with the caliber is used to stop the acquisition. This comparison will be performed on the “caliber channels” selected in the page “triggering”. The information window at the bottom of the page “triggering” sums the general setup of acquisition: •...
Page 62: File Mode
File Mode This chapter describes the File Mode to record the calculations made on the channels in real time into a file. The start and stop of the plot can be triggered under various conditions. 9.1 Setup and triggering of the data acquisition Push the Trigger key.
Page 63: Secondary File
File Mode – Automatic: immediate; automatic stop when the block is full • Stop: stop condition of the data acquisition – Automatic: when the block is full – Trigger: on combination of analogical and logic channels; see chapter Triggers . See chapter Triggerings. –...
Page 64: Compare Files And Reference
File Mode 9.4 Compare files and reference 9.4.1 Reference file You can compare files between them or having a viewing reference in recording mode file (not available in XY mode). Choose the reference file in the OUTPUT page: In Blocks/ reference select a file: –...
Page 65: Compare With Wall Paper
File Mode In the windows Setup/option you can choose • Opacity of each channels • thicknes • Time offset (in millisecondes) • Extrapolations of points. 9.4.3 Compare with wall paper You can add a wall paper (png file) (key Setup Screen >Color) You can use a paint software (paint paint.net, gimp …) for create/modify the wall paper copy the file with ftp or Usb key (the will will be copied in the folder FolderGraticule...
Page 66: Limitation
File Mode 9.5 Limitation The real time data acquisition onto a file is limited by the transfer rate between the inputs and by the hard drive write speed. The maximum transfer rate onto a hard drive is 6 Msample/s. To know the number of channels that you can record at a given acquisition period, follow the following formula: number of channels = 6 000 000 x acquisition period Example: acquisition period: 10 µs Number of channels = 6 000 000 x 10 µs = max.
Page 67: Power Analyzer
Power Analyzer 10.1 GENERAL The circuit analysis option makes you possible to measure powers and harmonics. The measured values can be displayed in real time or recorded. The channels that are not used for the measurements of power or energy values keep on working normally.
Page 68 Power Analyzer • Type of circuit: – Selection of the basis setup of the circuit (Single-phase, three- phase (Star / Delta / Delta Aaron)). – Selection of the frequency (< 60 Hz / < 500 Hz / < 1000 Hz) –...
Page 69: Display Of The Signal
Power Analyzer The I1, I2 and I3 intensities are linked with the even inputs A2, A4 and A6. For example, in Aaron Triangle mode, the free channels will be A5 and A6 Fresnel diagram: You can check the accuracy of the cable assembly by displaying the Fresnel diagram. The length of the vectors is not proportional to the effective value of the intensities: the user needs to check the consistency of what is specified.
Page 70: Trigger Menu
Power Analyzer • Display Parameters: display of the values of each defined parameter (see the following paragraph) • Display Harmonics: This window is updated ca. 4 times per second. Selection of the channels: you can select either all voltage channels (U1,U2,U3), all current channels (I1,I2,I3), all circuit channels (U1,U2,U3+I1,I2,I3) or only one channel (these channels are also used to record harmonics (see paragraph 11.4.2)) •...
Page 71: Acquisition File Of The Harmonics
Power Analyzer 10.4.2 Acquisition file of the harmonics At the same time, you can record harmonics of the signals in text mode. You select the acquisition period of the harmonics (from 1 second to 1 hour). The recorded channels are the same as specified in the Display page (chapter 11.3). The file that you create has the same name as the parameter file, but with the .txt extension.
Page 72: Record
Power Analyzer – P: Active – Q: Reactive – S: Apparent • Energy: cumulative value; initialization at page Display • Power/factor • Frequency: the calculation of frequency is made on the input U1 • Harmonics: selection of the channels, whose harmonics you want to display •...
Page 73: Measurement Method
Power Analyzer 10.6 Measurement method Energy: the cumulative value of power P; you can clear this value in the Display page Attention: the maximum value of the energy in acquisition mode is limited to E= Pn*H Pn=nominal power H=12 hours...
Page 74: Canlin Option
Canlin Option WARNING: CANLIN is a fanctory option, only available for DAS1700/DAS700/DAS701 systems taht have no extension rack. 11.1 Activating the CANLIN option In order to activate the CANLIN option: • Press the following button • In the Modification Version/Option menu, select Modify .
Page 75: Can Bus
Canlin Option 1. Button taht allows access to the CANLIN option. 2. Installed axquisition cards +3 virtuals cards for the CANLIN option. 11.2 CAN bus 11.2.1 Technical specification Pin Designation CAN LOW GND PSU CAN High...
Page 76: Can Input Parameters Configuration
Canlin Option 11.2.2 CAN Input parameters configuration...
Page 77 Canlin Option 8. Activate 120 ohm bus termination resistor. 1. Enable/Disable the CAN channel 9. Activate power supply output 2. Modify nominal CAN speed (125kHz, 250kHz, 500kHz, 1MHz) 10. Select power supply output voltage (5V or 12V) 3. Activate Flexible Data-Rate 11.
Page 78: Output Configuration
Canlin Option 11.2.3 Output configuration...
Page 79: Hardware Filtering
Canlin Option 6. Modify frame type (Remote/Data) 1. Modify CAN channel 7. Change data Payload 2. Modify CAN ID 8. Go to CAN DB configuration page 3. Choose CAN mode (standard, FD, FD+BRS) 9. Modify number of transmission reattempts (0 or 3 retries) 4.
Page 80: Power Supply Output Of The Can Connector
Canlin Option 1. Enable filter 5. Filter values in hexadecimal. 2. Modify the full filter. The filter is used for ID filtering. 6. Filter values in binary. The ones that 3. Modify ID mask. Only the bits selected in the mask are tested in the filter. are not enabled by the filter are greyed.
Page 81: Candb Input For Automatic Configuration
Canlin Option 11.2.6 CANdb input for automatic configuration...
Page 82: Lin Bus
Canlin Option 1. Click here to filter by node name 7. Currently linked CAN channel. Click on 2. Node name the value to modify it. 3. ID CAN in hexadecimal 8. Click to open the prompt that allows you to load 4.
Page 83: Lin Input Parameters Configuration
Canlin Option 11.3.2 LIN input parameters configuration 5. Indicates if LIN PSU is connected 1. Enable/disable the LIN channel 6. Go to waveform conversion page 2. Change the LIN bus baud rate 7. Go back to CAN parameters page 3. Change the expected data length for the corresponding LIN ID 4.
Page 84: Incoming Frames Real-Time Viewer
Canlin Option 11.4 Incoming frames real-time viewer 1. Filter incoming frames by ID 7. Go to CAN parameters page 2. Frame ID 8. Go to LIN parameters page 3. Filter incoming frames by channel 9. Go to .CSV saving configuration 4.
Page 85: Can Lin Analogue Waveform Conversion
Canlin Option 11.5 CAN LIN analogue waveform conversion The CANLIN option allows you to convert up to 18 analogue waveforms, by interpreting the data from the CAN or LIN received frames. The 18 channels are spread amongst 3 virtual cards that are shown after the physical acquisition ones. The converted waveforms act like any other physical channel of the DAS system.
Page 86: Converted Input Parameters
Canlin Option 1. Channel number 6. Choose the start offset of the analysis zone 2. Change converted waveform name 7. Choose the type of data that you want to acquire 3. Choose the input bus 8. Choose the type of endianness of the analysis zone (Little-endian or Big-endian) 4.
Page 87: Csv Format Recording
Canlin Option 11.6 CSV format recording The CANLIN option allows you to save every captured frame and error in CSV format, at maximum speed, with all busses enabled. 2.Change save path 3. Change save filename 1. Enable .CSV frame save ATTENTION: You cannot save in CSV mode if you are currently doing an analog waveform acquisition.
Page 88: File Management
File Management 12.1 General For all possible files, the appliance has an internal hard disk and can receive an USB stick that makes it possible to: – save or reload the total setup of the recorder – save or display a data acquisition. The setup files have a *.CNF extension.
Page 89: Managing The Setup Files
File Management 12.2 Managing the setup files The page to manage the setup files is linked to the "Setup" key. Their name has a *.CNF extension. • Reset Set up: initialization of the appliance under a standard setup • Save on Disk: back-up of a setup to a file on the internal hard disk or an USB stick •...
Page 90: Loading Setup Files
File Management 12.2.2 Loading setup files Press the Load on Disk key. Select the directory, then the file to load, and click Load . Attention: You will lose the current setup. 12.3 Managing the data acquisition files 12.4 Saving acquisition files To save the data acquisition, you must define the parameters of the triggers.
Page 91: Recycle Bin
File Management 12.5 Recycle bin When you erase a file, it is saved in a hidden directory. The content of the recycle bin is limited to a little more than 5 GB. In case of overrun, the oldest files are definitively erased.
Page 92: Printing
Printing This chapter describes the direct printing of the results on a local printer or a connected one (LAN or WIFI). You start the printing with the Print key from the following functions: – F(t) and XY , Setup Plot key (stopped scan) –...
Page 93: Selection Of The Printer
Printing 13.2 Selection of the printer The Setup Printer key launches printer selection software in the list of existing printers. Click the Add button to find the local printer. Click a small arrow on the left of Network Printer . The software will look for the printers connected to the network. Select the manufacturer and the model of the printer, and then click on Forward .
Page 94: Printer For Usb Connection
Printing 13.3 Printer for USB connection You can connect the recorder to a printer with a USB connector. In this case, the connected printer will show up directly on screen: In case of problem by the setup of a new printer, you can reboot the basis printer in the Setup page.
Page 95: Input/Output
Input/Output 14.1 Additional Input / Output Connector The connector is at the rear (SUB-D 25 male pins). Pin no I/O Nom des signaux The ground of the power supply is the mechanical Logic channel 1 earth of the Casing of the SUB-D25 Logic channel 2 Logic channel 3 Logic channel 4...
Page 96: Logical Inputs
Input/Output 14.2 Logical inputs The non-connected inputs have the following circuit: The non-connected inputs are 0 V potential (level 0). Number of logic channels: from 1 to 16. TTL level: 3.3 V (protected until 24 V) To create a rising edge, you only have to create a connection between the power supply 12 V input and the output of the connector.
Page 97: Extension Box For Input/Output Interface
Input/Output The 12 V may disappear in case of intensity overload (> 0.2 A). In such a case, You have to turn off the appliance a few minutes before switching it on again. 14.5 Extension box for input/output interface The extension box makes it possible to detect a voltage and convert it into a logic signal for all 16 logic channels. The inputs are isolated between each other and from the ground.
Page 98 Input/Output 0 to 48 V 0 to 250 V Through a banana plug isolated between the red and Through pole and screw between the dots #1 black bushes and #3 of the screw terminal Max voltage available: 250 V ACor DC Max voltage available: 48 V AC or DC Typical trip threshold (AC or DC): 48 V Frequency: 45 to 440 Hz...
Page 99 Input/Output 14.5.1 Use Link the box to the input/output connector of the appliance with the 25-pin connector provided with the option. Connect the logic channels to record with respect to the max. authorized voltages Power supplies / Alarms: Figure 14.2 max.
Page 100: Interface
Interface 15.1 Ethernet interface 15.1.1 General You can remotely use the recorder with its Ethernet interface through the TCP-IP protocol. Plug the recorder onto your network with a straight cable on the 10/100 BASE-T connector (RJ45) at the top of the appliance.
Page 101: Ntp Protocol
Interface Case with manual IP: For example, in I mode, you can have: IP=192 135.20.00 mask = 255.255.255.0 Recorder IP=192.135.20.01 mask = 255.255.255.0 Refer to the definition of the classes of IP addresses. Programming: You can create your own software under Visual Basic, Visual C++, etc. for example with the Winsock.dll driver by Microsoft.
Page 102: Irig Synchronization (Optional)
Interface 15.4 IRIG synchronization (optional) The IRIG sync option, enhance the time measurement accuracy of data recorded in files mode (for sampling period >=1ms). The recorders equipped with IRIG board have and additional BNC connector, on the rear panel to assure the link with the external IRIG clock.
Page 103 Interface Pressing the Modif. key opens a utility program to activate the Wifi link.
Page 104 Interface Then, go to the Devices tab and check that your Wifi stick has been identified. Then, click New and select Wireless connection, then Forward . The name of your Wifi stick shows up. Select it, then click Forward . On this page, you must type the network parameters.
Page 105: Create A Wifi Hotspot
Interface After that, you Wifi peripheral should be visible in the list of configurable peripherals. In the Modify tab, you must: check "Activate the peripheral at start-up": the peripheral will automatically start up at energizing of the computer. In the second tab you can see the MAC address of your wifi key. Don’t forget to save the setup (files ->...
Page 106: Operating Software
Interface SeframRecorder Hotspot name: sefram00 Password: 15.7 Operating software You can transfer the data acquisitions files to a PC computer. The SeframViewer software is provided on a CD-ROM with the appliance. It displays the recorded files. It works under win XP, 2000, Vista,Win7 with Framework 2.0 Using files on a PC requires two steps: - Transfer the files from the appliance to the PC with the FTP protocol with your Internet browser, for example -Display of the files with the SeframViewer software...
Page 107: Display Under Seframviewer
Interface 15.7.2 Display under SeframViewer Launch the SeframViewer software (or double-click on a file) then open a .REC file. You can select: - the channels to display - the f(t) or xy mode - the autocalibration of the channels. Your data acquisition file is displayed on screen. All functions of SeframViewer are available.
Page 108: Send Mail
Interface Then VNC will ask you this password. 15.8 Send mail 15.8.1 Configuration of parameters to send mail Path to configuration settings In the main menu, click on the button Config. Click on the button Additional option...
Page 109: Different Method Of Sending Email
Interface Click on the button Modif next to the field Email address. Configuration parameter Forwarding adresse and identify the sending server To disable the password Send server password. Send server adress. Inbound port of the sending server Adress of the recipient of the mail Adding content to the mail Send a test email 15.8.2 Different method of sending email...
Page 110 Interface In the menu, it‘s possible to send an email at the end of acquisition. Sending mail is limited to 1 mail every 10 minutes Sending email on alarm...
Page 111: Operation
Interface In the menu for configuring alarms, it’s possible to activate sending mail when an alarm switch to states activate. Each alarm is independent and is limited to 1 mail every 10 minutes. 15.8.3 Operation • For send an email, the device will connect to the mail sending server with the protocol SMTP using SSL encryption to secure the connection.
Page 112: Technical Specifications
Technical Specifications 16.1 Isolated 1000V inputs 16.1.1 General characteristics Number of inputs per module 6 Impedance: 11MΩ impedance for calibers < 10Volts 10MΩ impedance for other calibers Maximum admissible voltage: Between the measured channel and the mechanical ground : 1000 V DC or 1000 V AC 50 Hz Between the two channels’...
Page 113: Derivative And Integral Record
Technical Specifications Sampling: 200 µs Max frequency: 500 Hz Min frequency : 10 Hz Peak factor: 2, 2 and 2000 V max. Instantaneous Accuracy: +/- 1 % (sinusoidal signal) Response delay: 100 ms typical (40 ms @ 50 Hz) Max measurable voltage: 1000V AC 16.1.4 Derivative and integral record (common to all channels) from 200 µs to 1 s...
Page 114: Numeric Filters
Technical Specifications 16.1.9 Numeric filters Programmable 0.01 Hz to 100Hz Slope: 40 db/decade Sampling: 5 KHz Period of calculation: • Record >=200µs or oscilloscope time base >=20ms/div : 200µs • Record <=100µs or oscilloscope time base <=10ms/div : 5ms 16.2 Isolated 500V inputs 16.2.1 General characteristics Number of inputs per module 6 Impedance:...
Page 115: Rms Recording
Technical Specifications 16.2.3 RMS recording RMS calculation with the software Sampling 200 µs Max. Frequency 500 Hz Min. Frequency 10 Hz Peak factor 2.2 and 600 V max. Instantaneous Accuracy ± 1 % (sine signal) Response delay 100 ms typical (40 ms @ 50 Hz) Measureable max.
Page 116: Frequency Record
Technical Specifications 16.2.6 Frequency record Accuracy 100 mV rms min. Decision threshold: Variable from -99 V to 99 V with 0.1 V steps(Valid for frequencies < 10 Hz) min. cyclic ratio Frequency between 10 Hz and 100 kHz. Accuracy 0.02% of the full scale 16.2.7 Counting record Decision threshold: Variable from -99 V to 99 V with 0.1 V steps...
Page 117: Input Impedance
Technical Specifications 10 kHz,1 kHz, 100 Hz, 10 Hz Analogical Filters: 20 dB/decade Slope: see § 16.1.9 Numeric Filters: 16.2.11 Input impedance • For the universal 6-channel module : – For the range >= à 1V (-500mV) input impedance = 1Mohm. –...
Page 118: Rms Record
Technical Specifications 16.3.3 RMS record Software RMS calculation 200 µs Sampling Peak factor typically 100 ms Response delay 100 Hz Max. Frequency 10Hz Min Frequency ± 1% (sine signal) Accuracy 16.3.4 Counting record Decision threshold: Variable from -10 V to 10 V with 0.1 V steps min.
Page 119: Strain Gauge Inputs
Technical Specifications 16.4 Strain gauge inputs 16.4.1 General characteristics Number of inputs per module: 6 Voltage, thermocouple and strain gauge measurement (the strain gauge bridge is powered by the drawer) Inputs of type isolated differential Impedance: 2 MΩfor calibers <= 1 V 1 MΩfor calibers >...
Page 120: Strain Gauge Record
Technical Specifications 16.4.5 Strain gauge record The selected unit is µSTR (micro strain). Gauges also express the measurement in mV/V The equivalence is: 2000 µSTR = 1 mV/V ± 25000 µSTR Automatic Zero 2 V and 5 V (symmetrical ± 1 V and ± 2.5 V) Power Voltage of the bridge 2 (adjustable between 1.8 and 2.2) Gauge Coefficient...
Page 121: Additional Inputs / Outputs
Technical Specifications 16.5 Additional Inputs / Outputs 16.5.1 Logic channels Number of channels Input Impedance 4.7 kΩ Sampling Frequency same as the main inputs Max. Admissible Voltage 24 V 16.5.2 Alarm Outputs voltage-free contact (relay) (24 V / 100 mA). Alarm A TTL outputs 5 V Voltage-free appliance when the circuits are open.
Page 122: Frequency
Technical Specifications • Voltage: accuracy 0.5 % • Intensity: accuracy 0.5%+1%=1.5% • Power: accuracy 0.5%+1.5%=2% Power supply voltage and frequency of the appliance: In the case where the recorder is in nominal functioning conditions (see chapter 10.7), the influence errors resulting from the power supply voltage and frequency are negligible within 10% distortion and ±...
Page 123: Memory Acquisition
Technical Specifications 16.8 Memory acquisition Memory length 128 Msample (partible up to 128 blocks) Max. Sampling Period 10 min Max. Sampling Frequency 1 MHz Accuracy 50 ppm Position of the triggers -100% to +100% 16.9 Acquisition on files Internal hard disk size 500 GB min.
Page 124: Mains
Internal fuse not accessible to the user: contact the after-sales service by SEFRAM 16.12.3 Dimensions and weight 271 mm Height 472 mm Width Depth 154 mm Weight DAS1700 8 kg With Extension: Depth 236mm Weight DAS1700 10kg 16.13 Electromagnetic compatibility, security 16.13.1 Security, Isolation Class, Installation Category...
Page 125: Miscellaneous
Technical Specifications 16.14 Miscellaneous 16.14.1 Internal saving battery Saving the configurations and the clock lithium 3.0V button battery Battery min. 5 years Preservation of the data The user cannot change it: contact the after-sale service. 16.15 Accessories 16.15.1 Accessories provided with the appliance User manual Help CD with software and notes Common accessories:...
Page 126: Battery Option
Technical Specifications 16.16 Battery option Battery charging time with the DAS turned off <3h Battery charging time with the DAS turned on <6h Battery autonomy >2h The front LED of the battery powered devices has three operating modes: – LED lights up: The device is ON (Push button ON). –...
Page 127: Appendix
Appendix 17.1 Information about the caliber of the inputs 17.1.1 Inputs of isolated voltage type Reminder: The caliber is the difference between the max. and min. displayable value on screen. The origin is the middle of the screen. Caliber Origin Offset Min.
Page 128: Inputs Of Multiplexed Card Voltage Type
Appendix 17.1.2 Inputs of multiplexed card voltage type These inputs do not have any analogical offset: offsets are calculated by the software. The real caliber is the one, whose range includes the programmed range. Thermocouple measurements are treated as voltage measurements. MEASUREMENT CALIBER For a given temperature measurement range, the software...
Page 129: Measurement Accuracy For Pt100,Pt200,Pt500,Pt1000
Appendix Measurement accuracy: Pm The measurement accuracy Pm depends on the voltage caliber used by the appliance (see the previous paragraph) and on the slope of the thermocouple. You will use the slope for the thermocouple at 0°C, since it varies according to the temperature;...
Page 130: Accuracy Of Instant Measurementaccording To The Filters
Appendix in °C, will be the voltage error margin divided by the slope, in V/°C. For all voltage calibers, the accuracy is ± 0.1% ± 10 µV. Slope as a function of temperature: Temperature -200 -100 (°C) Slope (µV/°C) Measurement accuracy of the equivalent voltage at 0°C: max.
Page 131: Note On The Measurement Unites For A Guage Strain
Appendix common mode. Caliber 1 mV 2 mV 5 mV 10 mV 20 mV 50 mV 100 mV 200 mV >200 mV Filter 1 kHz 1 kHz 1 kHz 10 kHz 10 kHz 10 kHz Typical 1.5% 0.7% 0.6% 0.2% 0.6% 0.5% 0.3%...
Page 132 Appendix R: resistance of the gauge strain Vout: voltage measured between the middle point of the bridge S = ΔL/L: lengthening of the gauge or constraint (strain) For a bridge with 4 identical resistances, where one resistance changes with a variation ΔR, you can demonstrate: Vout # (Vin / 4) * (ΔR/R) We have: ΔR/R = G * ΔL/L Vout = (Vin / 4) * G * ΔL/L (1)
Page 133 High Speed Data Acquisition System DAS1700 Specifications, Base Unit Note: All specifications apply to the unit after a temperature stabilization time of 30 minutes over an ambient temperature range of 23 °C ± 5 °C. Power Analysis Function Data Acquisition System...
Page 134 High Speed Data Acquisition System DAS1700 Specifications, Measurement Boards Note: All specifications apply to the unit after a temperature stabilization time of 30 minutes over an ambient temperature range of 23 °C ± 5 °C. Universal Input Board High Voltage Board...
Page 135 High Speed Data Acquisition System DAS1700 Specifications, Measurement boards (cont.) Note: All specifications apply to the unit after a temperature stabilization time of 30 minutes over an ambient temperature range of 23 °C ± 5 °C. Multiplexed Board Strain Gauge Board...
Page 136: Service Information
Service Information Warranty Service: Please go to the support and service section on our website at bkprecision.com to obtain an RMA #. Return the product in the original packaging with proof of purchase to the address below. Clearly state on the RMA the performance problem and return any leads, probes, connectors and accessories that you are using with the device.
Page 137: Limited Two-Year Warranty
LIMITED TWO-YEAR WARRANTY B&K Precision Corp. warrants to the original purchaser that its products and the component parts thereof, will be free from defects in workmanship and materials for a period of two years from date of purchase. B&K Precision Corp. will, without charge, repair or replace, at its option, defective product or component parts. Returned product must be accompanied by proof of the purchase date in the form of a sales receipt.

This manual is also suitable for:

Das700 Das701

BK Precision DAS1700 User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for BK Precision DAS1700

Summary of Contents for BK Precision DAS1700

This manual is also suitable for:

Table of Contents
