3onedata IES716-2GS Quick Installation Manual

IES716-2GS
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

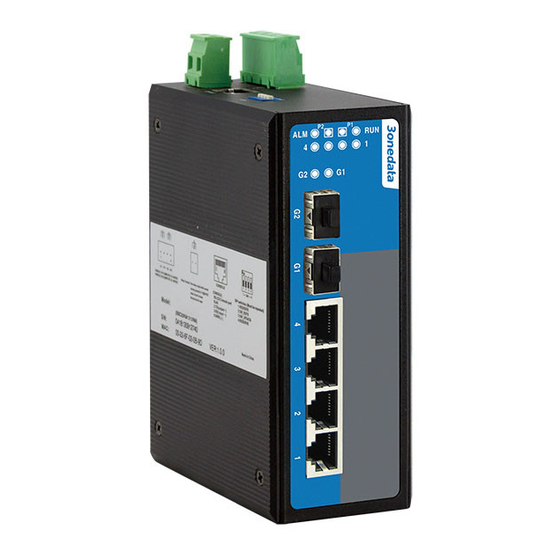

The product is managed industrial DIN-Rail Ethernet switch.
The model is: IES716-2GS (2 Gigabit SFP Slots + 4 100M
Copper Ports)

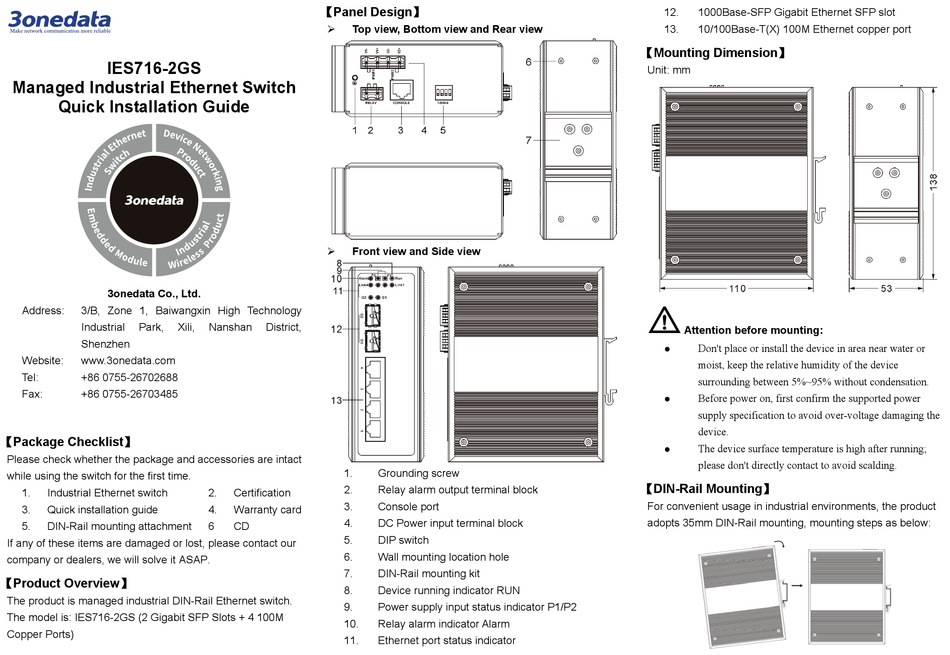

【Panel Design】
Top view, Bottom view and Rear view

Front view and Side view

Nanshan District,
1. Grounding screw
2. Relay alarm output terminal block
2. Certification
3. Console port
4. Warranty card
4. DC Power input terminal block
6 CD
5. DIP switch
6. Wall mounting location hole
7. DIN-Rail mounting kit
8. Device running indicator RUN
9. Power supply input status indicator P1/P2
10. Relay alarm indicator Alarm
11. Ethernet port status indicator
12. 1000Base-SFP Gigabit Ethernet SFP slot
13. 10/100Base-T(X) 100M Ethernet copper port
【Mounting Dimension】
Unit: mm
Attention before mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
