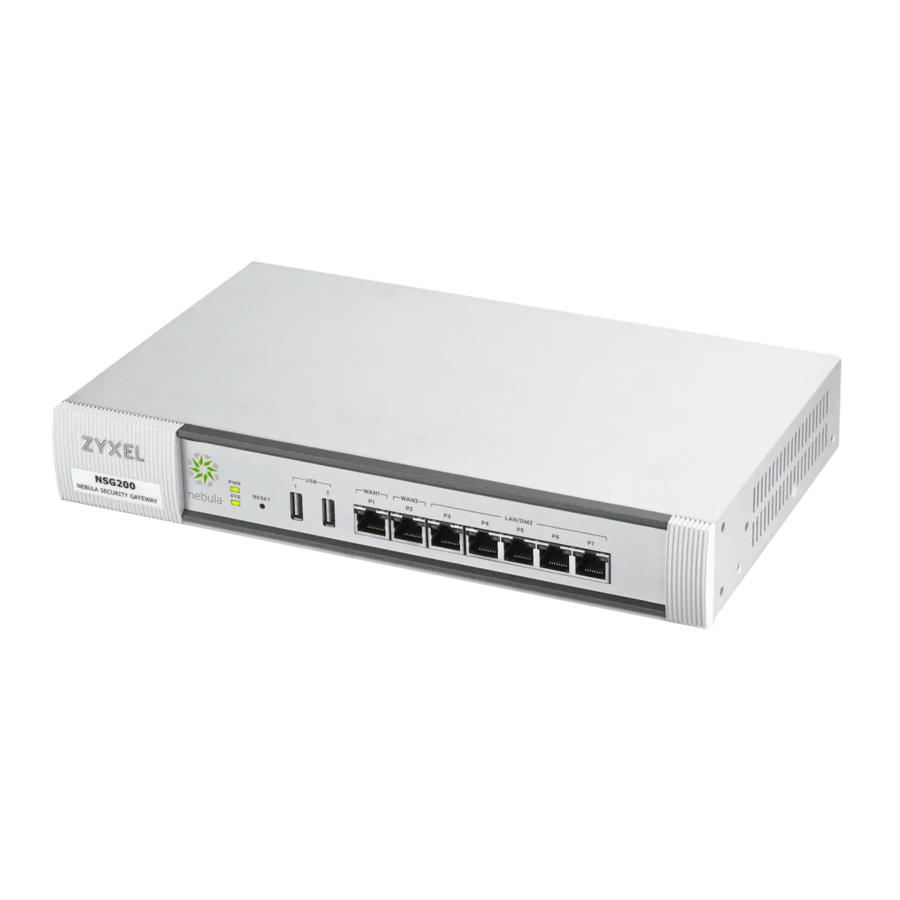

ZYXEL nebula NSG Series - Cloud Managed Security Gateway Quick Start Guide

Wall Mounting

Wall Mounting: Available only for models with wall-mounting holes on the back.

1. Drill two holes on the wall at the appropriate distance apart. Insert the wall plug and screws into the wall. Leave a wall gap as 1 shown on which to hang the NSG.
2. Align the holes on the back of the NSG with the screws on the wall. Hang the NSG on the screws.

Hardware Connection

1. Connect the power socket to an appropriate power source.


2. Connect your computer to the NSG's LAN port using an Ethernet cable.


Device Configuration

3. Launch your web browser and type http://192.168.1.1. Your computer must have an IP address in the same subnet as the NSG.
4. Enter admin as the user name and 1234 as the password. Click Login and configure your WAN connection settings in the Configuration > Interface screens. See the NSG User's Guide for detailed information.

NCC Management

5. Connect the NSG's WAN port to a modem or router that has Internet access.


6. Go to the Zyxel Nebula Control Center (NCC) website (http://nebula.zyxel.com). Click Login and you will be redirected to the myZyxel portal page. Create an myZyxel account and sign in.


7. Create an organization and a site (network). Use the NSG's first MAC address and serial number (S/N) to register and assign it to the site.


Support Information

North America
USA
+ 1 800 255 4101
support@zyxel.com
France
+33 (0) 892 692 610
support@zyxel.fr
UK
+ 44 (0) 118 912 1700
support@zyxel.co.uk
Italy
+ 39 011 2308000
support@zyxel.it
Germany
+ 49 (0) 2405 - 69 09 69
support@zyxel.de

See the User's Guide at www.zyxel.com for more information, including customer support and safety warnings.
