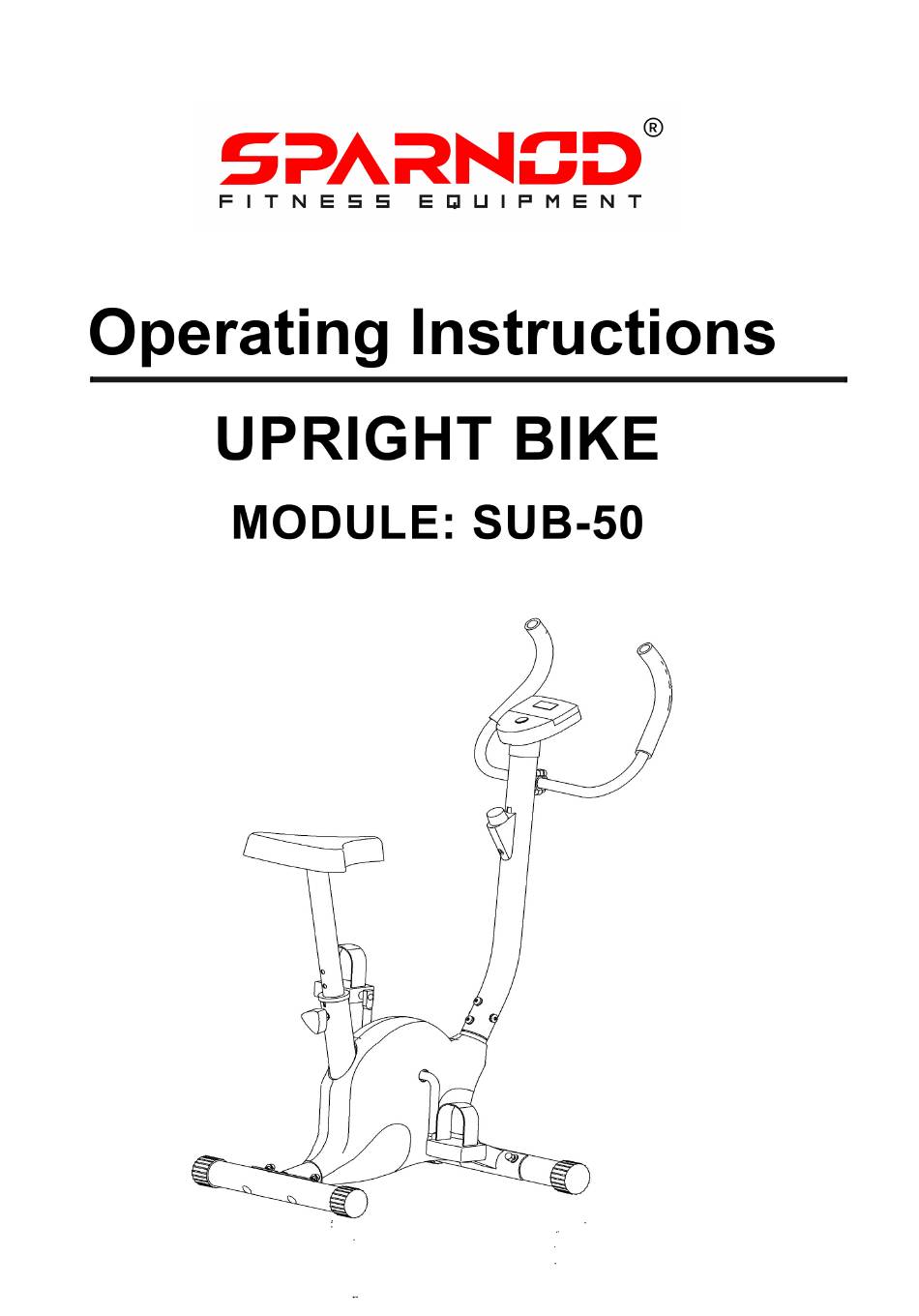

Summary of Contents for SPARNOD SUB-50
-
Page 2: Safety Information
Safety Information Before you undertake any program of exercise that will increase cardiovascular activity please be sure to consult with your doctor. Frequent strenuous exercise should be approved by your doctor and proper use of your product is essential. Please read this manual carefully before commencing assembly of your product or starting to exercise. -
Page 3: Exploded View
EXPLODED VIEW Page2... - Page 4 Part list NO . Description NO . Description Tension Control Knob Main Frame Inner Hex Bolt(M8X30) Front Stabilizer Washer(1/2”) Rear Stabilizer Computer Front Post Handlebar Washer Seat Post Pedal (L/R) 1set Seat Lower Sensor Wire Carriage Bolt (M8X60) Wire C Curved Washer Crank Domed Nut(M8)
- Page 5 Part list No.8 Qty 4 No.9 Qty 8 No.10 Qty 4 No.12 Qty 4 Cross Wrench Qty 1 No.13 Qty 1 Allen Wrench Qty1 Page4...
- Page 6 ASSEMBLY INSTRUCTIONS No.8 Qty 4 No.9 Qty 4 No.10 Qty 4 STEP1. Attach the Front Stabilizer (2) to the Main Frame (1) using 2pcs of Domed Nuts (10), C urved W ashers (9) and C arriage Bolts (8). The installation of the Rear Stabilizer (3) is same to the Front Stabilizer (2).
- Page 7 ASSEMBLY INSTRUCTIONS No.9 Qty 8 No.12 Qty 4 STEP2. Connected Lower Tension hook(24) and Upper Tension Cable (25) as picture A. Connected lower Sensor Wire(21) and Upper Sensor Wire(26) as picture B. Attach the Front Post (4) to the Main Frame (1) using 4pcs of Inner Hex Bolts (12) and C urved W ashers (9).
- Page 8 ASSEMBLY INSTRUCTIONS · No.13 Qty 1 STEP3. Please first turn the tension to the minimum section “—”. Then fix the Tension Control Knob (14) to the Front Post (4) with a Screws (13). Page7...
- Page 9 ASSEMBLY INSTRUCTIONS STEP4. Attach the Handlebar (5) to the Front Post (4) using 2pcs of Inner Hex Bolt (15), 2pcs of Washer(16),. Then connect the Lower Sensor Wire (21) and Upper Sensor Wire (22). Insert computer (17) in the computer holder carefully on the Front Post (4) . These two parts need to be in the same side when connect.
- Page 10 ASSEMBLY INSTRUCTIONS STEP5. Fixing the Seat (7) on Seat Post (6) with 3pcs of Washers (19, and Nut (18) tightly. Page9...
- Page 11 ASSEMBLY INSTRUCTIONS STEP6. Insert the Seat Post (6) into the Main Frame (1) and line up the holes that give the correct seat height. (This can be done after it has been assembled.) Secure the seat in position with the Fixing Knob (11). Page10...
- Page 12 ASSEMBLY INSTRUCTIONS Anti-clockwise STEP7. Clockwise Fixing left pedal (20) on the left side of crank (23), fixing right pedal (20) on the right side of crank (23), make sure it is tightly. Page11...
