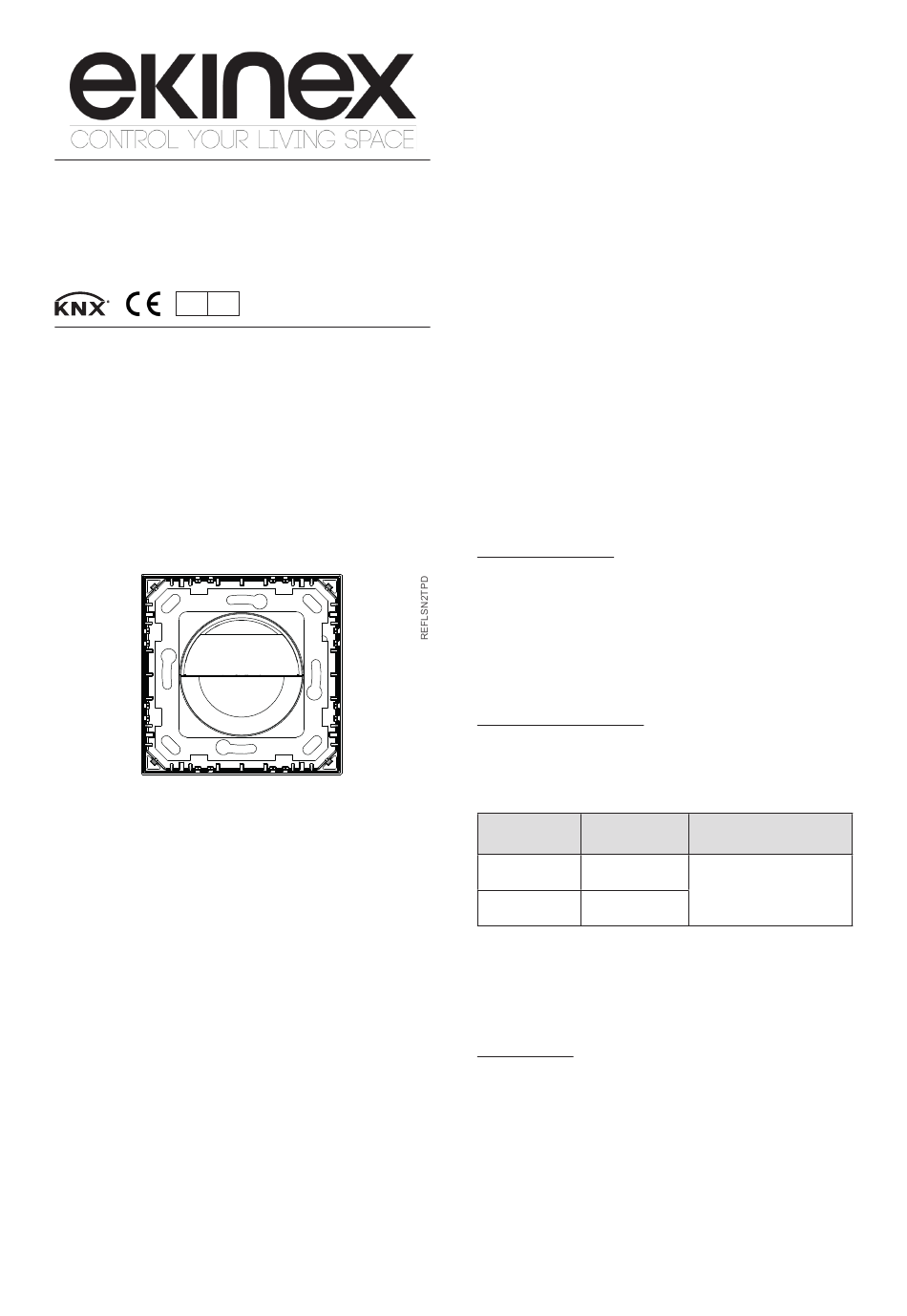

Ekinex EK-SN2-TP Instructions Manual

KNX standard wall presence detector
with movement function
Code: EK-SN2-TP
TP S
Device for motion/presence detection with PIR sensors
(passive infrared) in a semicircular area. The ideal use
is in corridors, transit areas, services, stairwells, envi-
ronments with occasional occupancy. It has dedicated
channels for controlling lighting, HVAC equipment and
alarms. It also allows the measurement of brightness in
the environment. It has an integrated KNX bus commu-
nication module and is designed for installation in a wall-
mounting box; it is powered by the KNX bus and does not
require an auxiliary power supply.
Description
The ekinex® sensor EK-SN2-TP is a KNX standard pre-
sence detector, wall switch type, which uses passive in-
frared (PIR) motion detection technology to automatically
switch on or off the connected lighting or HVAC devices,
when the monitored space is occupied or free according
to the detector settings. Simple installation and quick
setup allow you to replace or complement existing wall
switches. It is designed for use in interiors such as shops,
offices, small rooms, living spaces such as corridors, stai-
rs, bedrooms, etc.
Main functional characteristics
• Hidden switch, can fit single round or square wall flush-
mounting box
• Simple and safe plug-in installation
• The presence detector is used to control devices, e.g.
lighting and HVAC
• Learning function, to configure the device functions by
reading the "ambient Lux" parameter
Datasheet STEKSN2TP_EN
1
• Evolved lens model, with well-distributed and concen-
trated detection capabilities: the detection beams pro-
vide high intensity and sensitivity, to detect even small
shaking movements
• Adjustable sensitivity via ETS on 4 levels
• Possibility of Master / Slave configuration (via ETS)
• Operating modes: Manual ON / AUTO / OFF
• Use in the KNX TP bus system (twisted pair) in combi-
nation with other KNX devices
• Function parameters and settings via ETS 5.0 (Engine-
ering Tool Software) or higher
Technical data
• Rated voltage: 24 Vdc (21 - 30 Vdc) supplied by KNX
bus
• Current consumption (on KNX bus): max 10 mA (opera-
tion) / 5 mA (Standby)
• Connection type: KNX bus with Ø 0.8 mm, single cable
• Outputs: 5 channels (2 for lighting, 2 for HVAC, 1 for
alarm)
• Mounting height: 1.2 - 2.0 m
• Detection angle: up to 200 °
• Detection range: up to 9 m if mounted at a height betwe-
en 1.2 - 1.5 m, up to 8 m at a height between 1.8 - 2.0 m
• Light measurement range: 10 ... 2000 Lux
• Housing, lens and frame in plastic material
• Safety standards: IEC 61000-6-1 / IEC 61000-6-3 / EN
55014 / EN 50491
Other characteristics
• Housing, lens and frame in plastic material
• Wall installation in flush mounting box
• Protection degree IP20 (installed device)
• Climatic classification 3K5 and mechanical 3M2 (accor-
ding to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Weight 40 g (70 g with mounting support)
• Dimensions 80 x 80 x 31 mm
Environmental conditions
• Operating temperature: - 20 ... + 40°C
• Relative humidity: 95% not condensing
Versions
Code Colour
EK-SN2-TP-GAA white
EK-SN2-TP-GAE black
Delivery and accessories
The fixing screws and the terminal for connecting to the
KNX bus are included in the supply of the device. This
must be completed with a plastic adapter, a plate and
eventually a frame (all have to be ordered separately).
Finishing plate
The sensor is completed with an ekinex
Fenix NTM material. The plate must have (at least) a 50
®
x 50 mm window in combination with a plastic adapter for
'NF, Deep or Surface series mounting.
Application program
(## = version)
APEKSN2TP##.knxprod
plate in metal or
®
