Code Alarm CATX120 Programming Manual

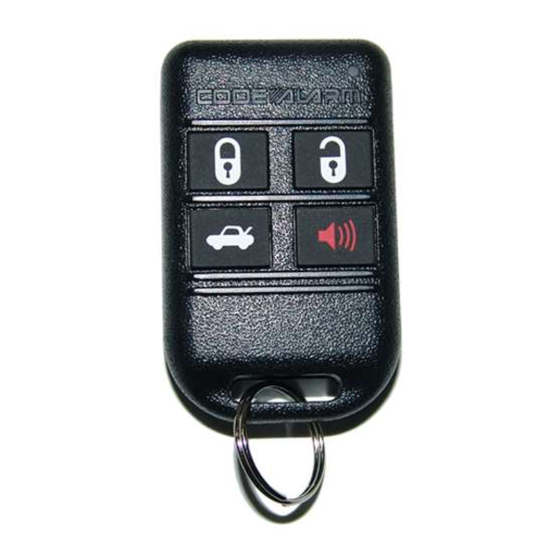

The keychain transmitters included with the system have
been pre-programmed at the factory, with each button pre-
assigned to control a specific function of the system.
It is important to remember that during programming, each
individual step of the procedure must be executed within 15
seconds of the previous step.
When the 15 second time limit is allowed to expire, the
system will automatically terminate the programming mode.
This is indicated by a long chirp from the siren.
Additionally, the system will store codes from up to 4
different transmitters. If a 5
any receiver channel, then the first transmitter programmed
to that channel will be erased from the system's memory.
To program new or additional transmitters, the alarm must
be disarmed and the valet switch must be in the OFF
position:
1. Enter the vehicle, and turn the ignition key to the ON
position.
2. Press and release the valet/programming/override
switch 3 times.
3. The dash LED will flash one time, and the sounding
device will beep one time, indication the system is ready to
accept programming for transmitter 1.
4. Press and hold the Arm Icon button until the sounding
device emits a long beep, indicating the signal has been
stored into memory.
5. If you have additional transmitters (up to 4) that need to
be programmed, repeat step 4 for each transmitter.
Model CATX120
Programming Guide
th
transmitter is programmed to
