Summary of Contents for CM RX-600

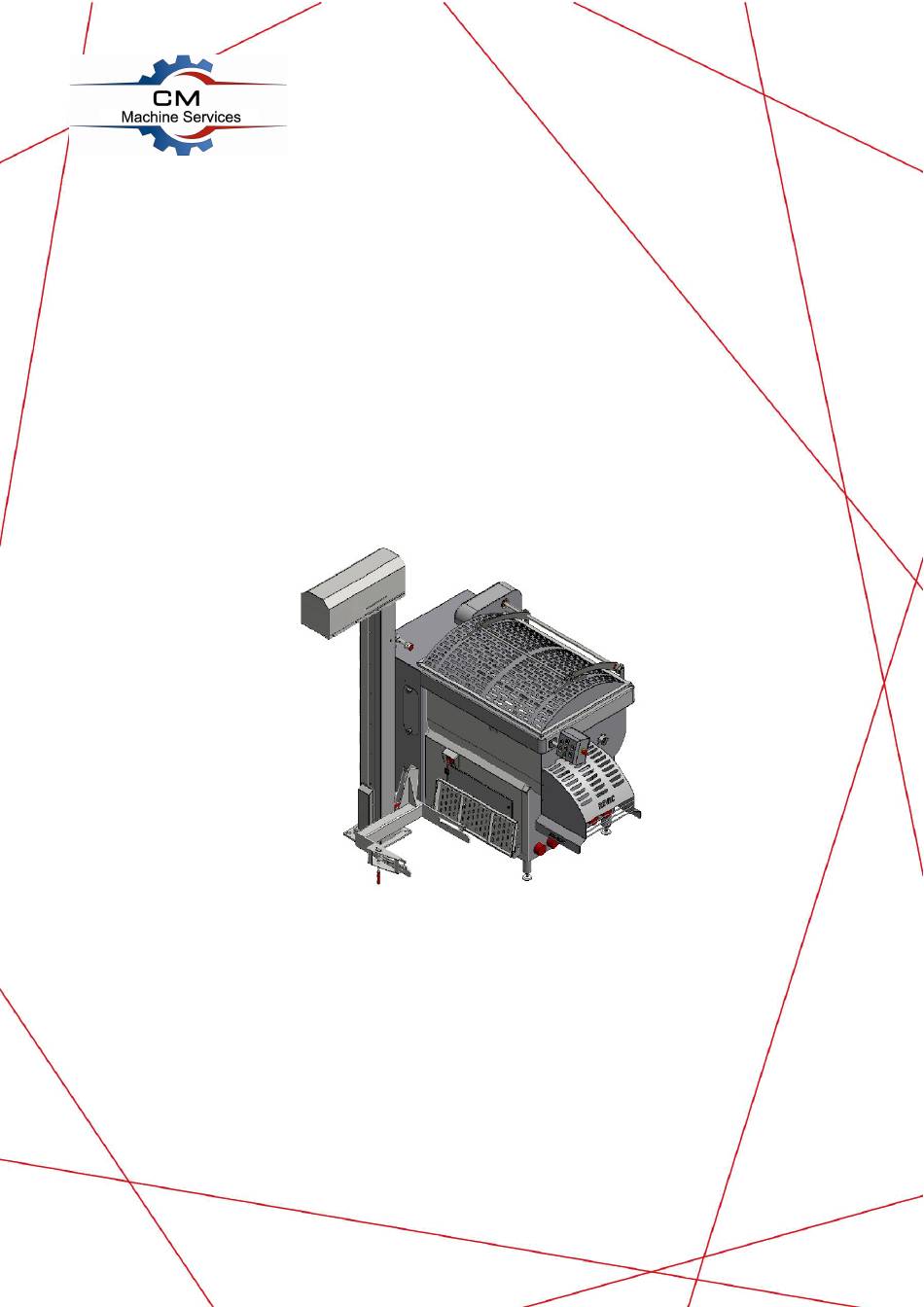

- Page 1 USER MANUAL PADDLE MIXER RX-600 with loading pillar (option) WARNING! The user manual is integral part of machine. All the information that contains are important for the user and the information VERY IMPORTANT are designated in bold.
- Page 2 1. Delivery The complete set of delivery includes: packed paddle mixer RX-600 with loading pillar (optional) paddle mixer user manual 1.1.Transport. Recommended method of loading and unloading or moving on short distances is to use a forklift truck or low-lift truck.
-
Page 3: Technical Description
3.1. Purpose 1.1. Paddle mixer RX-600 is designed for mixing batters in the production of meat or canned meats, vegetables, fruits, sauces. Stirring stuffing is implemented by two intersecting bladed stirrers placed at different heights and have a variable direction of rotation. The mixing process may take place at different shaft speeds in the range of 5 to 48 r/min controlled manually. - Page 4 Figure no .3 3.3. Improper use of the machine. Paddle mixer is not used for mixing frozen meat at temperature below + 2 ° C, boned meats, hard products, flammable liquids. 3.4. Control panel Machine control is available when voltage is applied to the switch cabinet by turning the main switch lever from position "0"...
-
Page 5: Occupational Health And Safety
4. Occupational Health and Safety. 4.1 Threats, their location and security measures. Threat types, dangerous zones and security measures application in machine are summarized in table 1, according to standard: PN – EN 1050 – Machines. Security. The principles of risk assessment with reference to standards: PN –... -
Page 6: Preparing To Work
4.2. Safety in use. Paddle mixer RX-600 operators should be aware of the threats and aftermath the machine can pose, also should know the purpose and operation of protective devices installed on the machine. While using the RX-600 machine, operator should be guided by the informations and recommendations contained in this user manual, ... -
Page 7: Daily Maintenance
7. Operation Paddle mixer RX-600 is equipped with a control panel, described in section 3.4. It controls the mixing process. It allows you to select the direction of convergent and divergent rotations, setting speed of paddle mixers, stop the mixer. - Page 8 The mixing cycle consists of the following steps: Closing of stuffing ejecting flap Placing an empty stuffing trolley below the ejection flap, Opening of tank cover, Loading stuffing into the tank manually or with loading device, ...
- Page 9 Washing with warm Everyday, after water with detergent, Cleaning and washing Mixing tank work washing and drying only with the power off (sponge rubber) Washing with warm Avoid direct contact of Everyday, after water, strong stream water with electrical External surfaces work of hot water components (control...
- Page 10 Parts/units related to the agitator shaft presented on Fig. no.5, in table below: Part /unit name Drawing/standard Designation according standard Snap ring PN-81/M-85111 Z 50 Locking ring RX-600-01.20.005 Drive wheel of the agitator shaft RX-600-01.20.006 Pressure ring RX-600-01.20.003 Positioning sleeve:1 RX-600-01.20.004 Ball bearing PN-85/M-86100 55 x 90 x 18 2Z Spacer RX-600-01.20.002...
- Page 11 Drive shaft of the agitator RX-600-01.20.001 Hexagon screw PN-85/M-82105 M 10 x 30 Hexagon screw PN-85/M-82105 M 8 x 20 Round washer PN-77/M-82008 Bearing housing of agitator shaft RX-600-01.02.02.00 Hexagon screw PN-85/M-82105 M 8 x 20 Round washer PN-77/M-82008 Sealing ring...
- Page 12 Paddle mixer operated in accordance with the manufacturer's instructions is trouble-free, however, it doesn't exclude some shortcomings caused by external factors. Possible deficiencies in the operation of the machine and how to remove them presented in Table no. Symptoms Reason Removal No voltage in control circuit Replace fuse...
- Page 13 11. Warranty settlements. The manufacturer provides a warranty for trouble-free operation for the machine for a period of 12 months from the date of delivery to the final user. The manufacturer does not warrant the damages: -mechanical, -resulted from improper use, -resulting from interfering with the construction of the machine by processing own modifications , -caused by bypass security...
