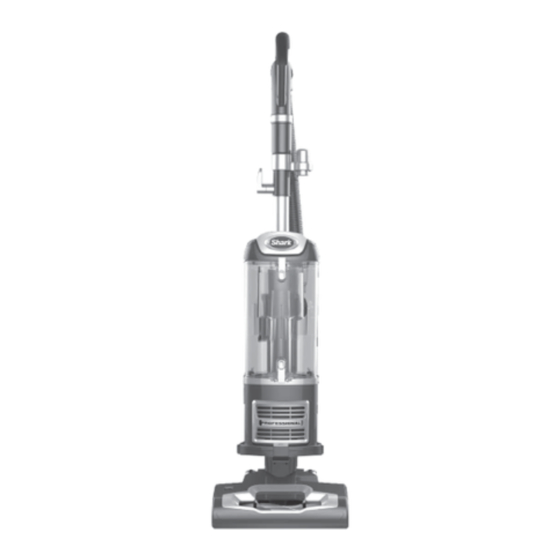

Shark NAVIGATOR LIFT-AWAY NV392 Quick Start Manual

Please be sure to read the enclosed Shark® Owner's Guide prior to using your unit.
QUICK START GUIDE
WHAT'S INSIDE
A Motorized Floor Nozzle
Wand
B
C
Handle
D Crevice Tool
E Upholstery Tool

ASSEMBLY

1
(Click)
A
Place pod onto
floor nozzle.
3
(Click)
Slide accessory
holder onto
extension wand.
B
2
(Click)
Slide wand into
base of pod.
C
4
(Click)
Insert handle into top of
wand, then attach hose
connector on back of pod.
NAVIGATOR
LIFT-AWAY ®
Empty dust cup after each use
To remove the
dust cup, lift tabs
on both sides. Tilt
dust cup forward,
then lift off.
Pre-Motor (foam and felt):
With the dust cup removed, take out the foam and felt filters
and rinse them with water. Between washes, tap loose dirt
off filters when needed.
Post-Motor (HEPA):
To access the HEPA filter, pull the tab under the filter cover,
D
and lift off the cover. Remove and rinse the HEPA filter.

Easy brushroll maintenance

E
Use a coin to open the 2
locks on the bottom of the
floor nozzle.
™

MAINTENANCE

Press top dust
Hold dust cup
cup release latch
over a trash bin
to access dust
and press the
empty-release screen and remove
built-up debris
latch on the
as necessary.
bottom.

Cleaning Filters

Foam filter
TIP:
To keep suction strong,
Felt filter
rinse pre-motor filters
with water only every
3 months, and the
HEPA filter once a year.
Allow filters to
air-dry completely
for at least 24 hours
HEPA filter
before reinstalling.
between washes.
Remove any string, carpet
fibers, or hair that may
be wrapped around the
brushroll.
