Summary of Contents for Quantum TIER1-AR2

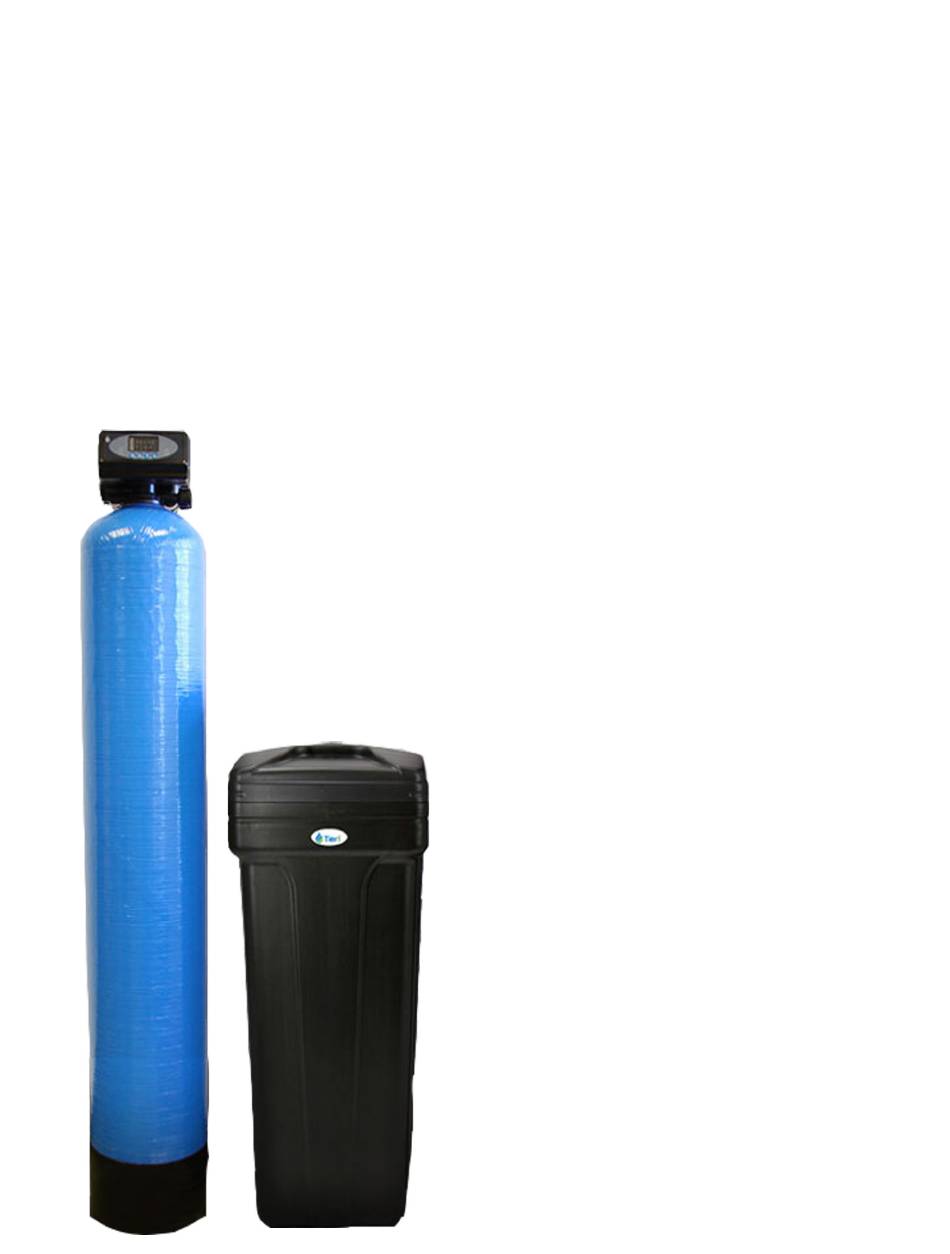

- Page 1 Owner’s Manual QUANTUM TIER1-AR2 ater oftener...
- Page 2 What’s Included ..............3 Operating Conditions ............5 Assembly Instructions ............7 Master Programming ............13 Care and Maintenance ............17...
-
Page 3: Control Valve
What is included with the TIER1-AR2 Check the entire unit for any shipping-related damage, missing parts, or damage to shipping cartons. Contact the transportation company for all damage and loss claims. Tier1 is not responsible for damage in transit. Small parts ®... -
Page 4: Operating Conditions
Operating Conditions This softening system will operate at maximum efficiency under the following conditions: Operating Conditions Working pressure 21 psi to 120 psi Working conditions Water temperature 40°F - 120°F (5° C - 50°C) Environment temperature 40°F - 120°F (5°C - 50°C) Working Environment Relative humidity ≤95% when temperature is 25C/77°F... - Page 5 Assembly Instructions Locate the following parts: Brine Tank - Inside the brine tank you will find: A. Control Valve with B. Bypass with 4 clips C. Clear Drain Tubing (10’) D. PVC Tubing E. Upper Distributor F. Brine Valve G. Brine Well H.
-
Page 6: Prior To Assembly
Prior to Assembly IMPORTANT NOTE: To avoid irreversible damage to connector threading, hand tighten plastic connections first. If leaks are noted during initial start up, gently tighten with tool. 1. Prior to installation of this water softener, ensure you are aware of local laws and codes regarding the installation, use, and maintenance of water softeners. - Page 7 Assembly Instructions STEP 1: Attach the Control Valve to the Resin Tank A. Locate the Master O-ring (from Parts Bag B) and lightly coat with silicone lubricant (from Owner’s Manual Zip- lock Bag). Insert into bottom of control valve as shown below. B.
- Page 8 Assembly Instructions STEP 2: Connect Bypass Valve to Control Valve A. Attach bypass valve to control valve by firmly pushing inlet and outlet of bypass valve into control valve. Install plastic clips to secure bypass. B. Connect inlet and outlet elbow connectors to pipe connection end of bypass valve. Install plastic clips. C.
- Page 9 Assembly Instructions STEP 3: Connect Brine Line to the Brine Tank A. Remove brine well cap from brine well. B. Locate brine well bracket and blue “C” clamp in Parts Bag A. Brine well bracket Blue “C” clamp FIGURE 1.1 Threaded Nut C.
- Page 10 Assembly Instructions STEP 4: Connect Brine Line to the Control Valve A. Slide brine nut over end of brine tube. Insert brine tube bushing/filter screen into the end of brine tube. B. Insert brine tubing into brine line connector. C. Tighten hexagonal nut onto brine line connector. Clip O-ring Brine line flow control...
- Page 11 Assembly Instructions FIGURE 1.2 STEP 6: Connect overflow drain line to brine tank A. Locate overflow elbow (in Parts Bag A.) Remove nut from threading. Insert drain elbow (1) in bottom half of brine tank below brine line as shown in Figure 1.2. B.
-
Page 12: Flushing The Water Lines
Flushing the water lines Before operating water softener for the first time, flush out your water lines and the water softener bypass. 1. Turn off the water source at the inlet to your home. 2. Disconnect the bypass from the control valve. 3. - Page 13 Programming Valve Programming Instructions When control valve is first plugged in, screen will show “F79”. After a minute, a beep will sound and the button lock indicator- - will display. The default time of day - 12:12 - will flash in the middle of the screen. To begin programming, press and hold both up and down keys for 5 seconds until the button lock...
-
Page 14: Water System
Programming Control Valve Display while in Service While in service, the control valve rotates between the following screens: 12:12:00 Screen 1: Water System Button lock key Current time of day in 24-hour clock In-Service Number of gallons remaining to be used before triggering a regeneration. Water Note: Typical water usage is calculated at 75 gallons per person per day. -
Page 15: Manual Regeneration
Programming After Control Valve has been programmed, perform the following steps before first use: Open a water line and let water flow until water runs clear. Press and hold both up and down keys simultaneously for 3 seconds to unlock the key pad. Press Regen key to advance through each cycle, following the below instructions. - Page 16 Bypass Valve Information Automatic Bypass Information Top view of bypass assembly The automatic bypass is controlled by the settings chosen on the control valve. The keys on the bypass valve serve no function when connected to the control valve and should not be used. Bypass stages The bypass stage used by the automatic bypass is determined by the water hardness setting selected during...
-
Page 17: Care And Maintenance
Care and Maintenance Bridging Humidity or the wrong type of salt may create a cavity between the water and the salt. This action, known as “bridging”, prevents the brine solution from being made, preventing the water softener from working. If you suspect salt bridging, carefully pound on the outside of the plastic brine tank, or pour some warm water over the salt to break up the bridge. - Page 18 TIER1-AR2 ater oftener SOMETHING NOT RIGHT? Our Support Team is here to assist you. We’re happy to answer any questions you may have. Quality Water Treatment Quantum Authorized Dealer 866-278-4130 www.QualityWaterTreatment.com Version 1.15.21...
