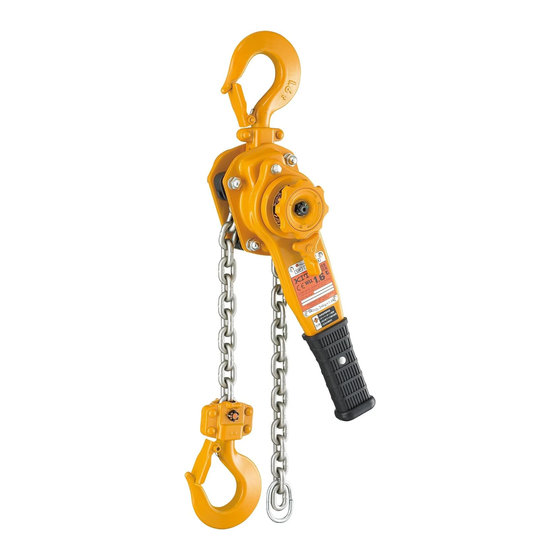

Manually lever operated chain hoist
Hide thumbs
Also See for L5:
- Owner's manual and safety instructions (40 pages) ,
- Owner's manual and safety instructions (38 pages) ,
- Supplementary manual (8 pages)
Related Manuals for KITO L5
Summary of Contents for KITO L5
- Page 1 OM-L5OLZZ-CEE-00 SUPPLEMENTARY MANUAL Owner’s (Operator’s) Manual and Safety Instructions Manually Lever Operated Chain Hoist Model L5 with Overload Limiter...
- Page 2 Introduction This manually lever operated chain hoist model L5 with the overload limiter is equipped with a friction clutch. This clutch is designed to protect the hoist against damage by slipping the lever in the event of excessive overload lifting.
- Page 3 ■ Specifications The manually lever operated chain hoist model L5 with the overload limiter is designed to protect the hoist body and load chain against damage with the friction clutch in the event of excessive overload in lifting operation. The clutch slips the select wheel compressed between the clutch plates by the force of the cone disc spring.
-
Page 4: Daily And Periodic Inspection
Follow the instructions in Owner’s (Operator’s) Manual and Safety Instructions for Manually Lever Operated Chain Hoist Model L5. ■ PERIODIC Inspection In addition to the items in Owner’s (Operator’s) Manual for Manually Lever Operated Chain Hoist Model L5, check the following items as well. Item Method Criteria Action Length ｌ... -
Page 5: Troubleshooting
Troubleshooting In addition to the items in Owner’s (Operator’s) Manual for Manually Lever Operated Chain Hoist Model L5, check the following items as well. Symptom Cause Remedy Hoist will not lift Failure of the overload limiter and other Contact your dealer. -
Page 6: Parts List
Parts List The following list shows the dedicated parts for Manually Lever Operated Chain Hoist L5 with the overload limiter. For the common parts with the standard L5 product, see Owner’s (Operator’s) Manual and Safety Instructions for Manually Lever Operated Chain Hoist L5. - Page 7 Global Website: kito.com...
