7.4

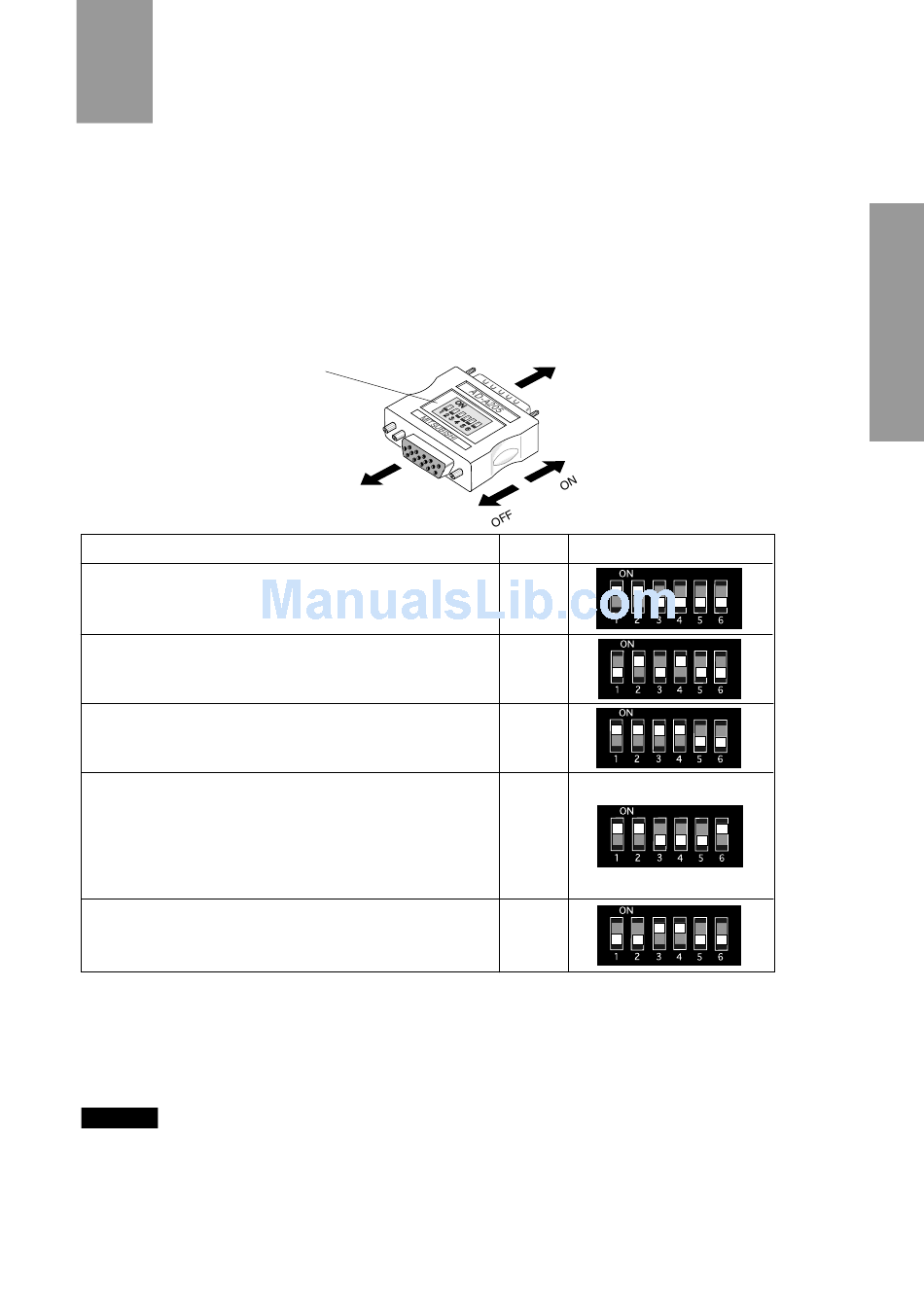

Macintosh Adapter AD-A205 settings

The AD-A205 Macintosh Adapter allows you to take advantage of the built in video capabilities of
your Macintosh computer with the monitor.
(1) Set dip switches of adapter, before connect to the computer.
(2) Set dip switches according to the following chart.
By using the following chart, you can choose a main resolution, quickly.
If you wish to operate by other resolution, refer to next page; "AD-A205 Mac Adapter setting
chart"
DIP Switches
Apple Macintosh
Macintosh IIsi, IIci, IIvi, IIvx, LC, LC II
Macintosh LC III, LC475, LC630
Macintosh Quadra 610, 650, 700, 800, 840AV, 900, 950
Macintosh Centris 610, 650, 660AV
Performa 6260, 6310, 6410, 6420
Power Macintosh 6100, 6100AV, 6200, 6300
Power Macintosh 7100AV, 7200, 7300, 7500, 7600
Power Macintosh 8100, 8100AV, 8500, 8600
Power Macintosh 9500, 9600
Workgroup Server 7350, 8150, 9150, 9650
Power Macintosh 4400, G3
(3) "AD-A205 Mac Adapter setting chart" shows all available modes for Macintosh systems and
all possible combinations with the monitor.
However, we recommend you to use the monitor with a preset timing. (See 1.2 Internal Preset
Memory Capability)
(4) Please refer to instruction book of your computer about resolution setting.
Resolution may not be changed on some computers.
N O T E
1. Resolution does not change with the computer powered on when you set dip switches.
Be sure to power off the computer when you set dip switches.
2. Set dip switches by pointed article like pencils or ball paint pen to touch end of switch groove.
Display Monitor
Macintosh
Switch
Switch Setting
ON
1,2
2,4
1,2,3,4
1,2,6
3,4
