Disassembly Instructions
NOTICE
DO NOT discard any component unless
directed to do so. All mounting hardware
will be re-used during the installation
of the compressor kit.
WARNING
To avoid the risk of shock, ensure to
disconnect power to the heater unit
during disassembly/reassembly.

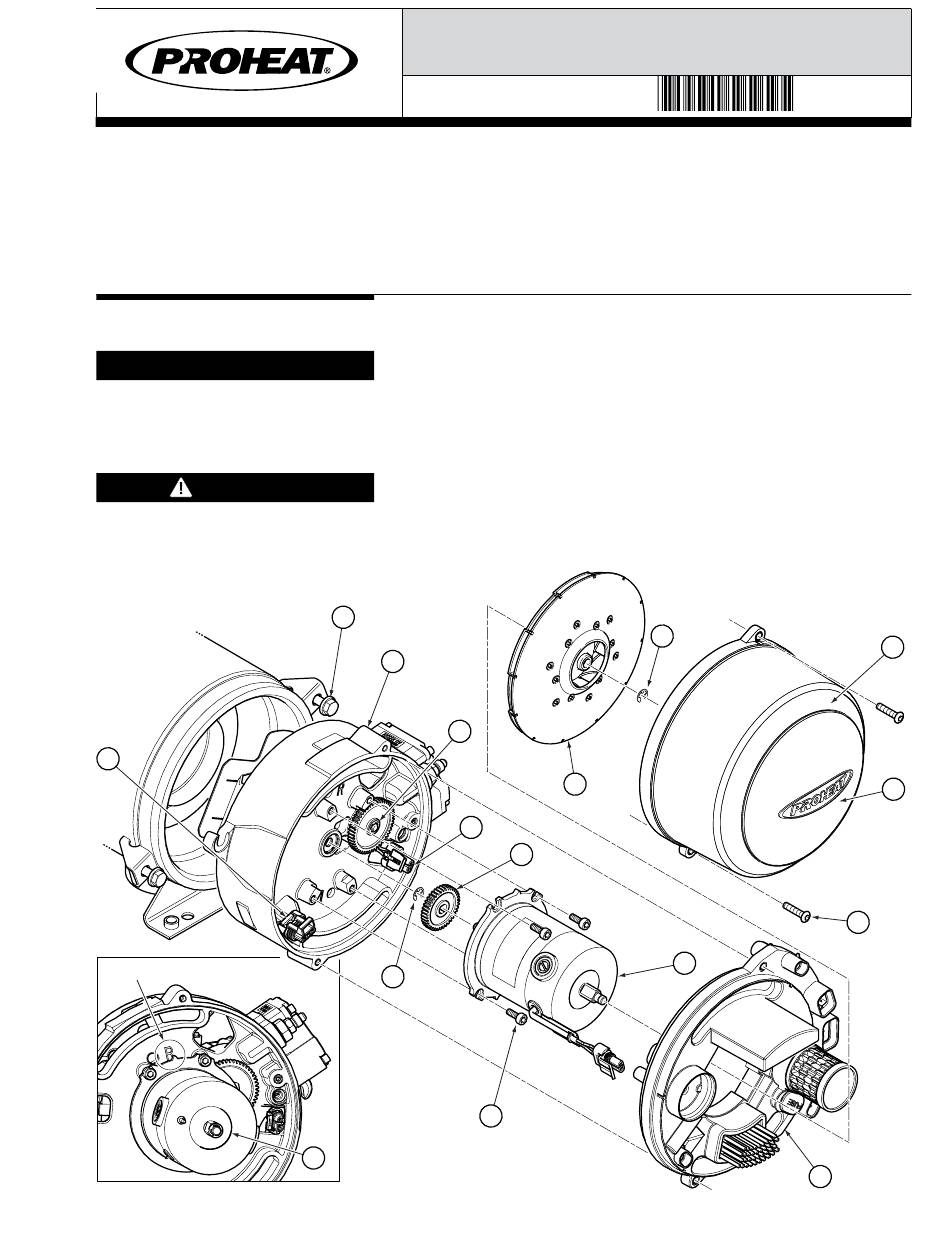

Figure A.
8
SHOWN IN "R" POSITION
© 2010 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6
INSTALLATION INSTRUCTIONS
Copy Part# 206000, Rev. E
Date: 05/2017

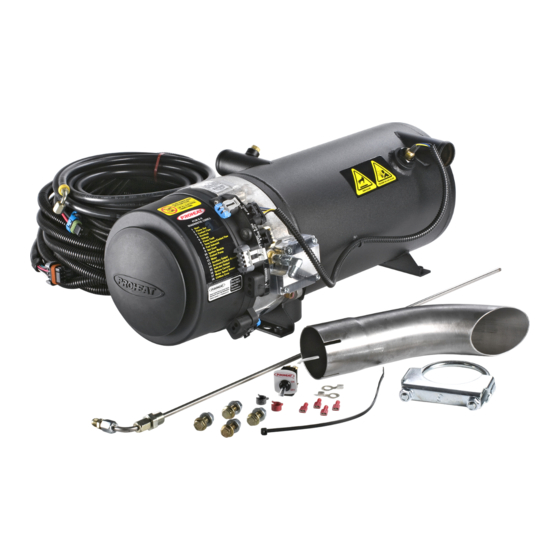

M-SERIES DIAPHRAGM
COMPRESSOR REBUILD KIT
Part# 200690K
1. Disconnect all harnesses at the PCM.
2. Disconnect the fuel supply line.
3. Referring to figure A, loosen and back out the burner head mounting
bolts (item 1) allowing enough room to rotate the burner head 15°
counter-clockwise and remove.
4. Remove the blower housing (item 3) by removing the two M6 screws
(item 2). Item 3a may vary in appearance depending on the type of
heater model. Note initial orientation of blower housing.
5. Remove the combustion air blower (item 5) by removing the retaining
ring (item 4).
6. Disconnect the motor (item 6), fuel solenoid (item 7), and ignition
module (item 8) at the PCM (item 9), then carefully slide off the PCM
to avoid damaging the motor wires.
1
15
4
7
4
10
6
4
5
11
6
Tel: 604.270.6899
Page 1 of 9
3
3a
2
9
Web: www.proheat.com
