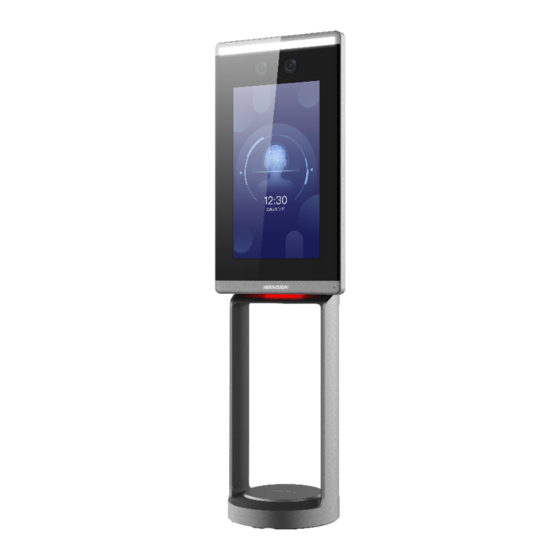

DS-K5671 Series Face Recognition Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K5671 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K5671 Series

Summary of Contents for HIKVISION DS-K5671 Series

  • Page 1 DS-K5671 Series Face Recognition Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K5671 Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K5671 Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K5671 Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K5671 Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K5671 Series Face Recognition Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K5671 Series Face Recognition Terminal User Manual Available Models Product Name Model Face Recognition Terminal DS-K5671-ZV DS-K5671-ZH DS-K5671-ZU Use only power supplies listed in the user instructions: Model Manufacturer Standard C2000IC12.0-24P-DE MOSO Power Supply Technology Co., Ltd. C2000IC12.0-24P-GB MOSO Power Supply Technology Co., Ltd.

  • Page 10: Table Of Contents

    DS-K5671 Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Installation ......................... 4 3.1 Installation Environment ......................4 3.2 Mount With Bracket ....................... 4 3.2.1 Preparation before Mounting with Bracket ..............
  • Page 11 DS-K5671 Series Face Recognition Terminal User Manual 7.1.1 Login by Administrator ....................36 7.1.2 Login by Activation Password ..................39 7.2 Communication Settings ...................... 40 7.2.1 Set Wired Network Parameters .................. 41 7.2.2 Set Wi-Fi Parameters ....................42 7.2.3 Set RS-485 Parameters ....................44 7.2.4 Set Wiegand Parameters .....................
  • Page 12 DS-K5671 Series Face Recognition Terminal User Manual 7.9.4 Set Manual and Auto Attendance via Device .............. 64 7.10 System Maintenance ......................65 7.11 Video Intercom ........................67 7.11.1 Call Client Software from Device ................67 7.11.2 Call Center from Device .................... 68 7.11.3 Call Device from Client Software ................
  • Page 13 DS-K5671 Series Face Recognition Terminal User Manual 8.5.15 Set Image Parameters ....................86 8.5.16 Set Supplement Light Brightness ................87 8.5.17 Time and Attendance Settings .................. 87 8.5.18 Set Video Intercom Parameters ................90 8.5.19 Access Control Settings ..................... 91 8.5.20 Set Biometric Parameters ..................
  • Page 14 DS-K5671 Series Face Recognition Terminal User Manual 9.4.11 Import and Export Person Identify Information ............127 9.4.12 Import Person Information ..................127 9.4.13 Import Person Pictures ................... 127 9.4.14 Export Person Information ..................128 9.4.15 Export Person Pictures .................... 128 9.4.16 Delete Registered Pictures ..................
  • Page 15 DS-K5671 Series Face Recognition Terminal User Manual 9.9 Door Control ........................160 9.9.1 Control Door Status ....................160 9.9.2 Check Real-Time Access Records ................161 9.10 Event Center ........................162 9.10.1 Enable Receiving Event from Devices ..............162 9.10.2 View Real-Time Events .................... 163 9.10.3 Search Historical Events ..................

  • Page 16: Chapter 1 Overview

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.

  • Page 17: Chapter 2 Appearance

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the face recognition terminal: Figure 2-1 Face Recognition Terminal Diagram Table 2-1 Description of Face Recognition Terminal Name Description White Light Supplement light for camera.
  • Page 18 DS-K5671 Series Face Recognition Terminal User Manual Name Description Debugging Port The debug terminal is used for debugging only. Network Interface Connect to Ethernet.

  • Page 19: Chapter 3 Installation

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Avoid backlight, direct sunlight, and indirect sunlight. ● For better recognition, there should be light source in or near the installation environment. ● The minimum bearing weight of the wall or other places should be 3 times heavier than the ●...
  • Page 20 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-1 Drill Holes on Turnstile 3. Solder the other four holes, polish the surface, and implement wire drawing. 4. Solder circular tubes on the turnstile’s inner surface to avoid water from entering.

  • Page 21: Mount Bracket I

    DS-K5671 Series Face Recognition Terminal User Manual Figure 3-2 Solder Tubes 3.2.2 Mount Bracket I Steps 1. Install the base on the turnstile. 1) Align the hole on the turnstile and place the base on the turnstile. 2) Rotate the base to the acquired place and make sure the device will face a correct direction.
  • Page 22 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-3 Install Base Note The arrow indication on the base and the turnstile should be approximately vertical. ● Refer to the scales and scale arrow on the base to confirm the screws position. The screws' ●...
  • Page 23 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-4 Screw Position 2. Route the cables through the cable hole on the turnstile. 3. Install the bracket on the base. 1) Place the device with bracket on the base and make sure the arrow on the base is aligned with the arrow shaped slot on the bracket.
  • Page 24 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-5 Secure Lower Cover and Turnstile 4. Secure the upper cover. 1) Align the arrow indication on the base with that inside the upper cover. 2) Place the upper cover in the lower cover.

  • Page 25: Mount Bracket Ii

    DS-K5671 Series Face Recognition Terminal User Manual Figure 3-6 Secure Upper Cover 5. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.2.3 Mount Bracket II Steps...
  • Page 26 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-7 Remove Lower Cover 2. Route the cables through the cable hole on the turnstile. 3. Align the holes on the base with those on the turnstile and place the device with bracket on the turnstile.
  • Page 27 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-8 Secure Bracket and Turnstile 5. Install the lower cover back on the base and rotate to secure. 6. Adjust the device elevation. 1) Loosen the screws inside. 2) Adjust the device elevation.

  • Page 28: Mount Bracket Iii

    DS-K5671 Series Face Recognition Terminal User Manual Figure 3-10 Adjust Elevation 7. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.2.4 Mount Bracket III Steps 1. Route the cables through the cable hole on the turnstile.
  • Page 29 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-11 Install Bracket on Turnstile 3. Optional: By default, a decoration sheet is on the bracket. You can replace it by the arch shaped decoration (supplied) when the default one cannot cover all holes on the turnstile.
  • Page 30 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-12 Remove Screws 2) Align the screw holes on the arch shaped decoration with the those on the bracket and secure them with 2 screws. Figure 3-13 Arch Shaped Decoration 4. Rotate to adjust the bracket's angle and secure the bracket on the turnstile with 2 screws.
  • Page 31 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-14 Secure Bracket 5. Align the device with the bracket and slide the device in the bracket. Make sure the two sheets of the mounting plate are in the slots.
  • Page 32 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-15 Install Device 6. Secure the device and the bracket with a screw.
  • Page 33 DS-K5671 Series Face Recognition Terminal User Manual Figure 3-16 Secure Device 7. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen.

  • Page 34: Chapter 4 Wiring

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 4 Wiring You can connect the RS-485 terminal with the RS-485 card reader, connect the NC and COM terminal with the door lock, connect the SENSOR terminal with the door contact, the BTN/GND...
  • Page 35 DS-K5671 Series Face Recognition Terminal User Manual Figure 4-1 Terminal Diagram The descriptions of the terminals are as follows:...
  • Page 36 DS-K5671 Series Face Recognition Terminal User Manual Table 4-1 Terminal Descriptions Group Function Color Name Description Group A Power Input +12 V 12 VDC Power Supply Black Ground Group B Alarm Input Yellow/Blue Alarm Input 1 Yellow/Black Ground Yellow/Orange IN2...

  • Page 37: Wire Normal Device

    DS-K5671 Series Face Recognition Terminal User Manual Group Function Color Name Description Yellow/Green SENSOR Door Contact Yellow/Gray Exit Door Wiring 4.2 Wire Normal Device You can connect the terminal with normal peripherals. The wiring diagram without secure door control unit is as follows.

  • Page 38: Wire Secure Door Control Unit

    DS-K5671 Series Face Recognition Terminal User Manual 4.3 Wire Secure Door Control Unit You can connect the terminal with the secure door control unit. The wiring diagram is as follows. Figure 4-3 Secure Door Control Unit Wiring Note The secure door control unit should connect to an external power supply separately. The suggested...

  • Page 39: Chapter 5 Activation

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.
  • Page 40 DS-K5671 Series Face Recognition Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least...

  • Page 41: Activate Via Web Browser

    DS-K5671 Series Face Recognition Terminal User Manual characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.

  • Page 42: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 43: Activate Device Via Client Software

    DS-K5671 Series Face Recognition Terminal User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 44 DS-K5671 Series Face Recognition Terminal User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 45: Chapter 6 Quick Operation

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 6 Quick Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system.
  • Page 46 DS-K5671 Series Face Recognition Terminal User Manual Figure 6-1 Select System Language By default, the system language is English. Note After you change the system language, the device will reboot automatically.

  • Page 47: Set Application Mode

    DS-K5671 Series Face Recognition Terminal User Manual 6.2 Set Application Mode After activating the device, you should select an application mode for better device application. Steps 1. On the Welcome page, select Indoor or Others from the drop-down list. Figure 6-2 Welcome Page...

  • Page 48: Set Administrator

    DS-K5671 Series Face Recognition Terminal User Manual Note You can also change the settings in System Settings. ● If you install the device indoors near the window or the face recognition function is not ● working well, select Others. If you do not configure the application mode and tap Next, the system will select Indoor by ●...
  • Page 49 DS-K5671 Series Face Recognition Terminal User Manual Figure 6-3 Add Administrator Page 3. Select a credential to add. Note Up to one credential should be added. : Face forward at the camera. Make sure the face is in the face recognition area. Click capture and click to confirm.
  • Page 50 DS-K5671 Series Face Recognition Terminal User Manual : Enter the card No. or present card on the card presenting area. Click OK. 4. Click OK. You will enter the authentication page. Status Icon Description Device is armed/not armed. Hik-Connect is enabled/disabled.

  • Page 51: Chapter 7 Basic Operation

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.
  • Page 52 DS-K5671 Series Face Recognition Terminal User Manual Figure 7-1 Admin Login 2. Authenticate the administrator's face or card to enter the home page.
  • Page 53 DS-K5671 Series Face Recognition Terminal User Manual Figure 7-2 Home Page Note The device will be locked for 30 minutes after 5 failed attempts. 3. Optional: Tap and you can enter the device activation password for login. 4. Optional: Tap...

  • Page 54: Login By Activation Password

    DS-K5671 Series Face Recognition Terminal User Manual 7.1.2 Login by Activation Password You should login the system before other device operations. If you do not configure an administrator, you should follow the instructions below to login. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture to enter password entering page.

  • Page 55: Communication Settings

    DS-K5671 Series Face Recognition Terminal User Manual Figure 7-3 Home Page 7.2 Communication Settings You can set the network parameters, the Wi-Fi parameter, the RS-485 parameters, and the Wiegand parameters on the communication settings page.

  • Page 56: Set Wired Network Parameters

    DS-K5671 Series Face Recognition Terminal User Manual 7.2.1 Set Wired Network Parameters You can set the device wired network parameters, including the IP address, the subnet mask, the gateway, and DNS parameters. Steps 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page.

  • Page 57: Set Wi-Fi Parameters

    DS-K5671 Series Face Recognition Terminal User Manual - Disable DHCP, and you should set the IP address, subnet mask, and gateway manually. Note The device's IP address and the computer IP address should be in the same IP segment. 4. Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the alternate DNS server.
  • Page 58 DS-K5671 Series Face Recognition Terminal User Manual Figure 7-5 Wi-Fi Settings 3. Enable the Wi-Fi function. 4. Configure the Wi-Fi parameters. - Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK. - If the target Wi-Fi is not in the list,tap Add Wi-Fi. Enter the Wi-Fi's name and password. And tap OK.

  • Page 59: Set Rs-485 Parameters

    DS-K5671 Series Face Recognition Terminal User Manual - If disable DHCP, you should enter the IP address, the subnet mask, and the gateway manually. 6. Tap OK to save the settings and go back to the Wi-Fi tab. 7. Tap to save the network parameters.

  • Page 60: Set Wiegand Parameters

    DS-K5671 Series Face Recognition Terminal User Manual Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address according to the door No.

  • Page 61: Add Administrator

    DS-K5671 Series Face Recognition Terminal User Manual 7.3.1 Add Administrator The administrator can login the device backend and configure the device parameters. Steps 1. Long tap on the initial page and log in the backend. 2. Tap User → + to enter the Add User page.
  • Page 62 DS-K5671 Series Face Recognition Terminal User Manual Steps Note Up to 50,000 face pictures can be added. 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture and log in the backend.
  • Page 63 DS-K5671 Series Face Recognition Terminal User Manual Figure 7-8 Add Face Picture 6. Look at the camera.

  • Page 64: Add Card

    DS-K5671 Series Face Recognition Terminal User Manual Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate. ● For details about the instructions of adding face pictures, see Tips When Collecting/ ●...

  • Page 65: View Password

    DS-K5671 Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 6. Tap the Card field and tap +.

  • Page 66: Set Authentication Mode

    DS-K5671 Series Face Recognition Terminal User Manual Note Numbers, upper case letters, lower case letters, and special characters are allowed in the user ● name. The suggested user name should be within 32 characters. ● 5. Tap the Password to view the password.

  • Page 67: Data Management

    DS-K5671 Series Face Recognition Terminal User Manual Search User On the User Management page, Tap the search area to enter the Search User page. Tap Card on the left of the page and select a search type from the drop-down list. Enter the employee ID, card No., or the user name for search.

  • Page 68: Export Data

    DS-K5671 Series Face Recognition Terminal User Manual If the folder enroll_pic cannot save all imported pictures, you can create another folders, ● named enroll_pic1, enroll_pic2, enroll_pic3, enroll_pic4, under the root directory. The employee ID should be less than 32 characters. It can be a combination of lower letters, ●...

  • Page 69: Authenticate Via Multiple Credential

    DS-K5671 Series Face Recognition Terminal User Manual Face forward at the camera and start authentication via face. Card Present the card on the card presenting area and start authentication via card. Note The card can be normal IC card, or encrypted card.
  • Page 70 DS-K5671 Series Face Recognition Terminal User Manual Long tap on the initial page for 3 s and slide to the left/right by following the gesture and login the device home page. Tap Basic. Figure 7-9 Basic Settings Page shortcut key, voice, time, language, supplement light, community No., building No., and Unit No.
  • Page 71 DS-K5671 Series Face Recognition Terminal User Manual Note If the combination authentication of face and QR code is supported, and the QR code ● shortcut key is disabled ( there is no QR code shortcut key icon in the authentication page), you can scan the QR code in the middle of the authentication page to authenticate.

  • Page 72: Set Biometric Parameters

    DS-K5671 Series Face Recognition Terminal User Manual Note By default, the function is disabled. Advertisement You can enable the advertisement function, and the advertisement will be displayed on the authentication page. The advertisement can be added in web browser. For details, see Set Notice Publication .
  • Page 73 DS-K5671 Series Face Recognition Terminal User Manual Parameter Description Face 1:1 Security Level Set the matching threshold when authenticating via 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate.

  • Page 74: Set Access Control Parameters

    DS-K5671 Series Face Recognition Terminal User Manual 7.8 Set Access Control Parameters You can set the access control permissions, including the functions of authentication mode, enable NFC card, door contact, and door open time. On the Home page, tap ACS (Access Control Settings) to enter the Access Control Settings page.

  • Page 75: Time And Attendance Status Settings

    DS-K5671 Series Face Recognition Terminal User Manual Parameter Description Note Biometric recognition products are not 100% applicable to ● anti-spoofing environments. If you require a higher security level, use multiple authentication modes. If you adopt multiple authentication modes, you should ●...

  • Page 76: Set Manual Attendance Via Device

    DS-K5671 Series Face Recognition Terminal User Manual Figure 7-12 Disable Attendance Mode Set the Attendance Mode as Disable. You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform.

  • Page 77: Set Auto Attendance Via Device

    DS-K5671 Series Face Recognition Terminal User Manual Figure 7-13 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.
  • Page 78 DS-K5671 Series Face Recognition Terminal User Manual Before You Start Add at least one user, and set the user's authentication mode. For details, see User Management. Steps 1. Tap T&A Status to enter the T&A Status page. 2. Set the Attendance Mode as Auto.

  • Page 79: Set Manual And Auto Attendance Via Device

    DS-K5671 Series Face Recognition Terminal User Manual Result When you authenticate on the initial page, the authentication will be marked as the configured attendance status according to the configured schedule. Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break.

  • Page 80: System Maintenance

    DS-K5671 Series Face Recognition Terminal User Manual Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required. The name will be displayed on the T & A Status page and the authentication result page.
  • Page 81 DS-K5671 Series Face Recognition Terminal User Manual Figure 7-16 Maintenance Page System Information You can view the device model, serial No., versions, address, production data, QR code, and open source code license. Note The page may vary according to different device models. Refers to the actual page for details.

  • Page 82: Video Intercom

    DS-K5671 Series Face Recognition Terminal User Manual Restore to Default Settings All parameters, except for the communication settings, remotely imported user information, will be restored to the default settings. The system will reboot to take effect. Restore to Factory Settings All parameters will be restored to the factory settings.

  • Page 83: Call Center From Device

    DS-K5671 Series Face Recognition Terminal User Manual 7.11.2 Call Center from Device Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts. 2. Run the client software and the control panel of the software pops up.

  • Page 84: Call Room From Device

    DS-K5671 Series Face Recognition Terminal User Manual 7. Click Start Two-Way Audio to start two-way audio between the device and the client software. 7.11.4 Call Room from Device Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts.

  • Page 85: Chapter 8 Operation Via Web Browser

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 8 Operation via Web Browser 8.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. For detailed information about activation, see Activation .
  • Page 86 DS-K5671 Series Face Recognition Terminal User Manual Figure 8-1 Live View Page Function Descriptions: Select the image size when starting live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds.

  • Page 87: Person Management

    DS-K5671 Series Face Recognition Terminal User Manual 8.3 Person Management Click and add the person's information, including the basic information, card, authentication mode, and the picture. Click OK to save the person. Add Basic Information Click User → Add to enter the Add Person page.

  • Page 88: Search Event

    DS-K5671 Series Face Recognition Terminal User Manual 8.4 Search Event Click Search to enter the Search page. Figure 8-2 Search Page Enter the search conditions, including the employee ID, the name, the card No., the start time, and the end time, and click Search.

  • Page 89: View Device Information

    DS-K5671 Series Face Recognition Terminal User Manual Set Live View Parameters Click Configuration → Local to enter the Local page. Configure the stream type, the play performance, auto start live view, and the image format and click Save. Set Record File Saving Path Click Configuration →...

  • Page 90: Set Dst

    DS-K5671 Series Face Recognition Terminal User Manual You should set the NTP server's IP address, port No., and interval. Manual By default, the device time should be synchronized manually. You can set the device time manually or check Sync. with Computer Time to synchronize the device time with the computer's time.
  • Page 91 DS-K5671 Series Face Recognition Terminal User Manual Figure 8-5 Upgrade and Maintenance Page Click Reboot to start reboot the device. Restore Parameters Click Configuration → System → Maintenance → Upgrade & Maintenance . Restore All All parameters will be restored to the factory settings. You should activate the device before usage.

  • Page 92: Log Query

    DS-K5671 Series Face Recognition Terminal User Manual Upgrade Click Configuration → System → Maintenance → Upgrade & Maintenance . Select an upgrade type from the drop-down list. Click and select the upgrade file from your local PC. Click Upgrade to start upgrading.

  • Page 93: Certificate Management

    DS-K5671 Series Face Recognition Terminal User Manual 8.5.9 Certificate Management It helps to manage the server/client certificates and CA certificate. Note The function is only supported by certain device models. Create and Install Self-signed Certificate Steps 1. Go to Configuration → System → Security → Certificate Management .

  • Page 94: Change Administrator's Password

    DS-K5671 Series Face Recognition Terminal User Manual Steps 1. Go to Configuration → System → Security → Certificate Management . 2. Create an ID in the Inport CA Certificate area. Note The input certificate ID cannot be the same as the existing ones.
  • Page 95 DS-K5671 Series Face Recognition Terminal User Manual Note Some device models do not support Wi-Fi settings. Refer to the actual products when configuration. Set Basic Network Parameters Click Configuration → Network → Basic Settings → TCP/IP . Figure 8-6 TCP/IP Settings Page Set the parameters and click Save to save the settings.
  • Page 96 DS-K5671 Series Face Recognition Terminal User Manual It refers to the port of real-time streaming protocol. HTTPS Set the HTTPS for accessing the browser. Certificate is required when accessing. Server It refers to the port through which the client adds the device.
  • Page 97 DS-K5671 Series Face Recognition Terminal User Manual Report Strategy Settings You can set the center group for uploading the log via the ISUP protocol. Go to Configuration → Network → Basic Settings → Report Strategy . You can set the center group and the system will transfer logs via ISUP protocol. Click Save to save the settings.

  • Page 98: Set Video And Audio Parameters

    DS-K5671 Series Face Recognition Terminal User Manual Steps Note The function should be supported by the device. 1. Click Configuration → Network → Advanced Settings → Platform . 2. Select ISUP from the platform access mode drop-down list. 3. Check Enable.

  • Page 99: Customize Audio Content

    DS-K5671 Series Face Recognition Terminal User Manual Figure 8-8 Video Settings Page Set the stream type, the video type, the bitrate type, the frame rate, the Max. bitrate, and the video encoding. Click Save to save the settings after the configuration.
  • Page 100 DS-K5671 Series Face Recognition Terminal User Manual Figure 8-9 Customize Audio Content 2. set the appellation. 3. Enable the function. 4. Set the time duration when authentication succeeded. 1) Click Add. 2) Set the time duration and the language. Note If authentication is succeeded in the configured time duration, the device will broadcast the configured content.

  • Page 101: Set Image Parameters

    DS-K5671 Series Face Recognition Terminal User Manual 3) Enter the audio content. 4) Optional: Repeat substep 1 to 3. 5) Optional: Click to delete the configured time duration. 6. Click Save to save the settings. 8.5.15 Set Image Parameters Set the video standard, WDR, brightness, contrast, saturation, and sharpness.

  • Page 102: Set Supplement Light Brightness

    DS-K5671 Series Face Recognition Terminal User Manual When there are both very bright and very dark areas simultaneously in the view, WDR balances the brightness level of the whole image and provide clear images with details. Brightness/Contrast/Saturation/Sharpness Drag the block or enter the value to adjust the live video's brightness, contrast, saturation, and sharpness.
  • Page 103 DS-K5671 Series Face Recognition Terminal User Manual Steps 1. Click Configuration → Attendance to enter the settings page. 2. Set the Attendance Mode as Disable. Result You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform.
  • Page 104 DS-K5671 Series Face Recognition Terminal User Manual Note If you do not select a status, the authentication will be failed and it will not be marked as a valid attendance. Set Auto Attendance via Web Set the attendance mode as auto, and you can set the attendance status and its available schedule.

  • Page 105: Set Video Intercom Parameters

    DS-K5671 Series Face Recognition Terminal User Manual Result On the initial page and authenticate. The authentication will be marked as the configured attendance status according to the schedule. If you tap the edit icon on the result tab, you can select a status to take attendance manually, the authentication will be marked as the edited attendance status.

  • Page 106: Access Control Settings

    DS-K5671 Series Face Recognition Terminal User Manual Unit No. Set the device installed unit No. Floor No. Set the device installed floor No. Door Station No. Set the device installed floor No. Note If you change the No., you should reboot the device.
  • Page 107 DS-K5671 Series Face Recognition Terminal User Manual Main Card Reader You can configure the device card reader's parameters. Sub Card Reader You can configure the connected peripheral card reader's parameters. If select Main Card Reader: Card Reader Type/Card Reader Description Get card reader type and description.
  • Page 108 DS-K5671 Series Face Recognition Terminal User Manual Recognition Interval If the interval between card presenting of the same card is less than the configured value, the card presenting is invalid. Authentication Interval You can set the authentication interval of the same person when authenticating. The same person can only authenticate once in the configured interval.
  • Page 109 DS-K5671 Series Face Recognition Terminal User Manual Name You can create a name for the door. Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked. Door Open Timeout Alarm An alarm will be triggered if the door has not been closed within the configured time duration.
  • Page 110 DS-K5671 Series Face Recognition Terminal User Manual In order to prevent the mobile phone from getting the data of the access control, you can enable NFC card to increase the security level of the data. Enable M1 Card Enable M1 card and authenticating by presenting M1 card is available.
  • Page 111 DS-K5671 Series Face Recognition Terminal User Manual Select a peripheral from the drop-down list according the actual situation. You can select from Card Reader, Extension Module, Access Controller, or Disable. Note After the peripheral is changed and saved, the device will reboot automatically.
  • Page 112 DS-K5671 Series Face Recognition Terminal User Manual 4. Click Save to save the settings. Note If you change the peripheral, and after you save the device parameters, the device will reboot automatically. Set Privacy Parameters Set the event storage type, picture upload and storage parameters, and the picture clearing parameters.

  • Page 113: Set Biometric Parameters

    DS-K5671 Series Face Recognition Terminal User Manual Clear All Pictures in Device Note All pictures cannot be restored once they are deleted. Clear Registered Face Pictures All registered pictures in the device will be deleted. Clear Captured Pictures All captured pictures in the device will be deleted.
  • Page 114 DS-K5671 Series Face Recognition Terminal User Manual Figure 8-15 Smart Settings Page Click Save to save the settings after the configuration. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.
  • Page 115 DS-K5671 Series Face Recognition Terminal User Manual Note Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes. Live Face Detection Security Level After enabling the face anti-spoofing function, you can set the matching security level when performing live face authentication.
  • Page 116 DS-K5671 Series Face Recognition Terminal User Manual After enabling the ECO mode, the device will use the IR camera to authenticate faces in the low light or dark environment. And you can set the ECO mode threshold, ECO mode (1:N), and ECO mode (1:1).

  • Page 117: Set Notice Publication

    DS-K5671 Series Face Recognition Terminal User Manual Click to record videos or capture pictures. 8.5.21 Set Notice Publication You can set the screen saver and the sleep time for the device. Click Configuration → Notice Publication . Figure 8-16 Notice Page...
  • Page 118 DS-K5671 Series Face Recognition Terminal User Manual Drag the block or enter the number to set the slide show interval. The picture will be changed according to the interval.

  • Page 119: Chapter 9 Client Software Configuration

    DS-K5671 Series Face Recognition Terminal User Manual Chapter 9 Client Software Configuration 9.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 9-1 Flow Diagram of Configuration on Client Software 9.2 Device Management...

  • Page 120: Add Device

    DS-K5671 Series Face Recognition Terminal User Manual Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 9.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and ISUP protocol.
  • Page 121 DS-K5671 Series Face Recognition Terminal User Manual 3. In the Online Device area, check one or more online device(s), and click Add to open the device adding window. Figure 9-3 Add Single Online Device Figure 9-4 Add Multiple Online Devices...
  • Page 122 DS-K5671 Series Face Recognition Terminal User Manual Name Enter a descriptive name for the device. IP Address Enter the device's IP address. The IP address of the device is obtained automatically in this adding mode. Port You can customize the port number. The port number of the device is obtained automatically in this adding mode.
  • Page 123 DS-K5671 Series Face Recognition Terminal User Manual Add Multiple Detected Online Devices For detected online devices sharing the same user name and password, you can add them to the client in a batch. Before You Start Make sure the to-be-added devices are online.
  • Page 124 DS-K5671 Series Face Recognition Terminal User Manual 9. Click Add to add the devices. Add Device by IP Address or Domain Name If you know the IP address or domain name of the device to add, you can add devices to the client by specifying the IP address (or domain name), user name, password, etc.
  • Page 125 DS-K5671 Series Face Recognition Terminal User Manual Note This function should be supported by the device. ● If you have enabled Certificate Verification, you should click Open Certificate Directory to ● open the default folder, and copy the certificate file exported from the device to this default directory to strengthen the security.
  • Page 126 DS-K5671 Series Face Recognition Terminal User Manual Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 127 DS-K5671 Series Face Recognition Terminal User Manual Device Account Enter the account name registered on ISUP protocol. ISUP Key For ISUP 5.0 devices, enter the ISUP key if you have set it when configuring network center parameter for the device.

  • Page 128: Reset Device Password

    DS-K5671 Series Face Recognition Terminal User Manual Adding Mode Enter 0 or 1 or 2. Address Edit the address of the device. Port Enter the device port number. The default port number is 8000. User Name Enter the device user name. By default, the user name is admin.

  • Page 129: Group Management

    DS-K5671 Series Face Recognition Terminal User Manual Note For the following operations for resetting the password, contact our technical support. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 130: Import Resources To Group

    DS-K5671 Series Face Recognition Terminal User Manual 9.3.2 Import Resources to Group You can import the device resources (such as alarm inputs/outputs, access points, etc.) to the added group in a batch. Before You Start Add a group for managing devices. Refer to Add Group .

  • Page 131: Person Management

    DS-K5671 Series Face Recognition Terminal User Manual Steps 1. Enter the Device Management module. 2. Click Device Management → Group to enter the group management page. All the added groups are displayed on the left. 3. Click a group to show the resources added to this group.

  • Page 132: Configure Basic Information

    DS-K5671 Series Face Recognition Terminal User Manual 9.4.2 Configure Basic Information You can add person to the client one by one and configure the person's basic information such as name, gender, email, phone number, etc. Steps 1. Enter Person module.

  • Page 133: Issue A Card By Local Mode

    DS-K5671 Series Face Recognition Terminal User Manual - Click Add and New to add the person and continue to add other persons. 9.4.3 Issue a Card by Local Mode If a card enrollment station is available, you can issue a card by local mode. To read the card number, you should connect the card enrollment station to the PC running the client by USB interface or COM, and place the card on the card enrollment station.
  • Page 134 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-6 Issue a Card by Local Mode 6. Set other related parameters. Card Enrollment Station Select the model of the connected card enrollment station. Note Currently, the supported card enrollment station models include DS-K1F100-D8, DS-K1F100- M, DS-K1F100-D8E, and DS-K1F180-D8E.

  • Page 135: Upload A Face Photo From Local Pc

    DS-K5671 Series Face Recognition Terminal User Manual Enable or disable the buzzing when the card number is read successfully. Card No. Type Select the type of the card number according to actual needs. M1 Card Encryption This field is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180- D8E.

  • Page 136: Take A Photo Via Client

    DS-K5671 Series Face Recognition Terminal User Manual 9.4.5 Take a Photo via Client When adding a person, you can take a photo of the her/him via the client and set this photo as the person's profile. Before You Start Make sure PC running the client has a camera or you have connected other USB camera to the PC.

  • Page 137: Collect Face Via Access Control Device

    DS-K5671 Series Face Recognition Terminal User Manual Figure 9-7 Take a Photo via Client 7. Confirm to add the person. - Click Add to add the person and close the Add Person window. - Click Add and New to add the person and continue to add other persons.

  • Page 138: Configure Access Control Information

    DS-K5671 Series Face Recognition Terminal User Manual Note If you select the enrollment station, you should click Login to set related parameters of the device including IP address, port No., user name, and password. Also, you can check Face Anti- Spoofing and select the liveness level as Low, Medium, or High.
  • Page 139 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-8 Configure Access Control Information 4. Set a unique PIN code for the person which can be used for access authentication. - Manually enter a PIN code containing 4 to 8 digits.

  • Page 140: Customize Person Information

    DS-K5671 Series Face Recognition Terminal User Manual Note The valid times for visit is between 1 and 100. You can also check No Limit, then there are no limited times for the visitor to access doors/floors. Device Operator For person with device operator role, he/she is authorized to operate on the access control devices.

  • Page 141: Configure Resident Information

    DS-K5671 Series Face Recognition Terminal User Manual 9.4.9 Configure Resident Information If the person is resident, for video intercom purpose, you need to set the room number for her/him and bind an indoor station. After bound, you can call this person by calling the indoor station and perform video intercom with her/him.

  • Page 142: Import And Export Person Identify Information

    DS-K5671 Series Face Recognition Terminal User Manual 9.4.11 Import and Export Person Identify Information You can import the information and pictures of multiple persons to the client software in a batch. Meanwhile, you can also export the person information and pictures and save them in your PC.

  • Page 143: Export Person Information

    DS-K5671 Series Face Recognition Terminal User Manual 2. Select an added organization in the list, or click Add in the upper-left corner to add an organization and then select it. 3. Click Import to open the Import panel and check Face.

  • Page 144: Delete Registered Pictures

    DS-K5671 Series Face Recognition Terminal User Manual Note All persons' face pictures will be exported if you do not select any organization. 3. Click Export to open the Export panel and check Face as the content to export. 4. Click Export to start exporting.

  • Page 145: Move Persons To Another Organization

    DS-K5671 Series Face Recognition Terminal User Manual Note If you select the enrollment station, you should click Login, and set IP address, port No., user name and password of the device. 5. Click Import to start importing the person information to the client.

  • Page 146: Report Card Loss

    DS-K5671 Series Face Recognition Terminal User Manual - Place the card on the card enrollment station. - Swipe the card on the card reader. - Manually enter the card number and press the Enter key. The person(s) in the list will be issued with card(s).

  • Page 147: Configure Schedule And Template

    DS-K5671 Series Face Recognition Terminal User Manual Note Currently, the supported card enrollment station models include DS-K1F100-D8, DS-K1F100-M, DS-K1F100-D8E, and DS-K1F180-D8E. Card Type This field is only available when the model is DS-K1F100-D8E or DS-K1F180-D8E. Select the card type as EM card or IC card according to the actual card type.

  • Page 148: Add Template

    DS-K5671 Series Face Recognition Terminal User Manual Steps Note You can add up to 64 holidays in the software system. 1. Click Access Control → Schedule → Holiday to enter the Holiday page. 2. Click Add on the left panel.
  • Page 149 DS-K5671 Series Face Recognition Terminal User Manual 1. Click Access Control → Schedule → Template to enter the Template page. Note There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be edited or deleted. All-Day Authorized The access authorization is valid in each day of the week and it has no holiday.

  • Page 150: Set Access Group To Assign Access Authorization To Persons

    DS-K5671 Series Face Recognition Terminal User Manual 9.6 Set Access Group to Assign Access Authorization to Persons After adding the person and configuring the person's credentials, you can create the access groups to define which person(s) can get access to which door(s) and then apply the access group to the access control device to take effect.
  • Page 151 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-9 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 152: Configure Advanced Functions

    DS-K5671 Series Face Recognition Terminal User Manual Note If you change the persons' access information or other related information, you will view the promptAccess Group to Be Applied on the right corner of the client. You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later.
  • Page 153 DS-K5671 Series Face Recognition Terminal User Manual Configure Parameters for Access Control Device After adding the access control device, you can configure its parameters, including overlaying user information on picture, uploading pictures after capturing, saving captured pictures, etc. Steps 1. Click Access Control → Advanced Function → Device Parameter .
  • Page 154 DS-K5671 Series Face Recognition Terminal User Manual If enable the function, the device can recognize the EM card. You can present EM card on the device. Note If the peripheral card reader supports presenting EM card, the function is also supported to enable/disable the EM card function.
  • Page 155 DS-K5671 Series Face Recognition Terminal User Manual The alarm can be triggered if the door has not been closed in a configured time period. If it is set as 0, no alarm will be triggered. Click Advanced to configure more parameters.
  • Page 156 DS-K5671 Series Face Recognition Terminal User Manual Minimum Card Swiping Interval If the interval between card swiping of the same card is less than the set value, the card swiping is invalid. You can set it as 0 to 255.

  • Page 157: Configure Remaining Open/Closed

    DS-K5671 Series Face Recognition Terminal User Manual You can select indoor or others application modes according to actual environment. Lock Authentication Failed Face After enabling the Live Face Detection function, the system will lock the user's face for 5 minutes if the live face detection is failed for more than the configured attempts. The same user cannot authenticate via the fake face within 5 minutes.
  • Page 158 DS-K5671 Series Face Recognition Terminal User Manual Steps 1. Click Access Control → Advanced Function → Remain Open/Closed to enter the Remain Open/ Closed page. 2. Select the door that need to be configured on the left panel. 3. To set the door status during the work day, click the Week Schedule and perform the following operations.

  • Page 159: Configure Multi-Factor Authentication

    DS-K5671 Series Face Recognition Terminal User Manual 6) Optional: Select the time duration(s) that need to be deleted, and then click in the Operation column to delete the selected time duration(s). 7) Optional: Click in the Operation column to clear all the time duration(s) in the time bar.
  • Page 160 DS-K5671 Series Face Recognition Terminal User Manual Note For setting the template, refer to Configure Schedule and Template . 3) Select the authentication type as Local Authentication, Local Authentication and Remotely Open Door, or Local Authentication and Super Password from the drop-down list.

  • Page 161: Configure Card Reader Authentication Mode And Schedule

    DS-K5671 Series Face Recognition Terminal User Manual Note For each access control point (door), up to four authentication groups can be added. ● For the authentication group of which authentication type is Local Authentication, up to 8 ● person/card groups can be added to the authentication group.
  • Page 162 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-13 Select Card Reader Authentication Mode Note PIN refers to the PIN code set to open the door. Refer to Configure Access Control Information . 2) Check the modes in the Available Mode list and they will be added to the selected modes list.

  • Page 163: Configure First Person In

    DS-K5671 Series Face Recognition Terminal User Manual Figure 9-14 Set Authentication Modes for Card Readers 6. Optional: Select a configured day and click Copy to Week to copy the same settings to the whole week. 7. Optional: Click Copy to to copy the settings to other card readers.

  • Page 164: Configure Anti-Passback

    DS-K5671 Series Face Recognition Terminal User Manual The door remains open for the configured time duration after the first person is authorized until the remain open duration ends. If you select this mode, you should set the remain open duration.

  • Page 165: Configure Device Parameters

    DS-K5671 Series Face Recognition Terminal User Manual 4. Click of the selected first card reader in the Card Reader Afterward column to open the select card reader dialog. 5. Select the afterward card readers for the first card reader. Note Up to four afterward card readers can be added as afterward card readers for one card reader.
  • Page 166 DS-K5671 Series Face Recognition Terminal User Manual The maximum transmission unit (MTU) of the network interface. 6. Click Save. Set Network Parameters After adding the access control device, you can set the device log uploading mode, and create ISUP account via wired network.
  • Page 167 DS-K5671 Series Face Recognition Terminal User Manual Note The port number of the wireless network and wired network should be consistent with the port number of ISUP. 8. Select the Protocol Type as ISUP. Note If set the ISUP version as 5.0, you should create an ISUP key for the ISUP account.
  • Page 168 DS-K5671 Series Face Recognition Terminal User Manual 5. Set the capture times once triggered which defines how many pictures will be captures for one time. 6. If the capture times is more than 1, set the interval for each capture.
  • Page 169 DS-K5671 Series Face Recognition Terminal User Manual Note These parameters displayed vary according to different device models. Algorithm Select Deep Learning as the face picture database. Save Authentication Picture If enabled, the captured face picture when authenticating will be saved on the device.
  • Page 170 DS-K5671 Series Face Recognition Terminal User Manual 3. Select an access control device in the device list and click M1 Card Encryption Verification to enter the M1 Card Encryption Verification page. 4. Set the switch to on to enable the M1 card encryption function.

  • Page 171: Configure Linkage Actions For Access Control

    DS-K5671 Series Face Recognition Terminal User Manual 2. On the navigation bar on the left, enter Advanced Function → More Parameters . 3. Select an access control device in the device list and click Wiegand to enter the Wiegand Settings page.

  • Page 172: Configure Device Actions For Access Event

    DS-K5671 Series Face Recognition Terminal User Manual 3. Select the event(s) and click Edit Priority to define the priority for the event(s), which can be used to filter events in the Event Center. 4. Set the linkage actions of the event.

  • Page 173: Configure Device Actions For Card Swiping

    DS-K5671 Series Face Recognition Terminal User Manual Capture The real-time capture will be triggered. Access Point The door status of open, close, remain open, and remain close will be triggered. Note The target door and the source door cannot be the same one.

  • Page 174: Configure Device Actions For Person Id

    DS-K5671 Series Face Recognition Terminal User Manual 9. Optional: After adding the device linkage, you can do one or more of the following: Delete Linkage Select the configured linkage settings in the device list and click Delete to Settings delete it.

  • Page 175: Door Control

    DS-K5671 Series Face Recognition Terminal User Manual Delete Linkage Select the configured linkage settings in the device list and click Delete to Settings delete it. Edit Linkage Select the configured linkage settings in the device list and you can edit its Settings event source parameters, including event source and linkage target.

  • Page 176: Check Real-Time Access Records

    DS-K5671 Series Face Recognition Terminal User Manual Unlock When the door is locked, unlock it and it will be open for once. After the open duration, the door will be closed and locked again automatically. Lock When the door is unlocked, lock it and it will be closed. The person who has the access authorization can access the door with credentials.

  • Page 177: Event Center

    DS-K5671 Series Face Recognition Terminal User Manual 2. Optional: Check the event type and event status so that these events will show in the list if the events are detected. The events of unchecked type or status will not be displayed in the list.

  • Page 178: View Real-Time Events

    DS-K5671 Series Face Recognition Terminal User Manual Figure 9-15 Arm Device After turned on, the device(s) will be armed. And notifications about the events triggered by the armed device(s) will be automatically sent to the client software in real-time. 9.10.2 View Real-Time Events The real-time event information received by the client of the connected resources are displayed.

  • Page 179: Search Historical Events

    DS-K5671 Series Face Recognition Terminal User Manual Filter by Device Type and (or) Select device type(s) and (or) priorities to filter Priority events. Filter by Keywords Enter the keywords to filter the events. 3. Optional: Right-click the table header of the event list to customize the event related items to be displayed in the event list.
  • Page 180 DS-K5671 Series Face Recognition Terminal User Manual Steps 1. Click Event Center → Event Search to enter the event search page. 2. Set the filter conditions to display the required events only. Time The time when the event starts. Search by Device Search the events by device or the device's resource channels.
  • Page 181 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-16 Search Historical Events Note If you have selected Access Control as device type in Step 2, you can view extra information such as card No., skin-surface temperature, and abnormal temperature (if device supports) in the...
  • Page 182 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-17 Search Historical Event 4. Optional: Right click the table header of the event list to customize the event related items to be displayed in the event list. 5. Select an event in the event list to view the event details.

  • Page 183: Time And Attendance

    DS-K5671 Series Face Recognition Terminal User Manual Auto-Play Video Check Auto-Play Video to automatically play video when displaying event details. Enlarge Video or Double click the video image to view video in a larger window. ● Picture Put the cursor on the picture, and click to view picture in a larger ●...
  • Page 184 DS-K5671 Series Face Recognition Terminal User Manual Steps Note The parameters configured here will be set as default for the newly added time period. It will not affect the existed one(s). 1. Enter Time & Attendance module. 2. Click Attendance Settings → General Rule .
  • Page 185 DS-K5671 Series Face Recognition Terminal User Manual By default, all card readers of the added access control devices are set as start/end-work check points. If you need to edit check point function of card reader(s), you can perform the following operations.
  • Page 186 DS-K5671 Series Face Recognition Terminal User Manual Add Regular Holiday You can configure a holiday which will take effect annually on regular days during the effective period, such as New Year's Day, Independence Day, Christmas Day, etc. Steps 1. Enter the Time & Attendance module.
  • Page 187 DS-K5671 Series Face Recognition Terminal User Manual 10. Click OK. The added holiday will display in the holiday list and calendar. If the date is selected as different holidays, it will be recorded as the first-added holiday. 11. Optional: After adding the holiday, perform one of the following operations.
  • Page 188 DS-K5671 Series Face Recognition Terminal User Manual Note If you select MySQL, you should import the configuration file (libmysql.dll) from local PC. 5. Set the other required parameters of the third-party database, including server IP address, port No., database name, user name and password.
  • Page 189 DS-K5671 Series Face Recognition Terminal User Manual Must Check The break duration will be calculated and excluded from work hours according to actual check-in and check-out time. Return from Break Early for The actual check-in and check-out time does not exceed the break time, and can be marked as normal work or work overtime.

  • Page 190: Add General Timetable

    DS-K5671 Series Face Recognition Terminal User Manual Enter the mark and select the color. The related fields of attendance status in the report will display with the mark and color. Weekend Mark Enter the mark and select the color. The weekend fields in the report will display with the mark and color.
  • Page 191 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-18 Add Timetable 3. Create a name for the timetable. Note You can click the color icon beside the name to customize the color for the valid timetable on the time bar in the Configuration Result area.
  • Page 192 DS-K5671 Series Face Recognition Terminal User Manual You need to set Valid Authentication Interval for this calculation method. For example, if the interval between card swiping of the same card is less than the set value, the card swiping is invalid.

  • Page 193: Add Shift

    DS-K5671 Series Face Recognition Terminal User Manual Delete Timetable Select a timetable from the list and click Delete to delete it. 9.11.3 Add Shift You can add shift for employees including setting shift period (day, week, month) and the effective attendance time.
  • Page 194 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-19 Add Shift Note You can select more than one timetables. The start and end work time and the valid check-in and out time in different time tables can not be overlapped.
  • Page 195 DS-K5671 Series Face Recognition Terminal User Manual Figure 9-20 Add Multiple Timetables 6. Click Save. The added shift lists on the left panel of the page. At most 64 shifts can be added. 7. Optional: Assign the shift to organization or person for a quick shift schedule.

  • Page 196: Manage Shift Schedule

    DS-K5671 Series Face Recognition Terminal User Manual On the holidays, this schedule is still effective and the persons needs to go to work according to the schedule. Effective for Overtime The persons' overtime will be recorded for this schedule. 5) Click Save to save the quick shift schedule.
  • Page 197 DS-K5671 Series Face Recognition Terminal User Manual If the multiple shift schedules contains three timetables: 00:00 to 07:00, 08:00 to 15:00 and 16:00 to 23:00. The attendance of the person adopting this multiple shift schedules will be effective in any of the three timetables. If the person checks in at 07:50, it will apply the nearest timetable 08:00 to 15:00 to the person's attendance.
  • Page 198 DS-K5671 Series Face Recognition Terminal User Manual Note This is only available for shift with only one timetable. Multiple Shift Schedules It contains more than one timetables. The person can check in/out in any of the timetables and the attendance will be effective.

  • Page 199: Manually Correct Check-In/Out Record

    DS-K5671 Series Face Recognition Terminal User Manual 4. Click one date or click and drag to select multiple dates for the temporary schedule. 5. Select Workday or Non-Workday from drop-down list. If Non-Workday is selected, you need to set the following parameters.

  • Page 200: Add Leave And Business Trip

    DS-K5671 Series Face Recognition Terminal User Manual Before You Start You should add organizations and persons in Person module. For details, refer to Person ● Management . The person's attendance status is incorrect. ● Steps 1. Click Time & Attendance → Attendance Handling to enter attendance handling page.

  • Page 201: Calculate Attendance Data

    DS-K5671 Series Face Recognition Terminal User Manual Before You Start You should add organizations and persons in the Person module. For details, refer to Person Management . Steps 1. Click Time & Attendance → Attendance Handling to enter attendance handling page.
  • Page 202 DS-K5671 Series Face Recognition Terminal User Manual Automatically Calculate Attendance Data You can set a schedule so that the client can automatically calculate attendance data of the previous day at the time you configured every day. Steps Note 1. Enter the Time & Attendance module.

  • Page 203: Attendance Statistics

    DS-K5671 Series Face Recognition Terminal User Manual Note The report items will be displayed in the sequence you have set. Export Report Click Export to export attendance data (CSV file) to local PC. Note The report items will be displayed in the sequence you have set.
  • Page 204 DS-K5671 Series Face Recognition Terminal User Manual Note There are two methods for getting attendance events from the device, including Online and Import File. For more details about operations, refer to Get Events from Device in the user manual of the client software.
  • Page 205 DS-K5671 Series Face Recognition Terminal User Manual Send Report Regularly The client supports multiple report types and you can pre-define the report content and it can send the report automatically to the email address you configured. Steps 1. Enter the Time & Attendance module.

  • Page 206: System Configuration

    DS-K5671 Series Face Recognition Terminal User Manual Note Up to 5 email addresses can be added. You can click + to add a new email address. 5) Optional: Click Preview to view the email details. 6. Click OK. 7. Optional: After adding the custom report, you can do one or more of the followings: Edit Report Select one added report and click Edit to edit its settings.

  • Page 207: Set Picture Storage

    DS-K5671 Series Face Recognition Terminal User Manual Save Event for Set the event deleting cycle to delete the old event. Detect New Software Version After enabled, the client can automatically detect the new software version and remind the user to upgrade the software.

  • Page 208: Set Alarm Sound

    DS-K5671 Series Face Recognition Terminal User Manual Note The default saving path is: Disk/iVMS-4200alarmPicture 5. Click Save. 9.12.3 Set Alarm Sound When the event is triggered, the client can give an audible warning to notify the security personnel. You can set the sound of the audible warning in this section.

  • Page 209: Set File Saving Path

    DS-K5671 Series Face Recognition Terminal User Manual Specify the seconds that the call with indoor station will last for at most. The maximum speaking duration between indoor station and the client can be set from 120s to 600s. Max. Speaking Duration with Door Station Specify the seconds that the call with door station will last for at most.

  • Page 210: Operation And Maintenance

    DS-K5671 Series Face Recognition Terminal User Manual Security Certificate (Optional) If your email server requires authentication, check this checkbox to use authentication to log into the server and enter the login user name and password of your email account. User Name Enter the user name of the sender email address if Server Authentication is checked.

  • Page 211: Appendix A. Tips When Collecting/Comparing Face Picture

    DS-K5671 Series Face Recognition Terminal User Manual Appendix A. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 212 DS-K5671 Series Face Recognition Terminal User Manual Size Make sure your face is in the middle of the collecting window.

  • Page 213: Appendix B. Tips For Installation Environment

    DS-K5671 Series Face Recognition Terminal User Manual Appendix B. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Install the device at least 2 meters away from the light, and at least 3 meters away from the window or door.

  • Page 214: Appendix C. Dimension

    DS-K5671 Series Face Recognition Terminal User Manual Appendix C. Dimension...

  • Page 215: Appendix D. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure D-2 Device Command...
  • Page 216 UD15666B-E...

This manual is also suitable for:

Ds-k5671-zvDs-k5671-zhDs-k5671-zu

Table of Contents
