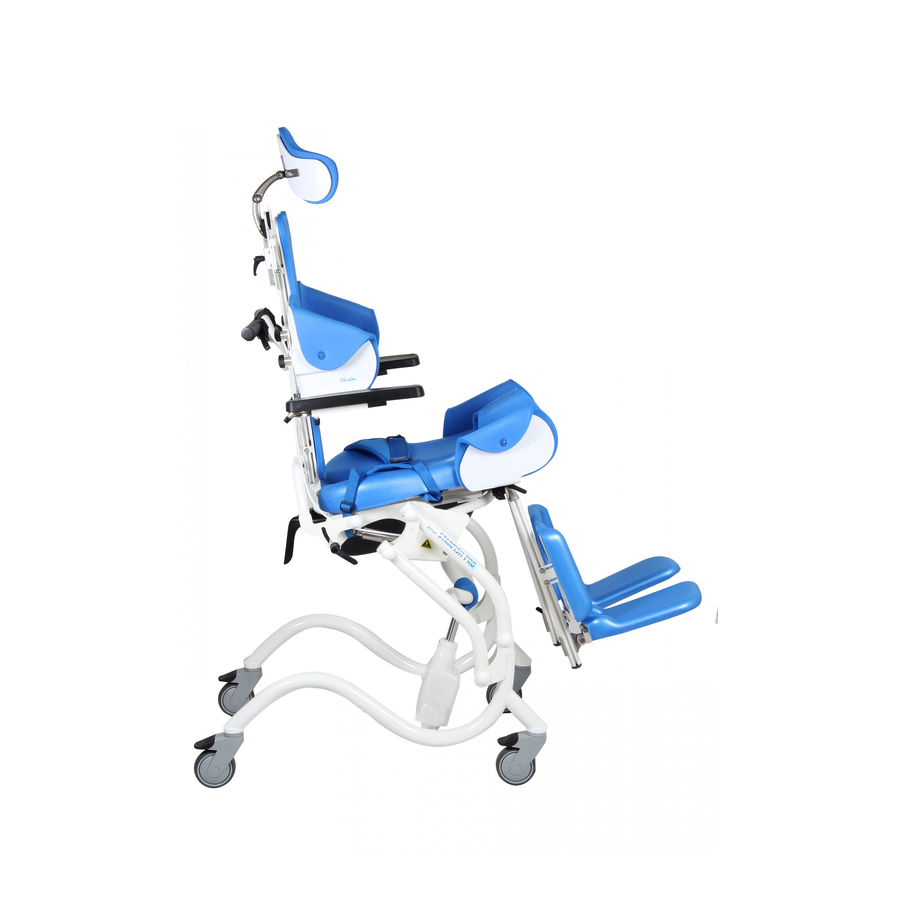

This user manual refers to hygiene chair Zitzi Starfish Pro with accessories. For a complete overview of the intended accessories, see the product’s orderform. Table of contents Manufacturer ..........4 Back ................22 Hip angle ..............23 Customization ..........4 Tilt of the seat unit ..........24 Hip support .............. -
Page 4: Manufacturer
Manufacturer This product is manufactured by Anatomic Sitt i Norrköping AB Postal address Anatomic Sitt AB, Box 6137, SE-600 06 Norrköping Street address Anatomic Sitt AB, Terminalgatan 1, SE-603 61 Norrköping Phone +46 11-161800 Email info@anatomicsitt.com Webb anatomicsitt.com Instructions movies youtube.com/anatomicsitt Follow us on facebook.com/anatomicsitt... -
Page 5: Introduction
The product label and its packaging contains the reference number (REF) and serial number (SN - for main products) or batch number (LOT - for accessories). These numbers shall be provided in correspondence with Anatomic Sitt. You find the serial number on the front of the frame. -
Page 6: Symbol List
Svarta ytterlinjen ska vara kvar. Om möjligt tvättålig 60-90°C. Antal: 250 st set Decal on the frame. Specifies controls for locking the backrest angle User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 7: Product Labeling
Product labeling Label for main product Type of product Product group Product name UDI-carrier Max loadweight incl. user Label for accessories Type of product Product group/groups Product name UDI-carrier User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 8: Safety Precautions
Adjustments may only be made in the way described in this instructions for use. After all mounting and adjustment or service work is done, check and tighten all fastening screws and nuts. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... - Page 9 Never overload the device, see section Restrictions for the current maximum load. Never leave the user unattended when using the aid. Always check after use to detect redness or pressure marks on the patient. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00...
-
Page 10: Control Before Use
Check the condition and adjustment of wires for tilt and back angle. • Check belts and harnesses for wear, function and attachment. If defects are noticed, do not use the product. Contact your distributor of the aid for action. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 11: Restrictions
6 months. Further, they should be stored so that the piston rod is placed facing downwards. Otherwise, the gas spring seal might break and the gas piston fail. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 12: Remaining Risks
Divergency/Incidents If the product is unusable product, contact your aids center or dealer/manufacturer. If a serious incident occurs, it should be reported to Anatomic Sitt AB and to the country’s competent authority. User manual Zitzi Starfish Pro... -
Page 13: Technical Data/Performance
540 x 640 x 330 x 380 mm TABLE STD. Whole footrest Divided footrest SUPPORT TABLE User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00 Anatomic SITT AB • Telefon +46 11-16 18 00 • Email info@anatomicsitt.com • Web www.anatomicsitt.com... -
Page 14: Adaptation And Customization
Marking The product should be notified that it is adapted to a specific user so that it can not be mistaken for a standard product. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 15: Mounting And Adjustment Instructions
Mounting must always be done by qualified personnel, (technicians at an aidcenter or equivalent). Instruct the user and/or other people close to the user about the product’s functions so that the aid can be used safely. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 16: Chassis
To lower the chassi place the foot underneath the pump handle and push it up. Be careful to avoid risk of pinching. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... - Page 17 Attache the charging cable (K) between the connection cable (J2) and a wall socket (220V). The first time you charge the battery do it about 24 hours. To avoid battery failure, don’t let the battery run out of power completely. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00...
- Page 18 • Storage temperature: - 10°C to + 40°C (+ 10°C to + 25°C recommended) The battery has a LED-light indication (B) LED-colour Indication Solid yellow Charging No LED light Fully charged Flashing yellow Error during charging User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00...
- Page 19 Overheating can occur through extensive use, at high temperatures or through overheating. Duty cycle guideline: approx. 5% (1 minute continuous use followed by 19 minutes not in use). User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00...
-
Page 20: Seat Part
Release the screws (A) then the seat parts can be adjusted by hand. Adjust the seat part. Lock the screws firmly when you are done with the adjustment. Be careful not to adjust the screws all the way out! User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 21: Abduction/Adduction Support
Adjust the support to desired location and then fix the screws firmly. When dismounting abduction/adduction support, replace the screws with the shorter ones included in the footrest bracket. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 22: Back
The trunk support can now be tweaked through releasing the lever knobs (D). Adjust the trunk supports to your desired position and then fix the lever knobs firmly (D). User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 23: Hip Angle
(A). Make sure the wires for the trigger to the gas piston always moves freely after adjustment! Remember to tighten the safety lever! User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 24: Tilt Of The Seat Unit
Make sure the wires for the trigger to the gas piston always moves freely after adjustment! User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 25: Hip Support
Adjust the height of the hip support with the screws (G), the side with the knob (H) and the depth with the knob (I). Back profile lower attachment Back profile Back stirrup User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 26: Armrest Back
To put on the armreast, put in the armrest in the holder to desired position and tighten the lever knob (B) firmly. Arm for folding armrest The width of the armrests must not be adjusted outside the MAX markings. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 27: Armrest Chassis
The armrests are swing away. Pull the armrest to the side and up. Then twist the support away from the chassis until the support attach into the next hem. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 28: Standard Table
Put the table on the armrest plates (B) and adjust width and depth of the armrests to correct position under the table. Rotate the tables locking levers (A) into position below the armrest plate. Do not lift the front of the support table. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 29: Headrest
(C). Adjust to desired height and fix the screws firmly (A). Make sure the wires for the trigger to the gas piston always moves freely after adjustment! User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 30: Harnesses
Make sure that there is enough space by the neck. • Pressure on the strap. • Placement of the pads. • Make sure that there is enough space for the neck. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 31: Hipbelt
To lock the wheels Push down the brake handle (A) with your foot to lock the wheel (see picture). Pull up the brake handle to release the brake. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 32: Footrest
Fix the lever knob firmly To be able to adjust the angle by the foot loosen the screw (B). Adjust to desired angle and fix the screw (B) firmly. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... - Page 33 Fix the screws (B) firmly and the security screw firmly (C). To adjust the foot plate in depth loosen the screws (D) the adjust to desired position, then fix the screws firmly. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00...
-
Page 34: Calf Support
Width adjustment of calf support To adjust the width of the calf support loosen the screws (A) and then adjust to desired width. Fix the screws firmly (A). Foot plate User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 35: Antitipper
Continue to hold the antitipper in the same place and now lead screw (A) through tray (B) and the wheel, and through the antitipper and screw it into the chassis. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 36: Potty
Mount the pot by sliding it in the lines (A) under the seatpart from the rear. Slide the pot all the way in until it stops against the front pipe. Don’t tilt the chair when the pot has been used. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 37: Urine Protection
Mounted urine protection Mounted urine protection with a strap around a frame with a strap around a frame tube with divided seatparts tube with whole seatparts User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 38: Summary And Follow-Up
Check that the aid is correctly balanced to ensure that any risk of tipping is excluded. If defects are noticed, do not use the product. Contact your distributor of the aid for action. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 39: Service And Maintenance
Loosen all lining after bath /shower, to avoid moisture and water under them and wipe the entire product dry. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 40: Service And Maintenance
Check that the hand control and charger are in good condition and working. Follow-up When service is done, check that the products (main product and accessories) are mounted correctly according to the instructions for use and function as intended. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 41: Reconditioning
Use a laundry bag. See more information in the current user manual for the respective positioning aids. Zitzi Starfish Pro can advantageously be cleaned in a washing cabinet: Starfish Pro Manual: 90°C for 3 minutes. - Page 42 Make sure that the instructions for use and all original labels are included with the new prescription. Labels/stickers If you need new labels and stickers, contact Anatomic Sitt. For its placement on the aid, see www.anatomicsitt.com, where you will also find manual for use. Repair paint To prevent corrosion damage or improve scratches, white repair paint can be orde- red from Anatomic Sitt AB.
- Page 43 When reconditioning is performed, check that the products (main product and accessories) are mounted correctly according to the instructions for use and function as intended. Also check that the markings, labels and warning symbols are complete and readable. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00...
-
Page 44: Recycling
A used part or product should be dismantled and discarded. The parts should be separated by material type and taken to a recycling station. Batteries and gaspiston should be sorted as hazardous material. User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 45: Warranty And Complaint
Do not forget to write down the shipment number or similar on your documents. This is so that you can track the shipment if something should happen during transport. Please note that custom made products can’t be returned! User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... -
Page 46: Revision
Correspondence - marking Description of the product label location Hip support -Supplementary text and picture Armrests -New warning box Revision list ver. 2.0 - 2020-06-11 ver. 2.1 - 2021-05-26 User manual Zitzi Starfish Pro www.anatomicsitt.com | +46 11 16 18 00... - Page 48 Anatomic Sitt AB (manufacturer) Box 6137, SE-600 06 Norrköping, Sweden Phone +46 11 16 18 00 Fax +46 11 16 20 05 Visiting address Terminalgatan 1, SE-603 61 Norrköping, Sweden anatomicsitt.com info@anatomicsitt.com facebook.com/anatomicsitt youtube.com/anatomicsitt...
