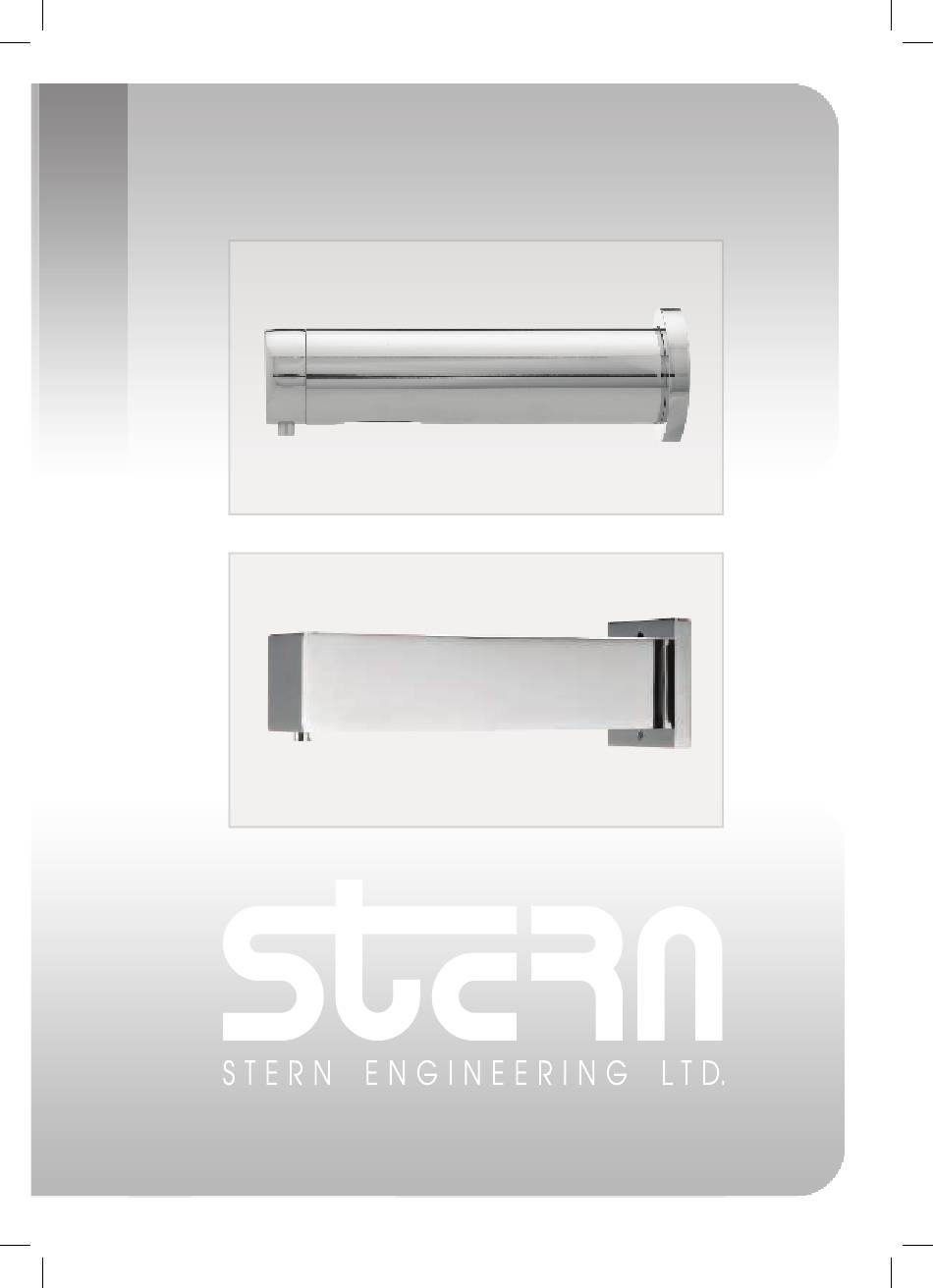

- Page 1 INSTALLATION AND MAINTENANCE GUIDE TOU C H F R E E WA L L M OU N T E D S OA P D I S P E N S E R TUBULAR QUADRAT...
- Page 2 I ND E X TECHNICAL DRAWINGS TECHNICAL DATA PRE-INSTALLATION INFORMATION PACK CONTENTS INSTALLATION 6-10 FILLING THE SOAP TANK SETTINGS ADJUSTEMENT WITH A REMOTE CONTROL BATTERIES REPLACEMENT MAINTENANCE Care and cleaning of chrome and special finishes SPARE PARTS LIST WARRANTY TROUBLE SHOOTING...
-
Page 3: Technical Drawings
TEC H NICAL D RAW I N GS Tubular Soap Dispenser B 350920 Quadrat Soap Dispenser B 351910 Tubular Soap Dispenser E 350925 Quadrat Soap Dispenser E 351900 Tubular soap dispenser 2030 B 350922 Quadrat soap dispenser 2030 B 351920... -
Page 4: Technical Data
TECHNICAL DATA 1 Liter \ 33.8 oz. Capacity: Power Supply: IP 67 Battery Box for 6xD Alkaline batteries \ Transformer Soap viscosity: 100 – 3800 cPs Standard discharge: 0.8cc, Adjustable 30-100 +/- 10mm, Adjustable with remote control Sensor Range:... -
Page 5: Pre-Installation Info
PRE-INSTALLATION INFO Check contents Separate all parts from the packaging and check each part with the “Pack contents” section. Make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install your touch free soap dispenser until you obtain the missing parts. -
Page 6: Pack Contents
Tubular Soap Dispenser B / E PACK CO NT EN TS Quadrat Soap Dispenser B / E Familiarize yourself with the part names and confirm that the parts are included. 1x Body assembly for Soap Dispenser (incl. electronic unit) 1 x M 4 x 4 Set Screw 1 x Bottle Support 2 x Screw 1 x Soap tank and pump assembly... - Page 7 Tubular Soap Dispenser 2030 B / E PACK CONTENTS Quadrat Soap Dispenser 2030 B / E 1 x Elbow and Corrugated Tube 1x Body assembly for Soap Dispenser (incl. electronic unit) 1 x Temporary Base Cover 1 x M 4 x 4 Set Screw 1 x Wall Rosette 1 x Bottle Support 2 x Screw...
-
Page 8: Installation
Tubular Soap Dispenser B / E INSTALLATION Quadrat Soap Dispenser B / E Step 1 – Preparing for installation 1. Drill a hole (23 to 24 mm) at the desired location for the soap dispenser spout installation. Drill a small hole (3.2 mm) just above the previous one for the anti-rotation pin, according to the diagram. - Page 9 Tubular Soap Dispenser B / E INSTALLATION Quadrat Soap Dispenser B / E Step 3 - Connecting the power source 1. Remove the protective sticker covering the sensor. Keep away from the sensor range and check that no objects are in front of the sensor. 2.
- Page 10 Tubular Soap Dispenser 2030 B / E INSTALLATION Quadrat Soap Dispenser 2030 B / E Step 1 – Preparing for installation 1. Disconnect the soap dispenser body with the rosette by unscrewing the set screw. SET SCREW 2. Cut an adequate opening in the wall for the dimensions of the soap dispenser base (where you want to install the spout), and the corrugated...
- Page 11 Tubular Soap Dispenser 2030 B / E INSTALLATION Quadrat Soap Dispenser 2030 B / E 3. Assemble the corrugated tube to the soap dispenser base and make sure it will stay outside of the wall when tiling. 4. Once the works on electricity, plumbing and tiles have been finished, insert the wall rosette through the soap dispenser base.
- Page 12 Tubular Soap Dispenser 2030 B / E INSTALLATION Quadrat Soap Dispenser 2030 B / E Step 3 - Connecting the power source 1. Remove the protective sticker covering the sensor. Keep away from the sensor range and check that no objects are in front of the sensor.
-
Page 13: Filling The Soap Tank
FILLING THE SOAP TANK 1. Unscrew 2. Fill in the the soap tank liquid soap up from the pump to the top line. assembly. 4. Screw the soap tank back 3. Insert the to the pump bottle with the assembly. Make tube inside the sure the tank is bottle support. - Page 14 SETTINGS ADJUSTEMENT WITH A REMOTE CONTROL If desired, use the remote control to adjust the soap dispenser settings. Hold the remote control straight in front of the sensor in a distance of about 4-6” (10-15cm). Attention: Holding the soap dispenser remote control out of the recommended range (too close or too far)may interfere with the remote’s activation.
- Page 15 BATTERY REPLACEMET Battery models only When the battery weakens, the red indicator light will blink at a constant rate when the user’s hands are within the sensor range. The battery must be replaced within two weeks. To replace the battery in battery models: 1.
-
Page 16: Maintenance
MAINTENANCE Care and cleaning of chrome and special finishes DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives, or the like. Use of any prohibited cleaning or maintenance products or substances could damage the surface of the soap dispenser. For surface cleaning use ONLY soap and water, then wipe dry with a clean cloth or towel. -
Page 17: Spare Parts List
SPARE PARTS LIST Seals and screws kit Tubular SD 07210098 Seals and screws kit Quadrat SD 07210128 Sensor 08002195 Soap Tank 1L 07100020 Transformer 06522042 Soap Dispenser Pump assembly 07222001 Remote control 07100008 IP67 transformer box 06530021 IP 67 Battery Box for 6xD Alkaline batteries 06530041 Bottle support 07120175... -
Page 18: Limited Warranty
If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments. -
Page 19: Troubleshooting
TROUBLE SHOOTING P R O B L E M I N D I C AT O R C A U S E S O L U T I O N Red light in the sensor flashes continuously when Low battery. Replace battery. - Page 20 15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel Tel: 972-8-9326000, Fax: 972-8-9326025, export@sternfaucets.com www.sternfaucets.com...
