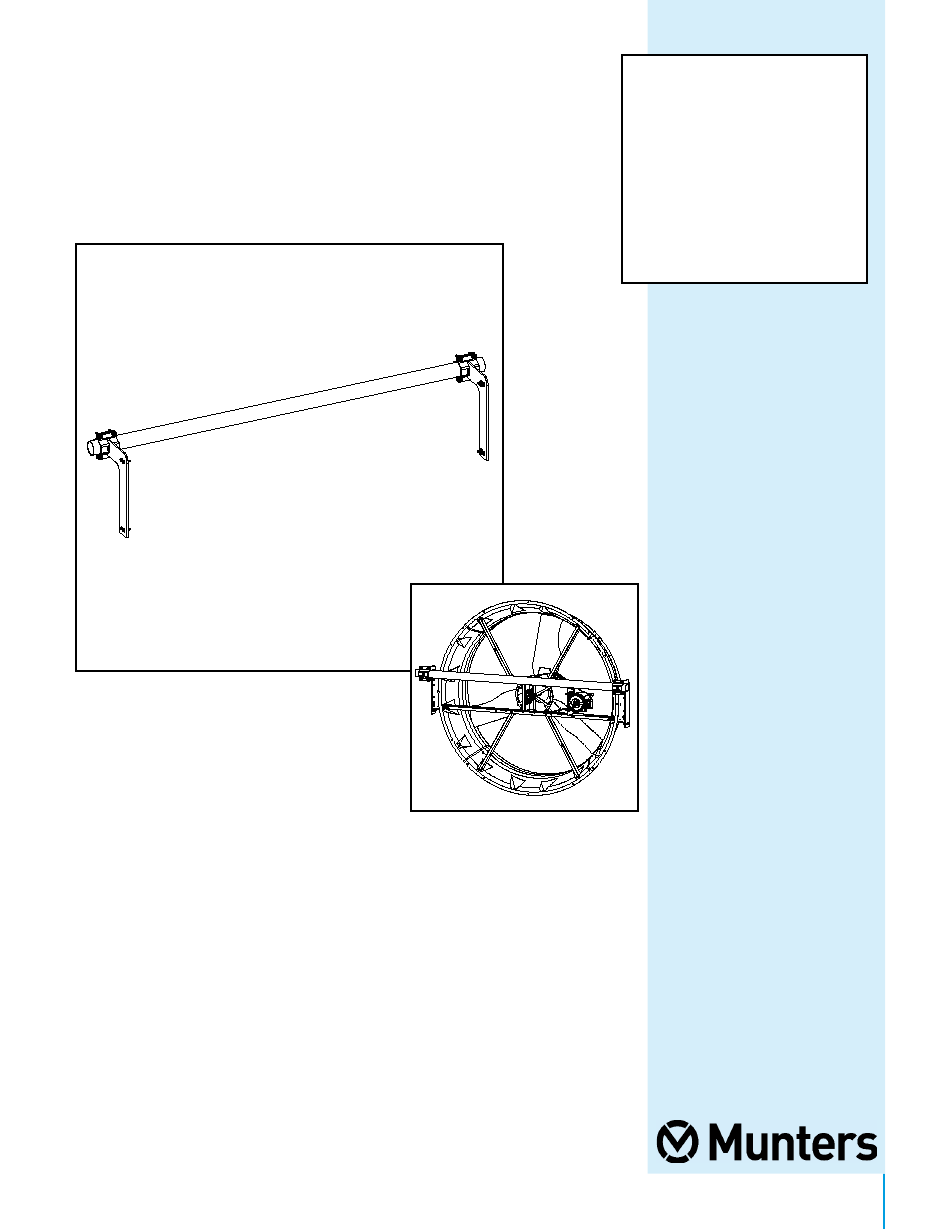

- Page 1 Aerotech Pipe Hanging Kit for CX Series Instruction Manual Circulation Fan 74” Fan Pipe Hanging Kit CX74 Fan with Pipe Hanging Kit Pipe Hanging Kit for CX74 Models: FH1709 © Munters Corporation, December 2022 QM1249r0...
- Page 2 With the proper installation and maintenance it will provide many years of service. Please Note: To achieve maximum performance and ensure long life from your Munters product it is essential that it be installed and maintained properly. Please read all instructions carefully before beginning installation. Warranty: For Warranty claims information see the “Warranty Claims and Return Policy”...
-
Page 3: Table Of Contents
Index Chapters Page Unpacking the Equipment Parts List Fan Dimensions 2. Installation Instructions Assembly © Munters Corporation, December 2022 QM1249r0... -
Page 4: Unpacking The Equipment
1.1 Parts List Each FH1707 includes: 2 – Pipe Hanger Bracket, CX74, CTD-STL, BLK 2 – Pipe Clamp Bracket, CX74, CTD-STL, BLK 1 – Hardware Package as follows: HP1199 – FH1709 Pipe Hanging Kit Qty. Cat. No. Description KS1180 ⅜ ”-16 x 1.5” Flange Hex Bolt, ZP KW3036 ⅜... -
Page 5: Fan Dimensions
Chapter 1 Unpacking the Equipment 1.2 Dimensions 27” 101⅜ ” 17½ ” SIDE VIEW FRONT VIEW © Munters Corporation, December 2022 QM1249r0... -
Page 6: Installation Instructions
With the CX74 fan turned sideways, so the main struts are horizontal, attach a Pipe Hanger Bracket to the brackets on each end of the fan using (4) Bolts [A], Washers [B] and Nylock Nuts [C] for each Bracket. See Figure 1. Nut [C] Washer [B] Bolt [A] Figure 1 © Munters Corporation, December 2022 QM1249r0... - Page 7 Secure fan with Pipe Hanger Brackets to pipe using (2) Pipe Clamps and (8) Bolts [D], (16) Washers [B] and (8) Nylock Nuts [C]. See Figure 2. Nut [C] Washer [B] Pipe Clamp Bolt [D] Figure 2 © Munters Corporation, December 2022 QM1249r0...
- Page 8 If it is desired to angle the fan down, loosen the Pipe Clamp bolts and rotate the fan to the desired angle and then retighten the Pipe Clamp bolts. See Figure 3. 10 - 15° Figure 3 © Munters Corporation, December 2022 QM1249r0...
- Page 9 This page left blank intentionally © Munters Corporation, December 2022 QM1249r0...
- Page 10 Pipe Hanging Kit for CX74 Fan is developed and produced by Munters Corporation, Lansing, Michigan U.S.A. 1-800-227-2376 Munters Europe AB, Isafjordsgatan 1, P.O. Box 1150, SE-164 26 Kista, Sweden. Phone +46 08 626 63 00, Fax +46 8 754 56 66.
