XX126

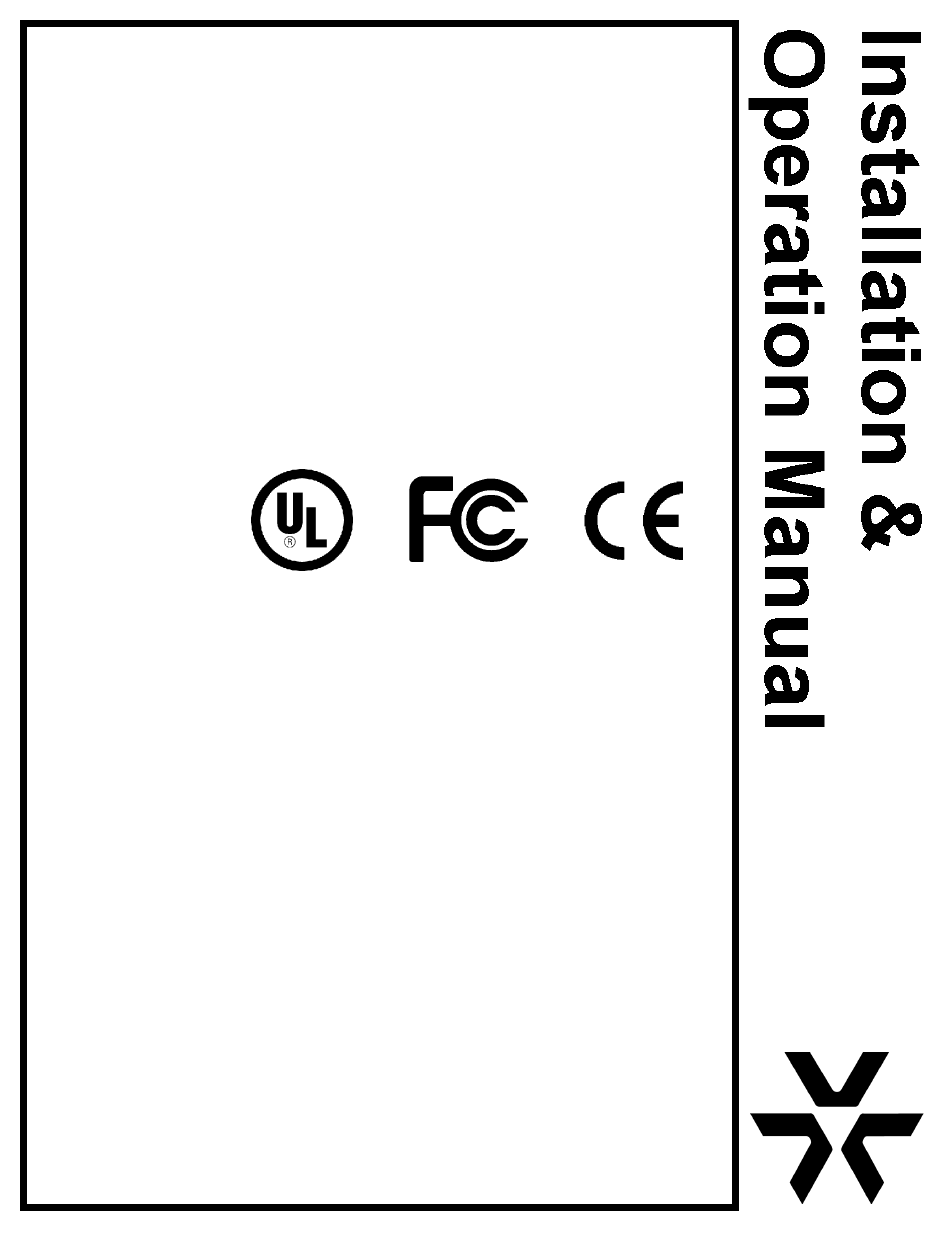

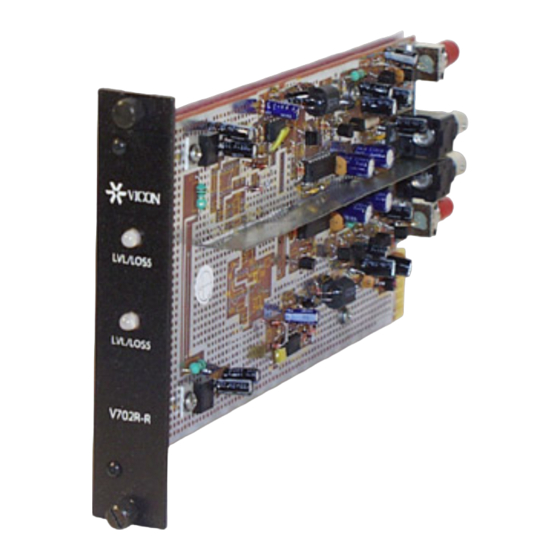

MODEL V702R-R
TWO CHANNEL VIDEO RECEIVER
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
UK: +44 (0) 1489 566300 WEB www.vicon-cctv.com
24-Hour Technical Support: 800-34-VICON (800-348-4266)
Section 10 Rev 0103
Vicon part number 8009-8126-00-00
