Summary of Contents for Mocom Tethys D60

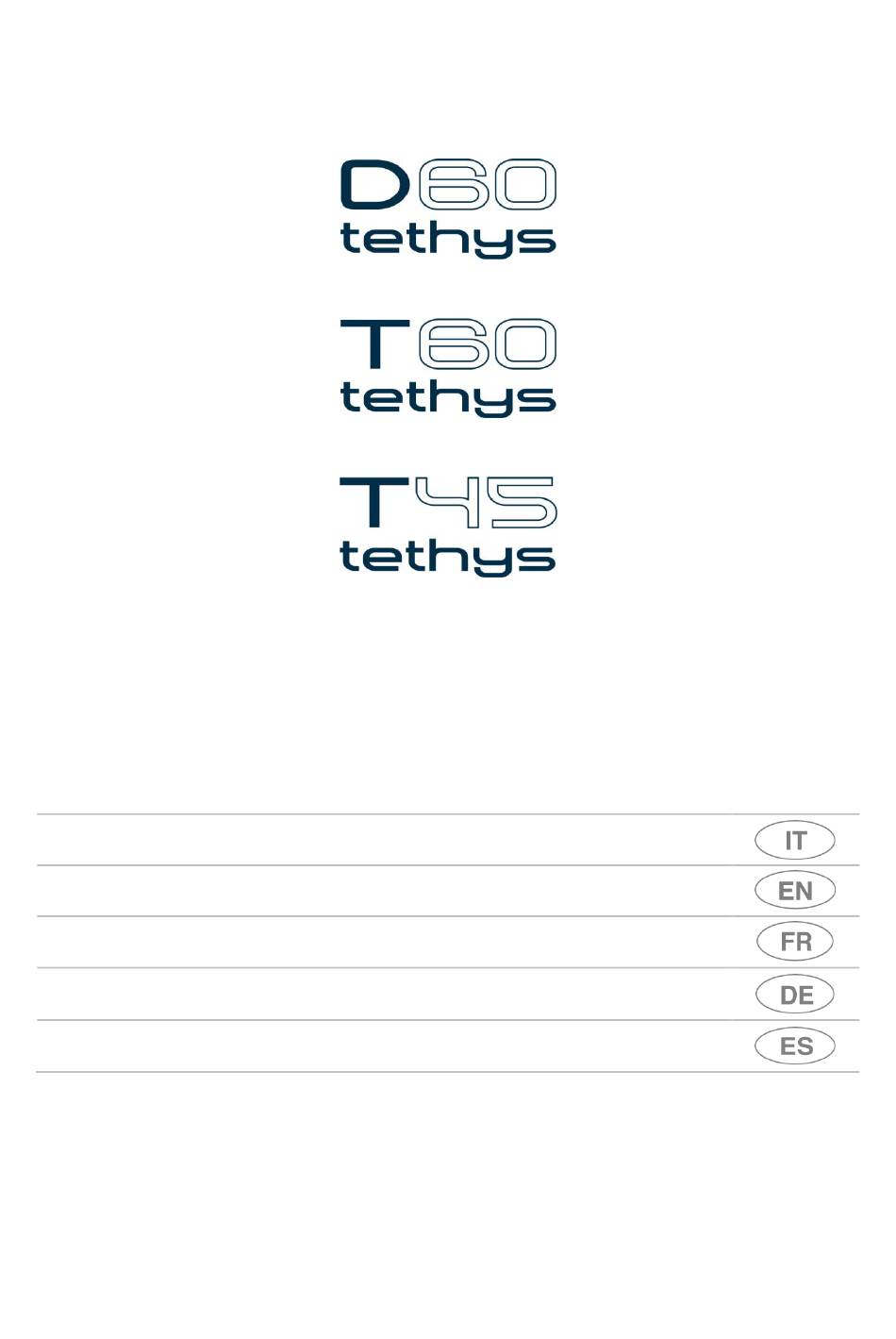

- Page 1 MANUALE IN BREVE SHORT-FORM MANUAL MANUEL SIMPLIFIÉ KURZANLEITUNG MANUAL BREVE...
- Page 2 Tethys T60: instrument washers, 60cm, without drying system. Tethys T45: instrument washers, 45cm, without drying system. The diagrams and illustrations show the graphics on the more complete Tethys D60 series. For the Tethys T60 Tethys T45, the same procedures and instructions apply unless otherwise specified.
-
Page 3: Safety Warnings
(e.g. using the protective equipment specified when handling the infected load, e.g. gloves, lab coat). Tethys D60 - Tethys T60 - Tethys T45... -
Page 4: Using The Appliance
The LED illuminates to indicate that the appliance requires routine servicing. These are inspection and maintenance operations which must be performed by authorised staff to keep the appliance safe and in good working order. Tethys D60 - Tethys T60 - Tethys T45... - Page 5 “ End” does not appear if the program has been interrupted or if an error which may affect the cycle’s effectiveness has occurred. fig. 2 – End of cycle, display screen. Tethys D60 - Tethys T60 - Tethys T45 SHORT-FORM MANUAL...
-
Page 6: Setup Mode
4 – RESET: during the RESET the display shows “ P- “. At the end of the RESET cycle, “ E- “ appears on the display. SEPARATE DRYING PHASE - TETHYS D60 SERIES ONLY Users can also select a SEPARATE DRYING CYCLE by pressing button 2 - Drying Decrease for 2 seconds: “PdrY” appears on the display. - Page 7 Time and date - explanation follows. Filt Drying filter counter. (Only appears on Tethys D60) Press the Start/Stop button to display the number of absolute filter hours left before the maintenance message appears. The initial default setting is 500. The value is in units. (Display only parameter, cannot be modified).
-
Page 8: Commissioning Instructions
4.2.1 LIQUID DETERGENT INTAKE SYSTEM A - Configuration with LEVEL SENSOR (standard on Tethys D60, optional on Tethys T60, Tethys T45). Suction nozzle with integral level sensor and tapered rubber support for fitting onto the can. -
Page 9: Recommended Detergents
8 – Detergent intake STANDARD Tethys D60 configuration. Fitting the detergent intake pipe to the can. Fit the rubber cap over the top of the can for a perfect, secure connection. The pipe is supplied complete with intake filter. -
Page 10: Alarms And Warning Messages
If contaminated materials are processed: run a program with a thermal disinfection Td phase with no load in the appliance. Disconnect the electricity supply. Leave the door slightly open to prevent unpleasant odours from forming inside the washing chamber. Turn off the water intake taps. Tethys D60 - Tethys T60 - Tethys T45 SHORT-FORM MANUAL... -
Page 11: Troubleshooting
DIRECTLY CONTACT THE TECHNICAL SUPPORT DEPARTMENT OF THE DEALER OR RESELLER THAT SUPPLIED THE PRODUCT. For more information: MOCOM S.r.l. Via Saliceto, 22 - 40013 Castel Maggiore (BO) Italy Tel. (+39) 051.703168 • Fax (+39) 051.700949 - e-mail: infomocom@mocom.it • www.mocom.it 19 395 0016 / 2014 Doc.
