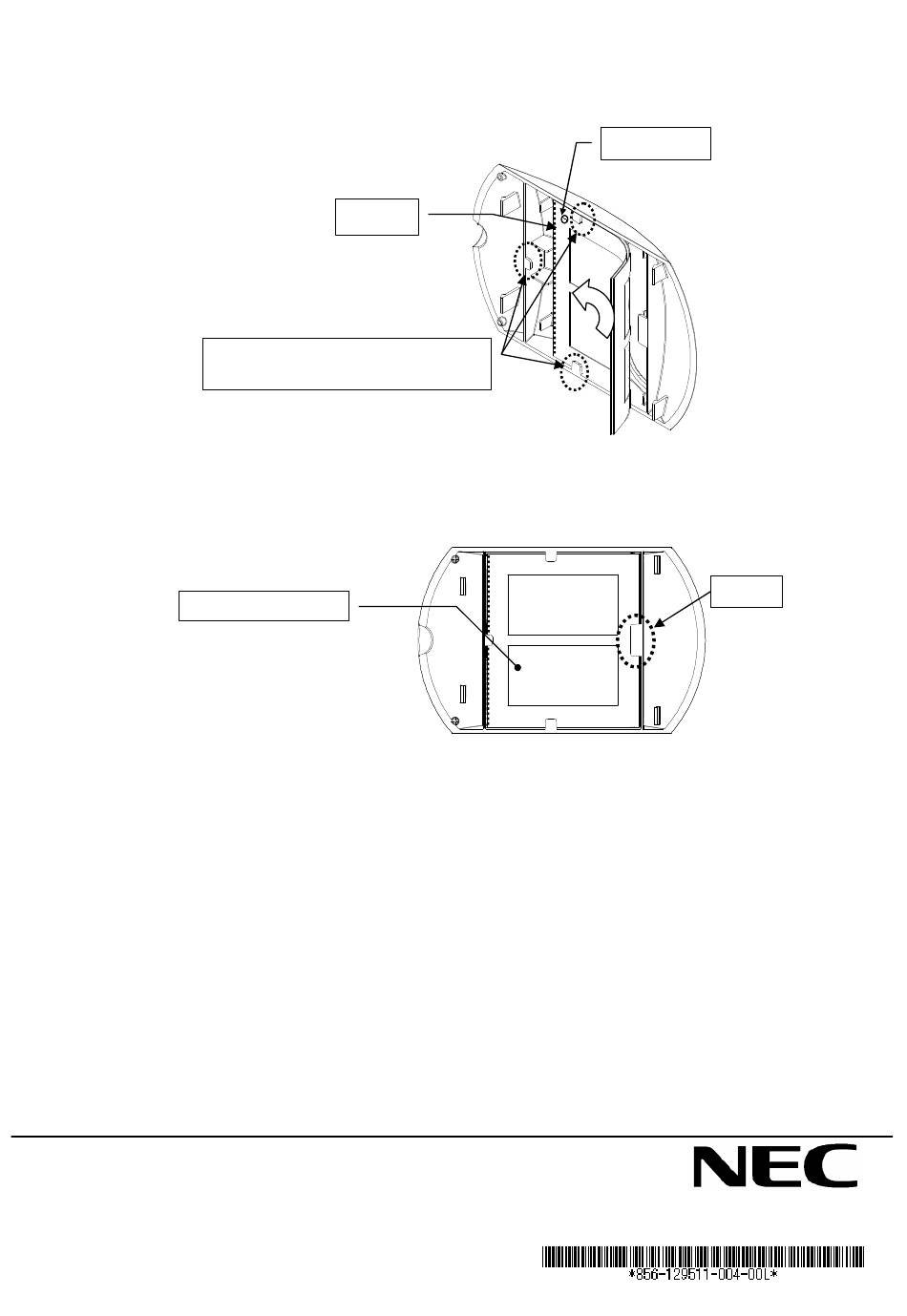

5.3 Bring the green mark on vent holes cover filter frame to the position as shown in the figure below,
5.4 Insert the vent holes cover filter frame into the remaining one claw.
Confirm that the surface of dust-proof filter without net faces toward you, as shown in the figure
below.
6．Install the dust-proof bezel and dust-proof vent holes cover to the server chassis according
Remarks
