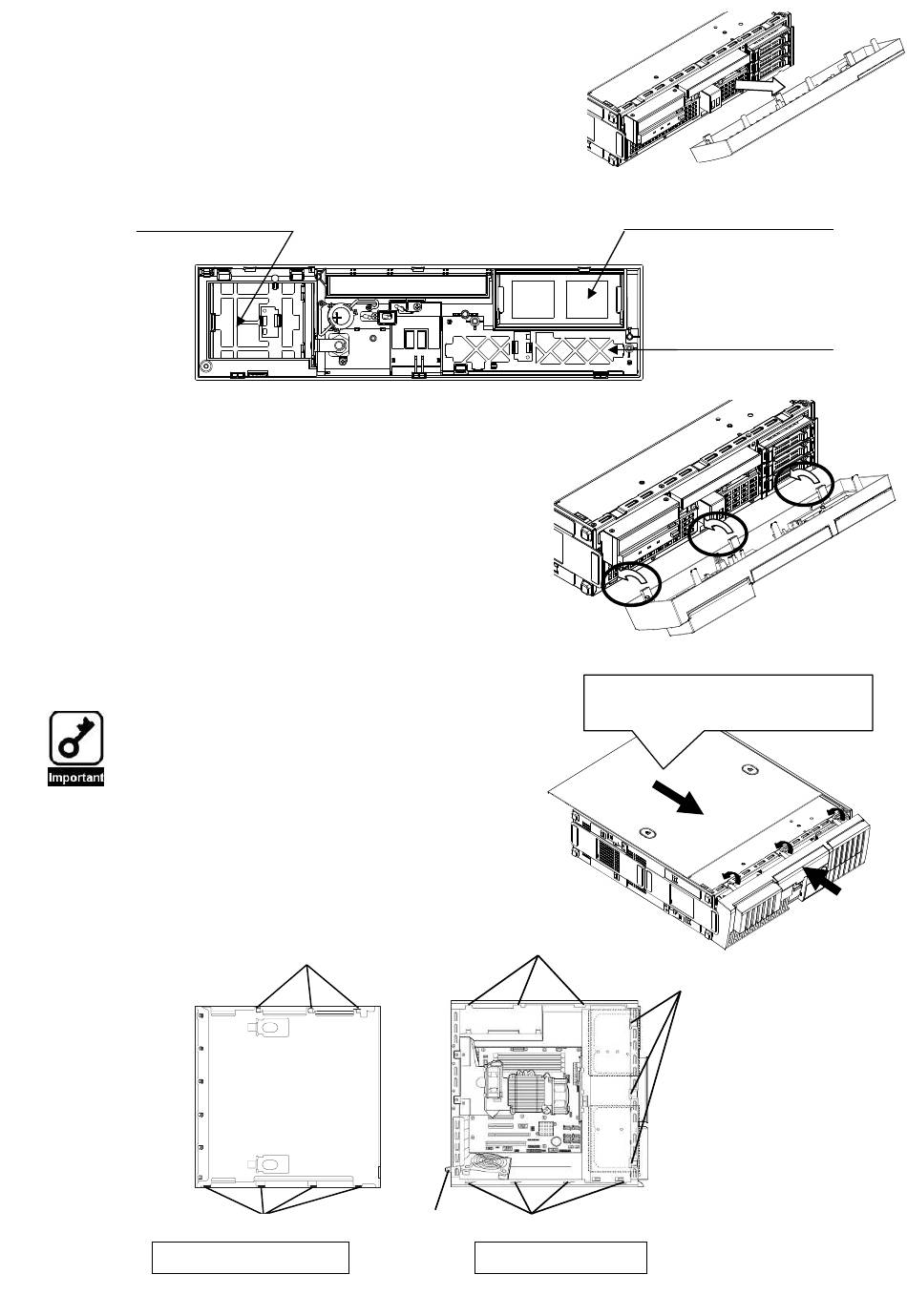

5. Move the front bezel toward upside to disengage three hooks
from the holes on bottom of the chassis, then remove the
front bezel from chassis.
6. Make sure that three kinds of filters are mounted on dust-proof bezel. See the figure below.
Door filter case
Dust-proof filter (Blue)
7. Install the dust-proof front bezel in reverse order of
removal procedure of front bezel. Insert the three tabs
at bottom of dust-proof front bezel into holes at front
of the server chassis (①in the figure), push the upper
side of front bezel toward the server chassis
(②in the figure), then lock the bezel with release tabs
(③in the figure).
8. Move the side cover toward the front of the server in the reverse order of installation procedure,
then close the side cover (④in the figure).
●Make sure that hooks at both the top and bottom of the
side cover are securely inserted in the holes on the server
frame. Also make sure that the hooks at the front of the
side cover are engaged with the server frame when sliding
the side cover forward to attach. If they are not engaged
with the frame, the side cover cannot be secured in place.
Hooks at the top of the server
Hooks at the bottom of the server
本装置底面側
のフック
Rear view of side cover
サイドカバーの裏側
本装置上面側
のフック
Plate for the chassis
lock
筐体ロック
プレート
21
①
Slide the side cover to the direction
shown by an arrow, and close it.
Insertion holes for the hooks
Insertion holes for the hooks
Frame of the server
Device filter frame
Dust-proof filter (Red)
Bezel filter case
①
①
④
③
③
The hooks at the front of the server
③
②
