3．Installing/Removing the Bezel to the Server
Take the steps below to install the bezel to the server.
●Read the sections "Safety Precautions" and "Handling precautions" in the User's Guide of the server in
which you are going to install the bezel to install or remove the bezel safely and properly.
Note: The outer dimension of NEC Express5800/GT110e-S is as follows after the bezel is installed.
93.0 mm (Width) × 411.5 mm (Depth) × 363.0 mm (Height) (With vent holes cover, stabilizers, and projection
excluded )
190.0 mm (Width) × 421.5 mm (Depth) × 386.5 mm (Height) (With vent holes cover, stabilizers, and projection
included)
1. Power off the server, and disconnect the power cord.

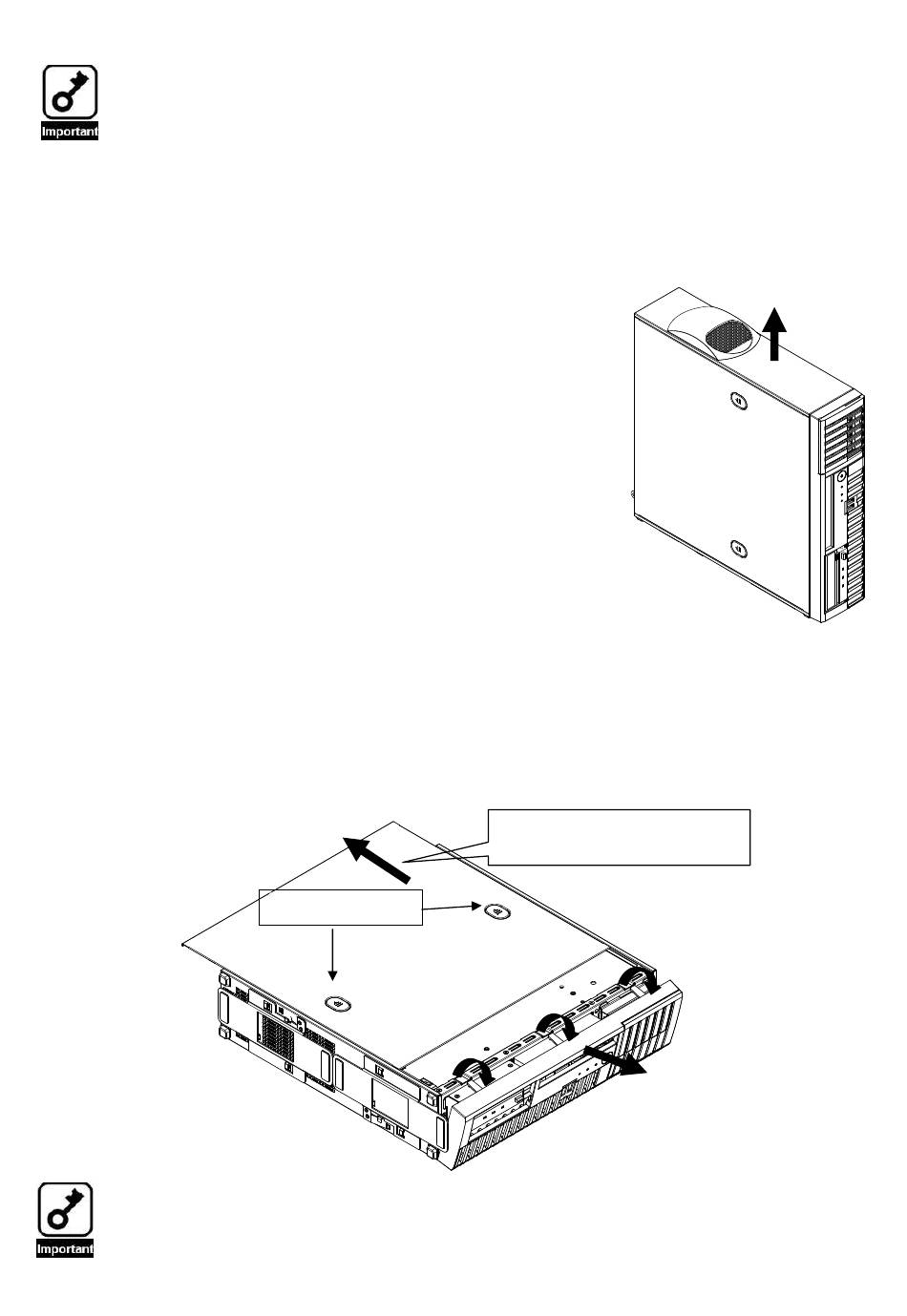

2. Pull the vent holes cover at the top of the server in the direction
shown by an arrow in the figure, and remove the vent holes cover.
3. Lay down the server. Slide the side cover toward rear of the server (①in the figure) while pushing the
two eject buttons on the side cover, then remove the side cover.
4. Pull down the three release tabs (② in the figure) located at the upper size of front bezel, and pull the
front bezel toward front of the server until tabs are almost disengaged from the chassis frame
(③ in the figure).
●If you pull the front bezel toward front excessively, hooks that secure the bottom side of the front bezel
may be damaged. Pull the front bezel a little.
