Installation - Zanussi ZMSN5S User Manual

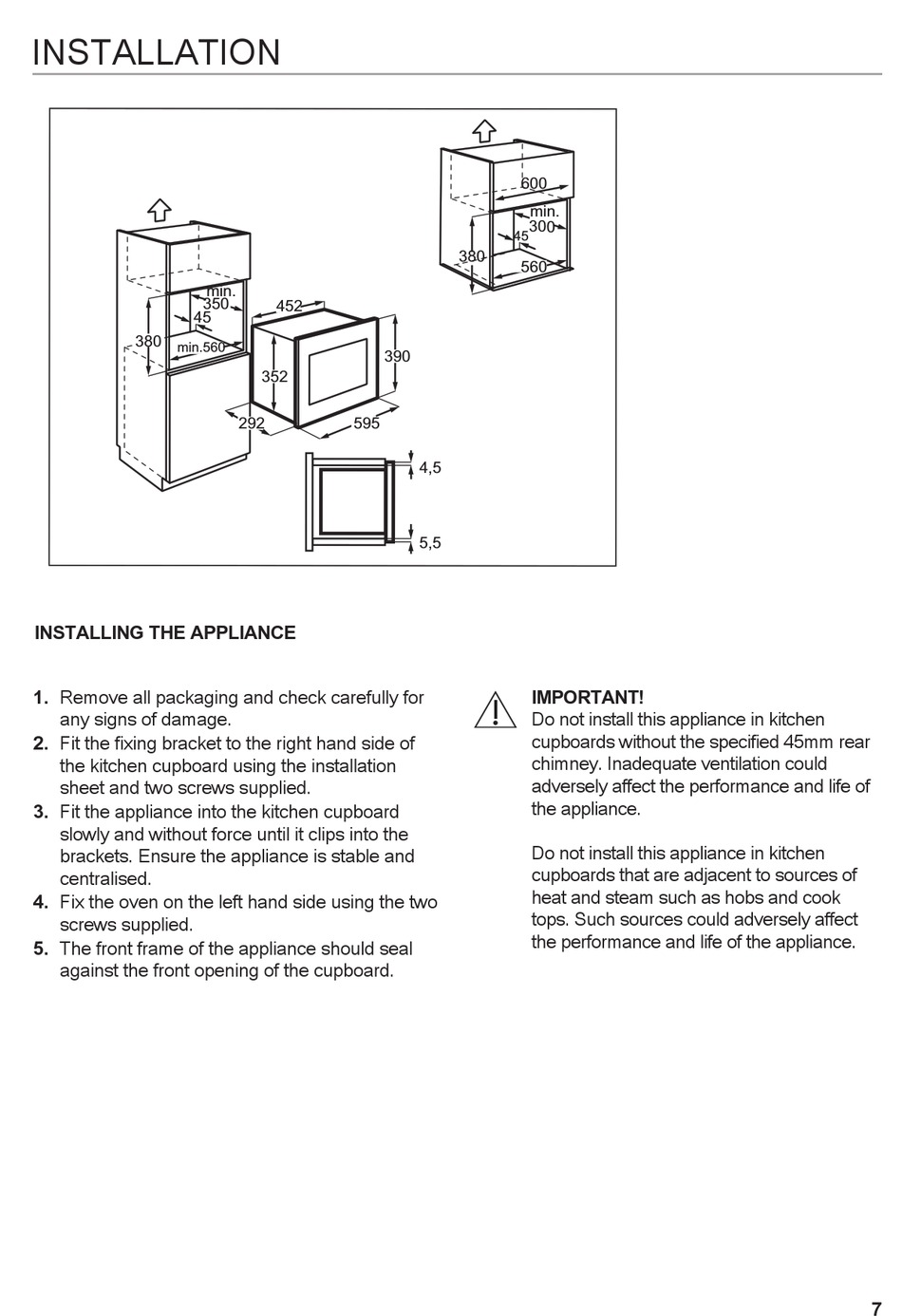

INSTALLATION

INSTALLING THE APPLIANCE
1. Remove all packaging and check carefully for
any signs of damage.
2. Fit the fixing bracket to the right hand side of
the kitchen cupboard using the installation
sheet and two screws supplied.
3. Fit the appliance into the kitchen cupboard
slowly and without force until it clips into the
brackets. Ensure the appliance is stable and
centralised.
4. Fix the oven on the left hand side using the two
screws supplied.
5. The front frame of the appliance should seal
against the front opening of the cupboard.
IMPORTANT!
Do not install this appliance in kitchen
cupboards without the specified 45mm rear
chimney. Inadequate ventilation could
adversely affect the performance and life of
the appliance.
Do not install this appliance in kitchen
cupboards that are adjacent to sources of
heat and steam such as hobs and cook
tops. Such sources could adversely affect
the performance and life of the appliance.
7
