Poooli L2 - Portable Mini Thermal Printer Quick Start Guide

Packing List

Note: The packing materials are actually based on the order.

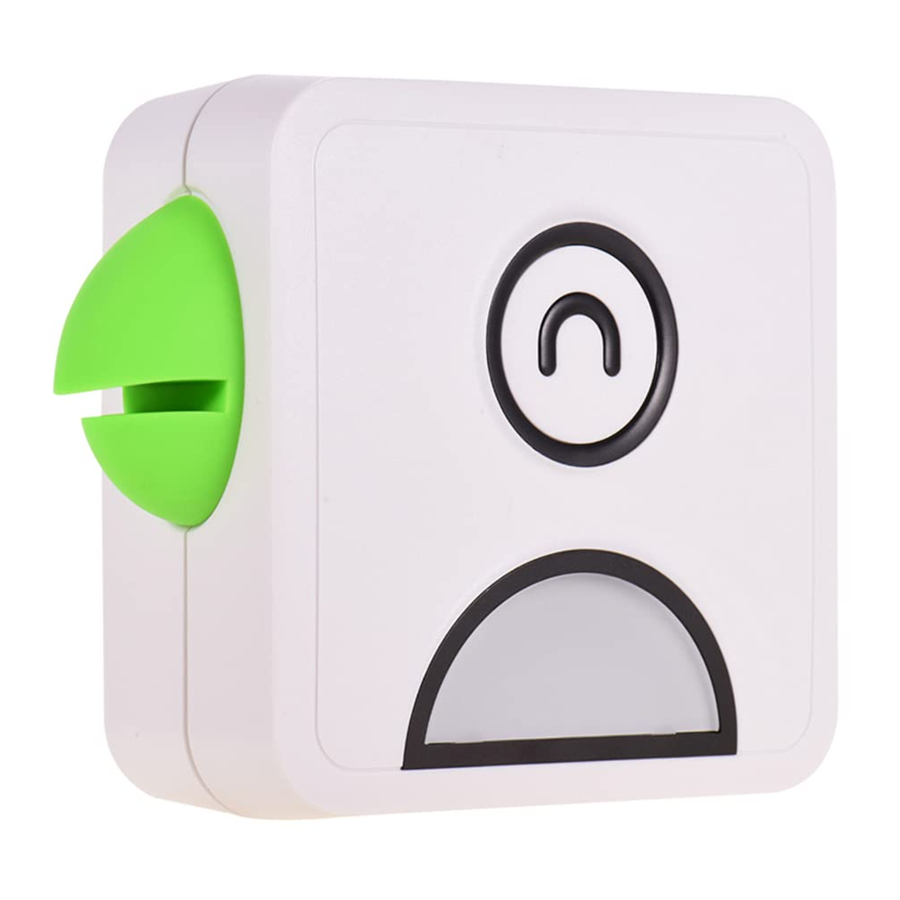

Appearance

1. Power button
2. Parrot mouth accessory
3. USB Port
4. Reset hole

Using Guide

Power button status
Long press 2 seconds to ON/OFF

• Light: Standby / charging completed
• NotifyLight slow flash: Charging / Updating
• Fast flash: Supplies near end, cover open, low battery and the print head is overheated.

Charging
Use it for the first time after purchase

• Recommended to use after full charge.
• Can be charged using a phone adapter or connected to a computer.

USB Cable
In addition to the dedicated charger, you can also use the charging cable of mobile device.

• Recommended to use a dedicated charging cable to charge.
• It takes about 90 minutes to charge with 5V/1A.

Print paper purchase
From APP, Tmall, Jingdong Mall

• Official website (www.poooli.com)

Download APP

Scan the QR code below or search for "Poooli" in the app store to download and install the app. :

Official WeChat service:

Official Weibo service:

Register and log in to the app, click Add Device. Connect to the device by searching for Bluetooth or scan code.

APP Setting

Double click the power button
Print QR code

• Double click the power button to print the QR code.
• Add the Scanning function by APP, then connect the device by scanning QR code.

Bluetooth 4.0
Bluetooth pairing

• When the first connection succeeds, the next me you start the applicaon that will connect automacally.
• In the connection state, double click the power button to disconnect the connection.

Simple operation
APP setting

• You can view informaon such as remaining power, firmware versions in device management.

Disassembly

Dismantle

If you want to remove the parrot mouth accessory, please take it down according to the figure.

Install

If you want to aach the parrot mouth accessory, use the magnet to adsorb the parrot mouth.

Replace Supplies

• Place Poooli as shown in figure 1, and look at the arrow.
• With reference to figure 2, push down the upper cover.
• When replacing supplies, place the supplies in reference to the direction shown in figure 3.
• If the supplies are properly placed, close the upper cover to the lower cover and push the upper cover back to its original shape.

When changing supplies, do not touch the print head in case of ovweheang.

Official Supplies Types

Safety

Battery overheating
Battery management and cautions

• When the charge is completed, please unplug the charging line.
• To avoid fire, do not charge at high temperatures (e.g. sweating rooms, bonfire accessories, etc.).

• There may be damage to the print head due to improper charging.
• We recommend not to use Poooli L2 in high humidity or dusty areas.

Combuson hazard
Print head overheating

• After prinng, do not touch the print head directly to prevent burn.

Charging port damage phenomenon
Charging cautions

• Please gently insert or unplug the charging line to prevent excessive damage to the charging port.
