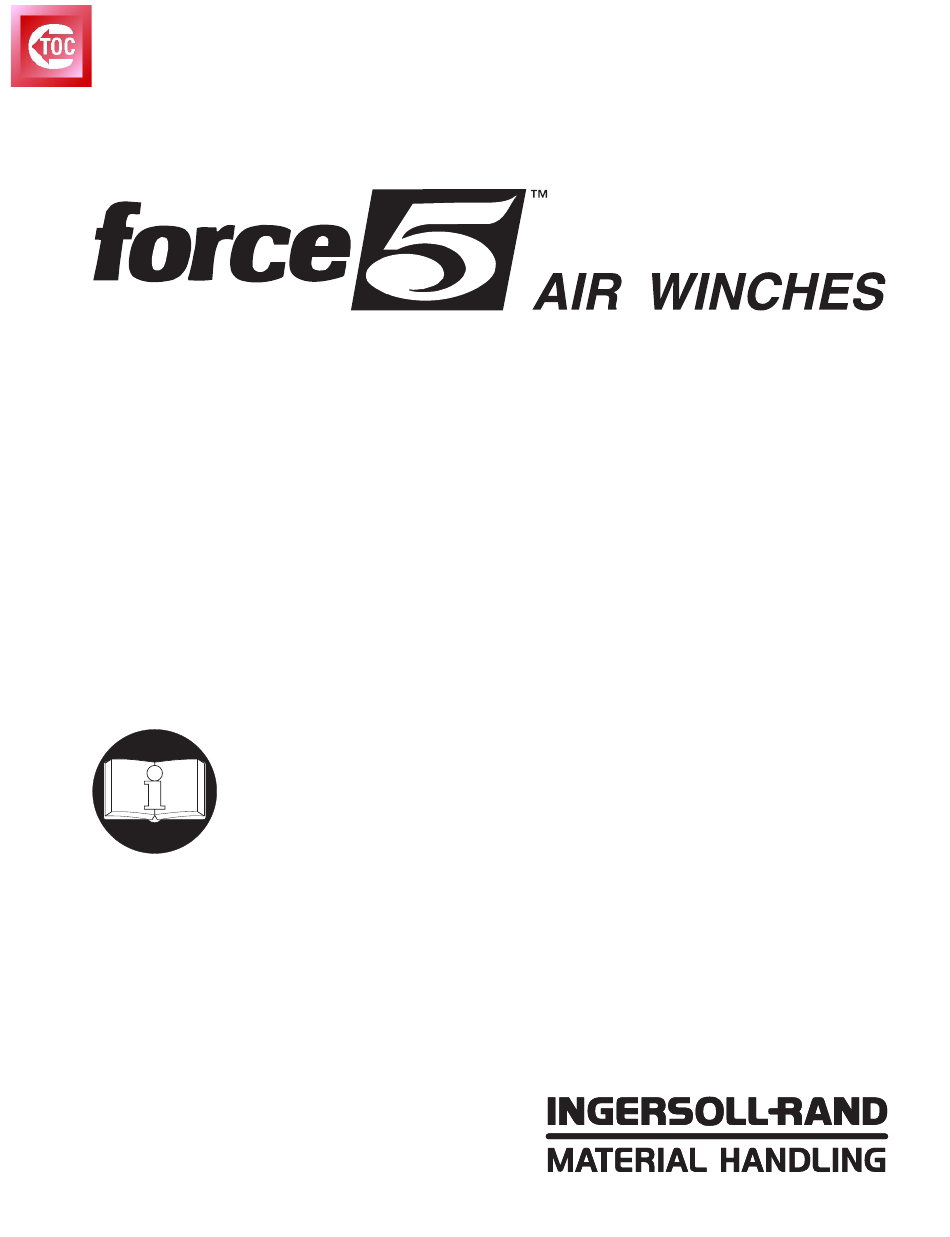

PARTS, OPERATION AND MAINTENANCE MANUAL
THIRD GENERATION
READ THIS MANUAL BEFORE USING THESE PRODUCTS. This manual
contains important safety, installation, operation and maintenance infor-
mation. Make this manual available to all persons responsible for the
operation, installation and maintenance of these products.
These instructions apply only to winches designed by Ingersoll-Rand that are identified for
personnel lifting by a permanent nameplate attached to the winch at the factory.
Always operate, inspect and maintain this winch in accordance with American National
Standards Institute Safety Code (ASME B30.7) and any other applicable safety codes and
regulations.
Refer all communications to the nearest Ingersoll-Rand Material Handling Office or
Distributor.
Form MHD56115
Edition 1
October 1997
71300248
© 1997 Ingersoll-Rand Company
MODEL FA5A-MR
ManRider
1
Form MHD56115
®
