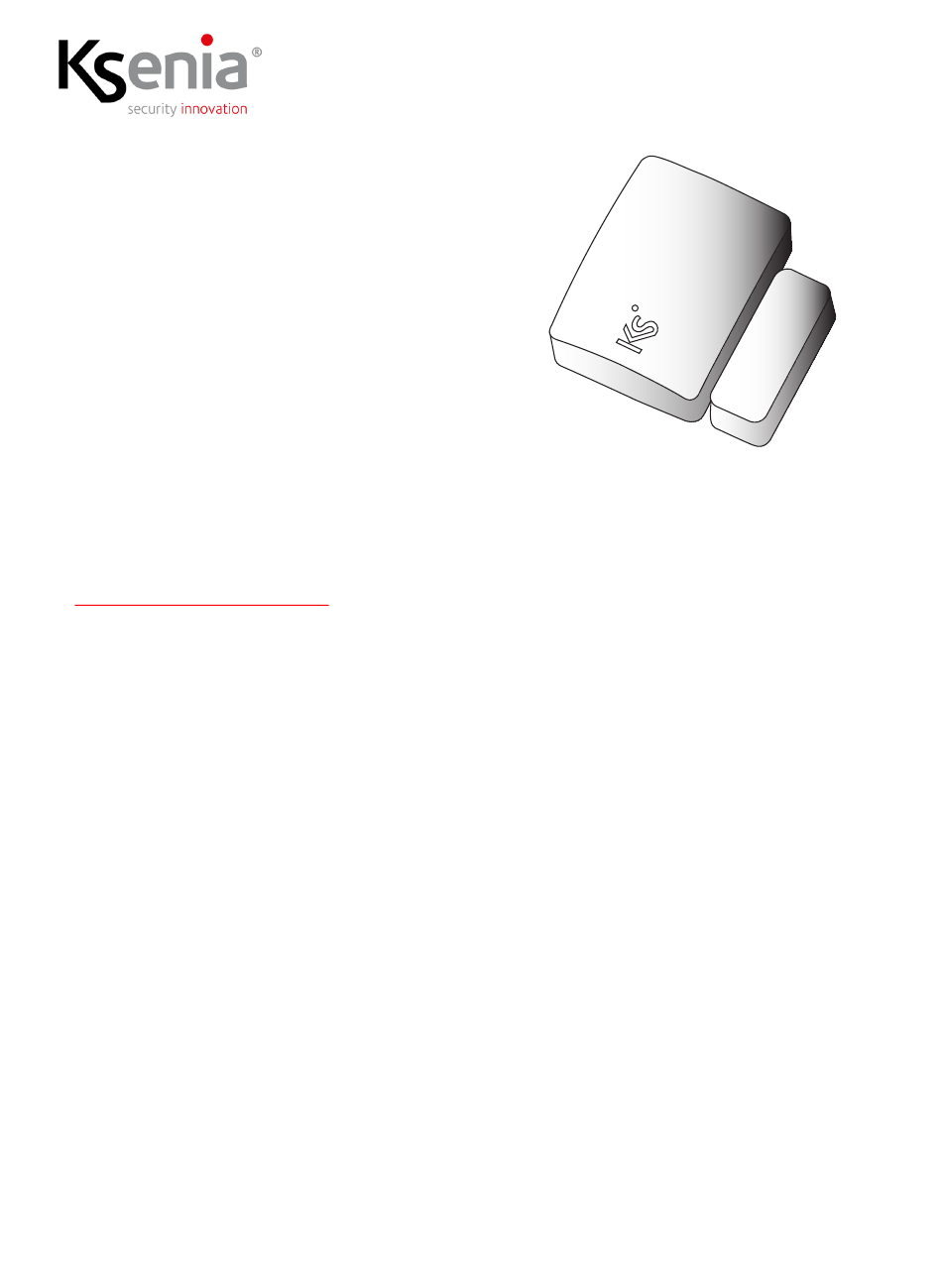

Ksenia micro poli Installation Manual

micro poli
WLS multifunction magnetic
contact
Installation guide
INTRODUCTION
micro poli is a wireless multifunction sensor, in compliance with the wireless bidirectional 868 MHz
protocol used by Ksenia Security. Inside a very small case characterized by an essential and minimalist
design, micro poli is much more than a simple magnetic contact.
micro poli is:
• an anti-masking magnetic contact to detect the opening of doors and windows;
• an inertial sensor to detect the vibrations of increasing intensity up to the breaking of glass/windows;
• able to measure the inclination of the window/door frame it protects, it allows the management of any
type of window opening (casement window, tilt and turn window, bottom hung windows, etc.) which it
would otherwise be impossible with only the magnetic contact.
As anti-masking magnetic contact with two REEDs (long side/short side) inside the transmitter, it is
extremely suitable for any type of door or window frames thanks to the installation position of the magnet
with respect to the transmitter. It is also possible to activate only one REED to detect the opening of the
window, according to the type of installation; masking attempts by applying a more powerful magnet
outside the frame can be detected, in this case it triggers a masking signal while the opening of the contact
triggers a Zone Alarm.
As inertial sensor, thanks to the 3-Axis accelerometer based on MEMs technology, when the vibration
exceeds the programmed sensitivity threshold, it triggers an alarm.
As advanced sensor, thanks to the 3-Axis accelerometer, it measures the angle of inclination of the window
within which the zone is considered on idle and beyond which it triggers an alarm.
code R30049.110en
ed.12/2021
KSI5008000.301 - white
KSI5008000.302 - black
KSI5008000.304 - brown
