Operator's Manual
IMPORTANT: Read this manual thoroughly before using this product. Follow all instructions.
WBBPBL43/ 01
WBBPBL43

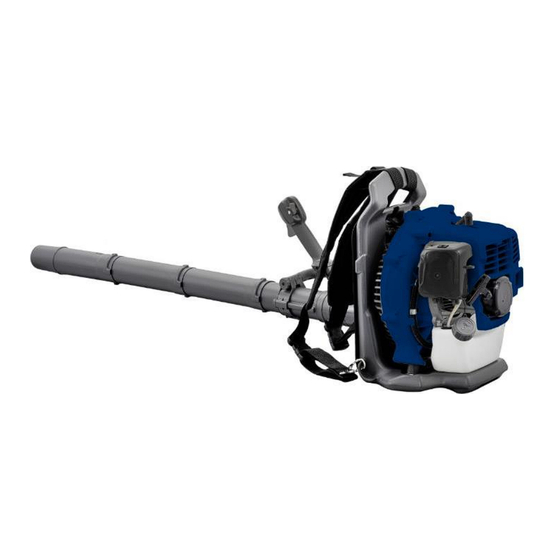

EB943 Blower
SAVE THESE
DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF
OF PURCHASE WILL BE REQUIRED FOR WARRANTY
SERVICE.
For assistance regarding the assembly, operation or maintenance of
the unit, please call
email box
Warranty service is available through an authorized service center.
To locate a service center in your area, please write us email or
call the number listed above. Service on this unit, both within and
after the warranty period, should only be performed by an
authorized and approved service center. When servicing, use only
identical replacement parts.
All information, illustrations, and specifications in this manual are
based on the latest product information available at the time of
printing. We reserve the right to make changes at any time without
notice.
The product may vary slightly from the illustrations contained in this
manual.
INSTRUCTIONS
SERVICE
1-844-786-7335
(in the United States) or contact
CUSTOMERSERVICE@BADGERPOWERPRODUCTS.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Badger Basket EB943
Summary of Contents for Badger Basket EB943
- Page 1 Operator’s Manual WBBPBL43 EB943 Blower SAVE THESE INSTRUCTIONS SERVICE DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE. For assistance regarding the assembly, operation or maintenance of the unit, please call 1-844-786-7335...
- Page 4 • SAFETY & INTERNATIONAL SYMBOLS • This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. Read instruction manual and safety instructions before starting up and pay attention! Wear eye protection.
- Page 5 Fuel pump Fuel tank capacity Symbol for refuelling the “MIX GASOLINE” on fuel tank cap. Wear protective gloves when using the device! Wear robust footwear when using the device! Beware of the rotating tool. Keep hands and feet out of openings while machine is running. Start lever (choke) "cold start"...
-
Page 6: Technical Data
Technical data EB943 Technical data Dimension LxWxH mm 1380x400x450mm Air speed max. km/h air volume max. m3/min dust bag capacity l Power unit Displacement cm3 42.7 Max. engine output kW Max. Engine speed min-1 7500-8200 Idle speed min-1 3500 ± 300... -
Page 7: Main Components List
Main components list 1. Handle 2. Throttle control 3. Starter 4. Choke lever 5. Air filter cover 6. Motor unit 7. Belt 8. Spark plug 9. Throttle lockout 10. Primer 11. Fuel tank 12. Hose 13. First lower tube 14. Second blower tube 15. -
Page 8: Scope Of Delivery
1. Introduction DEAR CUSTOMER, We hope your new tool brings you much enjoyment and success. NOTE: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to: Improper handling, Non-compliance of the operating instructions, Repairs by third parties, not by authorized service technicians,... -
Page 9: Workplace Safety
The manufacturer’s safety, operation and maintenance instructions as well as the technical data given in the calibrations and dimensions must be adhered to. Relevant accident prevention regulations and other generally recognized safety and technical rules must also be adhered to. The machine may only be used, maintained or re-paired by trained persons who are familiar with the machine and have been informed about the dangers. -
Page 10: Safe Handling With Fuels
Be careful, watch what you are doing and use an device sensibly. Do not use the tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using the device can result in serious injuries. Wear personal protection equipment and always wear safety goggles. -
Page 11: Attachment And Operation
• Breaking or catapulting of knife pieces. • Carbon monoxide poisoning when using the device in closed or poorly ventilated rooms. • Burning when touching hot parts. • Impairment of hearing when working on the machine for longer periods of time without ear protection. In addition, in spite of all the precautionary measures taken,non-obvious residual risks can still exist. - Page 12 Never use oil for 4-cycle engine or use water cooled 2-cycle engine. It can cause spark plug fouling exhaust part blocking or piston ring sticking. Mixed fuels, which have been left unused for a period of one month or more, may clog the carburetor or result in the engine foiling to operate property.
-
Page 13: Working Instructions
Pull the recoil starter handle (3) 3-5 times to start the engine RUN. Once the motor is running, briefly wait, then put the choke lever(4) into position. If there are problems, immediately turn the motor switch (9) to STOP (“O”)so the motor stops. 7.If the motor is warm, you can leave the choke lever (4) in the “warm start and work”... -
Page 14: Maintenance
7. Maintenance Injury warning! Always wear protective gloves when working on or around cutting tools. Change and clean the spark plug (Fig3) Check the spark plug air gap at least once a year or when the engine starts poorly. The correct gap between ignition flag and ignition contact is 0.25“/0.63 mm. - Page 15 The user is responsible for all damages caused by non-compliance with instructions in this manual. This also applies to non-authorized modifications of the tool, use of non-authorized spare parts, accessories, working tools, unrelated and not intended use, secondary damages due to use of faulty components. Warning! Use only original manufacturer‘s replacement parts, accessories and attachments.
-
Page 16: Disposal And Recycling
9. Disposal and recycling The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equip-ment and its accessories are made of various types of material, such as metal and plastic. Defective compo-nents must be disposed of as special waste. Ask your dealer or your local council. - Page 17 NOTES...
-
Page 18: Manufacturer's Limited Warranty
MANUFACTURER’S LIMITED WARRANTY The limited warranty set forth below is given by Badger with respect to new merchandise purchased and used in the United States, its possessions and territories . Badger warrants this product against defects in material and workmanship for a period of three (3) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship.
