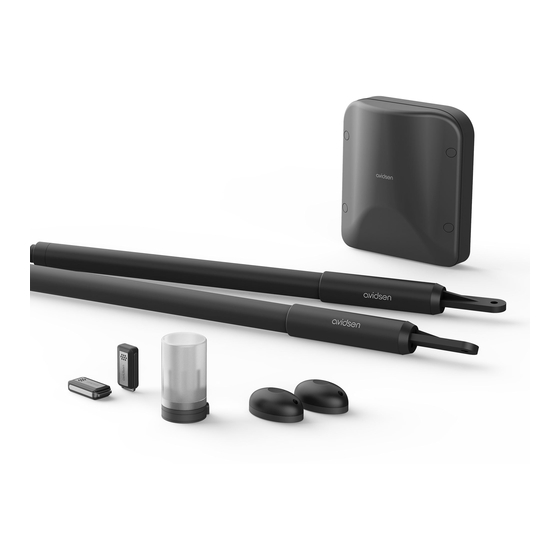

Avidsen STYRKA400 Quick Start Manual

STYRKA400
TELESCOPIC
EN
MOTOR DRIVE KIT
V5
For 2-panel swing gates
Ref. 114159
Thank you for purchasing an AVIDSEN automatic gate opener.
This document is a quick start guide detailing the main installation steps as well as the equipment required. To perform the installation, please
download the installation manual at the following address: www.avidsen.com
Warning: The safety instructions and installation instructions can be found in the installation manual. Follow all these instructions, as an
incorrect installation can cause serious injuries.

CONTENTS OF THE KIT

1
x 1
5
x 4
1 12V motorised cylinders
2 Control unit
3 Pillar mounting bracket
4 Gate mounting bracket
5 Clevis pin

EQUIPMENT REQUIRED (NOT SUPPLIED)

The tools and screws required for the installation must be in good condition and compliant with applicable safety standards.
Flashing light Photocells
3m cable 10m cable
2 x 0.5mm2
4-strand telephone
2
x 1
6 7
x 8 x 4
6 7.5mm spacer
7 Elastic pin
8 Photocells
9 Remote control
10 Flashing light
Actuators
10m cable
2 x 1.5mm2
cable
3
8
x 1
Attachment to the post: attachment of the brackets
- electronic panel onto the posts:
- flashing light
- photocells
x8 x8
4
x 2
9
x 2
drilling the post
drilling into the
gate
attachment of the attachment of the
brackets on the gate: brackets on the gate:
Choose a screw/nut Choose a screw/nut
system appropriate for system appropriate for
the thickness of the gate. the thickness of the gate.
There are 4 attachment There are 4 attachment
points points
x 2
10
x 1
