Summary of Contents for Techsis SE-4048

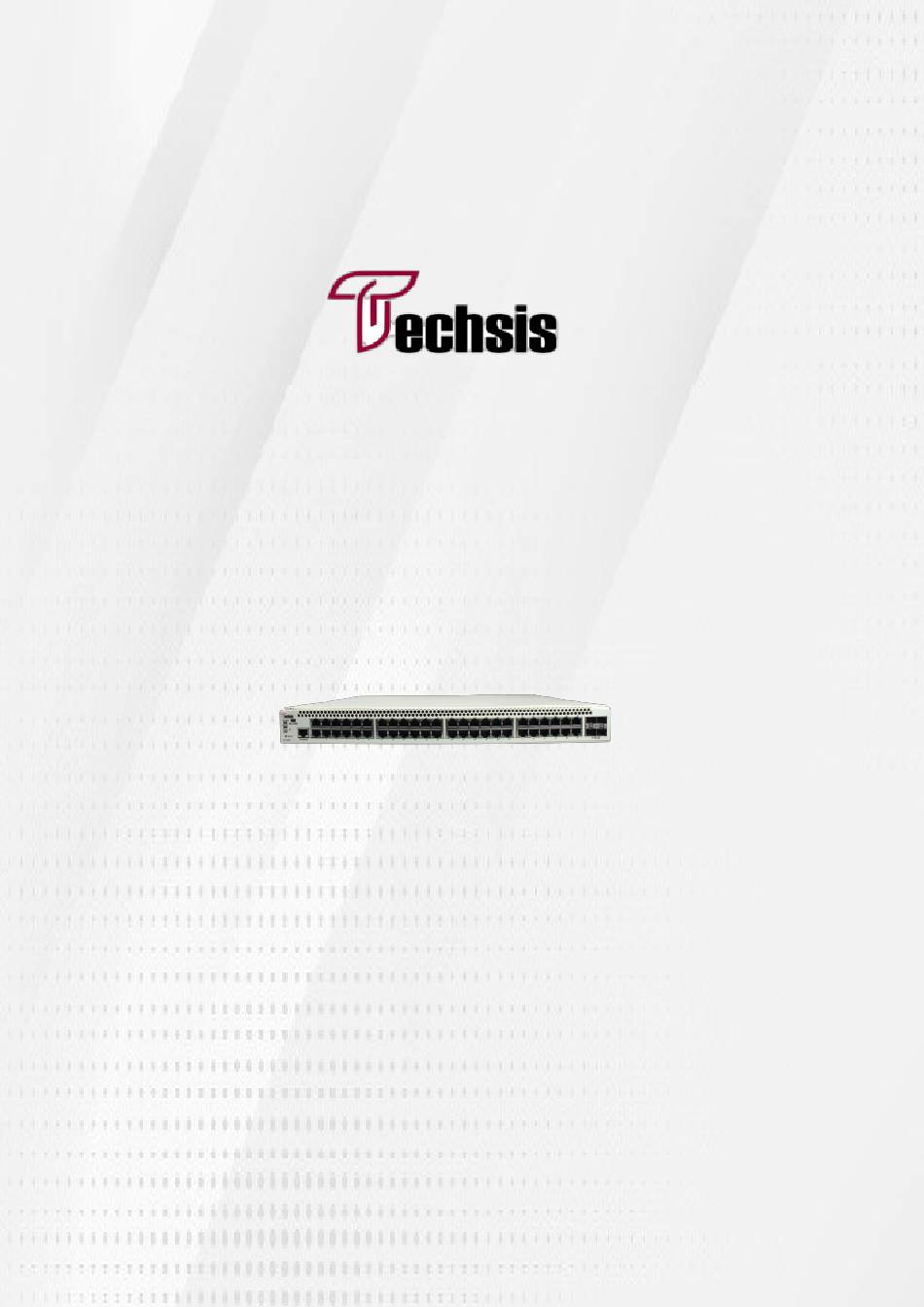

- Page 1 User Manual SE-4048 Version 1.0 May 2021...
- Page 2 SE-4048 Introduction to the installation manual The Product User's Manual mainly introduces the software and hardware parameters, installation methods, and precautions during the installation process of the SE-4048 switch. This manual includes the following sections: Chapter 1 Product introduction •...
-
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1 Product Introduction The SE-4048 adopts a new generation of high-performance hardware and software platform to provide flexible and cost-effective full Gigabit access and uplink ports. It supports Layer 3 routing protocols, complete security protection mechanisms, and complete ACL/QoS policies and enrichment. The VLAN function is easy to manage and maintain. - Page 4 SE-4048 Software Features Protocol standard Basical Functions • IEEE 802.3: Ethernet media access • Support hardware watchdog, restore factory Settings, system and port LED control (MAC) protocol • Support global information, statistics, log • IEEE 802.3i:10BASE-T Ethernet information • IEEE 802.3u:100BASE-TX...
- Page 5 SE-4048 MAC address table Multicast • Follow the IEEE 802.1d standard • Support IGMP v1/v2 Snooping • Support MAC address automatic learning • Support fast leave mechanism and aging • Support for multicast VLAN • Support static, dynamic, filtering address •...
-
Page 6: Indicator Light
SE-4048 1.4 Product appearance Front panel Contains indicator light, RJ45 port as shown below Indicator light The working information of the SE-4048 indicator is as shown in the following table. Indicator light Indicator light normal status Abnormal and trouble shooting... - Page 7 The Console port is used to connect to the serial port of a computer or other terminal to manage or configure the switch. Power socket The power supply to the switch SE-4048 must be 100-240V~ 50/60Hz AC power. Www.techs.is , Sales@techs.is :021-22371482 ,...
-
Page 8: Chapter 2 Hardware Connection
Connect the switch and the RJ45 port of the peer network device with a network cable. 2.2 Connecting SFP Ports The SFP port of the SE-4048 supports only 10 Gigabit fiber modules. It is recommended to use standard SFP module products. -
Page 9: Check Before Power-On
SE-4048 2.3 Check before power-on Check that the power supply of the power outlet meets the switch specifications. Check that the power supply, switch, and rack are properly grounded. Check whether the switch is connected to other network devices. 2.4 device initialization... -
Page 10: Chapter 3: Product Installation
SE-4048 Chapter 3: Product Installation 3.1 Installation Precautions Note: To avoid damage to the equipment and personal injury caused by improper use, please observe the following precautions. safety precautions ❖ power supply remains off during the installation process. Wear an ESD-preventive wrist strap and ensure that the ESD-preventive wrist strap is in good contact with the skin to avoid potential safety hazards. - Page 11 SE-4048 elevation Products with this mark are only suitable for safe use in areas below 2000m above sea level. dustproof Dust falling on the surface of the switch can cause electrostatic adsorption and poor contact of the metal contacts. Although the device itself has made certain measures in anti-static, when the static electricity exceeds a certain intensity, it will still cause fatal damage to the electronic components on the internal circuit board.
- Page 12 3.2 Product Installation 19inch standard rack mount The SE-4048-P300 is designed to fit the standard 19-inch rack and can be easily mounted to the rack. The specific installation steps are as follows: 1. Check the grounding and stability of the rack;...
- Page 13 SE-4048 Note: Good grounding of the rack is an important guarantee for anti-static, anti-leakage, lightning protection and anti-interference of the equipment. Therefore, ensure that the grounding wire of the rack is properly installed. The equipment installed in the rack is generally from bottom to top to avoid overload installation;...
- Page 14 SE-4048 Step3: Turn on the browser, input 192.168.254.1, and click Enter Step4: Enter the web manage UI, Input the Username and PW, both are admin and log in Step5: You already entered the web management UI of the switch and can start to configure the switch Www.techs.is , Sales@techs.is...
- Page 15 SE-4048 Chapter 4: packing list and recommendations for use 4.1Open the package and check the list below. Objects Quantity Remark Switch 1 pc Power cable 1 pc Support power to SW Hook 2 pcs To installation Warranty Card 1 pc...
