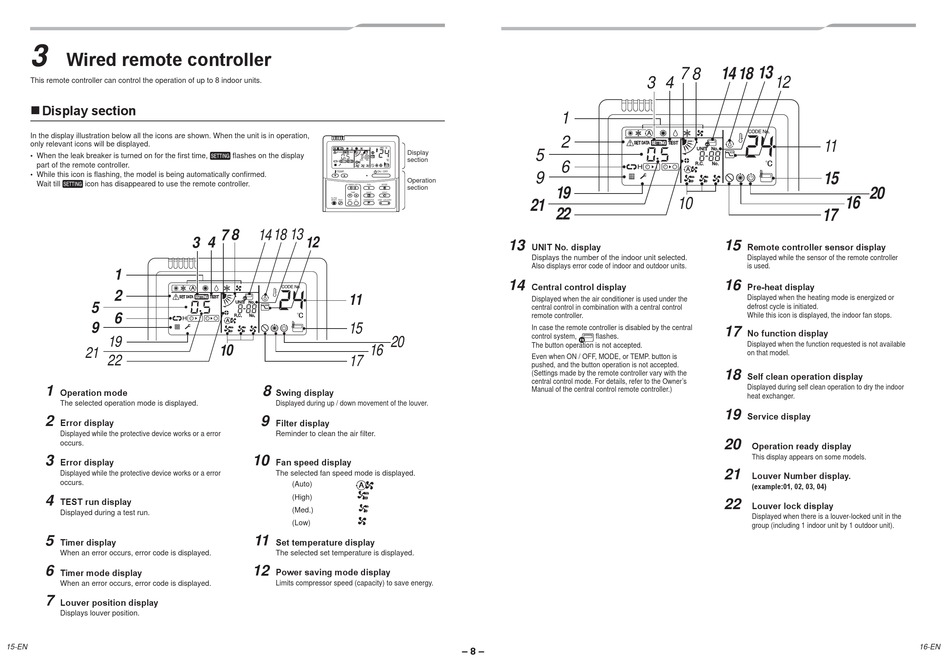

Wired remote controller

This remote controller can control the operation of up to 8 indoor units.
 Display section
In the display illustration below all the icons are shown. When the unit is in operation,
only relevant icons will be displayed.
When the leak breaker is turned on for the fi rst time,
•
part of the remote controller.
• While this icon is fl ashing, the model is being automatically confi rmed.
Wait till icon has disappeared to use the remote controller.
1
2
5
6
9
19
21
22
1
Operation mode
The selected operation mode is displayed.
2
Error display
Displayed while the protective device works or a error
occurs.
3
Error display
Displayed while the protective device works or a error
occurs.
4
TEST run display
Displayed during a test run.
5
Timer display
When an error occurs, error code is displayed.
6
Timer mode display
When an error occurs, error code is displayed.
7
Louver position display
Displays louver position.
15-EN
fl ashes on the display
TEMP.
TIMER SET FAN
TIME SAVE
FILTER
RESET TEST SET CL SWING/FIX
14 18 13
7 8
3 4 12
11
15
16
10
17
8
Swing display
Displayed during up / down movement of the louver.
9
Filter display
Reminder to clean the air fi lter.
10
Fan speed display
The selected fan speed mode is displayed.
(Auto)
(High)
(Med.)
(Low)
11
Set temperature display
The selected set temperature is displayed.
12
Power saving mode display
Limits compressor speed (capacity) to save energy.
5
Display
section
ON / OFF 9
Operation
MODE
section
19
VENT
21
UNIT LOUVER
22
13
UNIT No. display
Displays the number of the indoor unit selected.
Also displays error code of indoor and outdoor units.
14
Central control display
Displayed when the air conditioner is used under the
central control in combination with a central control
remote controller.
In case the remote controller is disabled by the central
control system,
20
The button operation is not accepted.
Even when ON / OFF, MODE, or TEMP. button is
pushed, and the button operation is not accepted.
(Settings made by the remote controller vary with the
central control mode. For details, refer to the Owner's
Manual of the central control remote controller.)
– 8 –
7 8 14 18
3 4
1
2
6
10
15
16
17
fl ashes.
18
19
20
21
22
13
12
11
15
20
16
17
Remote controller sensor display
Displayed while the sensor of the remote controller
is used.
Pre-heat display
Displayed when the heating mode is energized or
defrost cycle is initiated.
While this icon is displayed, the indoor fan stops.
No function display
Displayed when the function requested is not available
on that model.
Self clean operation display
Displayed during self clean operation to dry the indoor
heat exchanger.
Service display
Operation ready display
This display appears on some models.
Louver Number display.
(example:01, 02, 03, 04)
Louver lock display
Displayed when there is a louver-locked unit in the
group (including 1 indoor unit by 1 outdoor unit).
