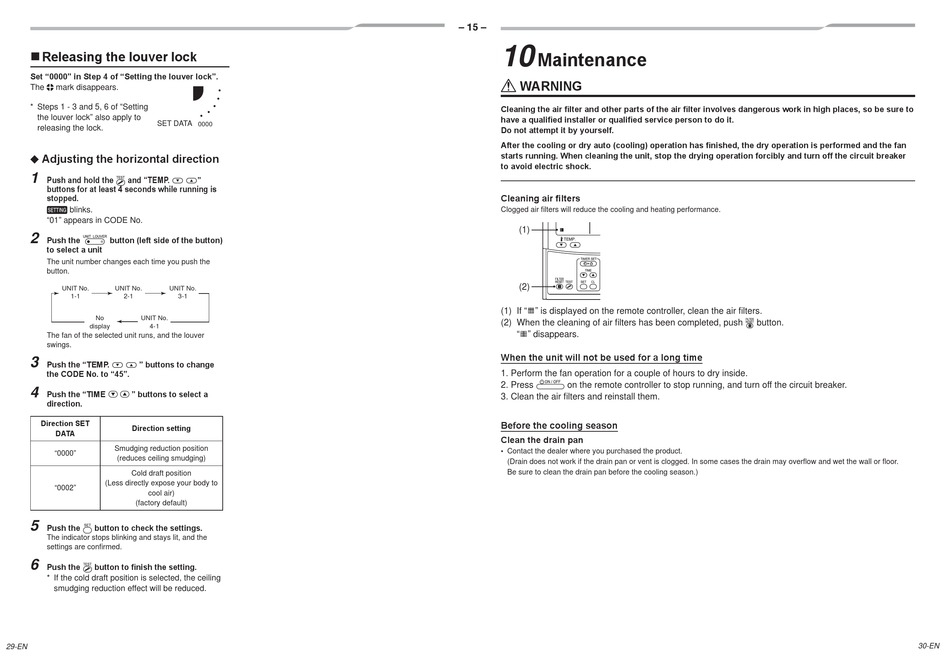

 Releasing the louver lock
Set "0000" in Step 4 of "Setting the louver lock".
The mark disappears.
* Steps 1 - 3 and 5, 6 of "Setting
the louver lock" also apply to
SET DATA
releasing the lock.
Adjusting the horizontal direction
1
Push and hold the and "TEMP.
buttons for at least 4 seconds while running is
stopped.
blinks.
"01" appears in CODE No.
2
Push the button (left side of the button)
to select a unit
The unit number changes each time you push the
button.
UNIT No. UNIT No. UNIT No.
1-1 2-1 3-1
No UNIT No.
display 4-1
The fan of the selected unit runs, and the louver
swings.
3
Push the "TEMP. " buttons to change
the CODE No. to "45".
4
Push the "TIME " buttons to select a
direction.
Direction SET
Direction setting
DATA
Smudging reduction position
"0000"
(reduces ceiling smudging)
Cold draft position
(Less directly expose your body to
"0002"
cool air)
(factory default)
5
Push the button to check the settings.
The indicator stops blinking and stays lit, and the
settings are confirmed.
6
Push the button to finish the setting.
* If the cold draft position is selected, the ceiling
smudging reduction effect will be reduced.
29-EN
0000
"
– 15 –
10

Maintenance

WARNING
Cleaning the air fi lter and other parts of the air fi lter involves dangerous work in high places, so be sure to
have a qualifi ed installer or qualifi ed service person to do it.
Do not attempt it by yourself.
After the cooling or dry auto (cooling) operation has fi nished, the dry operation is performed and the fan
starts running. When cleaning the unit, stop the drying operation forcibly and turn off the circuit breaker
to avoid electric shock.
Cleaning air fi lters
Clogged air fi lters will reduce the cooling and heating performance.
(1)
(2)
(1) If " " is displayed on the remote controller, clean the air fi lters.
(2) When the cleaning of air fi lters has been completed, push
" " disappears.
When the unit will not be used for a long time
1. Perform the fan operation for a couple of hours to dry inside.
2. Press on the remote controller to stop running, and turn off the circuit breaker.
3. Clean the air fi lters and reinstall them.
Before the cooling season
Clean the drain pan
• Contact the dealer where you purchased the product.
(Drain does not work if the drain pan or vent is clogged. In some cases the drain may overflow and wet the wall or floor.
Be sure to clean the drain pan before the cooling season.)
button.
