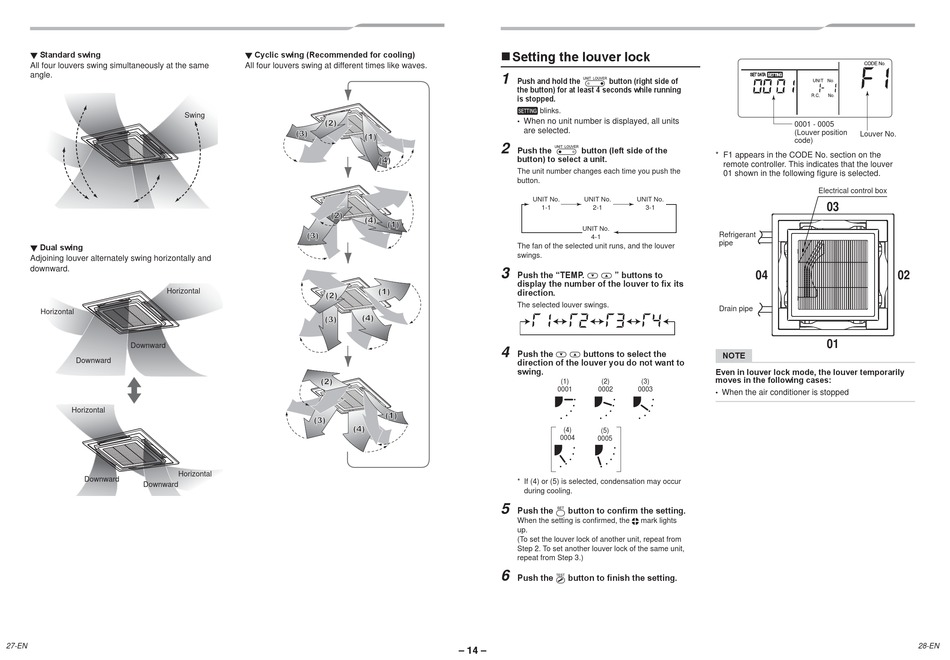

Standard swing
All four louvers swing simultaneously at the same
angle.
Swing
Dual swing
Adjoining louver alternately swing horizontally and
downward.
Horizontal
Horizontal
Downward
Downward
Horizontal
Horizontal
Downward
Downward
27-EN
Cyclic swing (Recommended for cooling)
All four louvers swing at different times like waves.
 Setting the louver lock
1
Push and hold the button (right side of
the button) for at least 4 seconds while running
is stopped.
blinks.
When no unit number is displayed, all units
•
are selected.
2
Push the button (left side of the
button) to select a unit.
The unit number changes each time you push the
button.
UNIT No. UNIT No. UNIT No.
1-1 2-1
UNIT No.
4-1
The fan of the selected unit runs, and the louver
swings.
3
Push the "TEMP. " buttons to
display the number of the louver to fix its
direction.
The selected louver swings.
4
Push the buttons to select the
direction of the louver you do not want to
swing.
(1) (2)
0001 0002
(4) (5)
0004
0005
* If (4) or (5) is selected, condensation may occur
during cooling.
5
Push the button to confirm the setting.
When the setting is confirmed, the
up.
(To set the louver lock of another unit, repeat from
Step 2. To set another louver lock of the same unit,
repeat from Step 3.)
6
Push the button to finish the setting.
– 14 –
0001 - 0005
(Louver position
code)
* F1 appears in the CODE No. section on the
remote controller. This indicates that the louver
01 shown in the following figure is selected.
3-1
Refrigerant
pipe
04
Drain pipe
NOTE
Even in louver lock mode, the louver temporarily
moves in the following cases:
(3)
0003
When the air conditioner is stopped
•
mark lights
Louver No.
Electrical control box
03
02
01
EN
