Unit select button
When multiple indoor units are controlled with one
•
remote controller, louver direction can be set for each
indoor unit by selecting individually.
To set louver direction intdividually, push
•
button to display an indoor unit number in the control
group. Then set the wind direction of the displayed
indoor unit.
When no indoor unit number is displayed, all indoor
•
units in the control group can be controlled
simultaneously.
Each time button is pushed, the display changes
•
as follows:
UNIT No. UNIT No. UNIT No.
1-1 1-2
Not UNIT No.
display 1-4
 How to set louver wind
direction individually
1
Select an indoor unit to be set by pushing
(left side of the button) during
operation.
The indoor unit number changes each time you
•
push the button.
UNIT No. UNIT No. UNIT No.
1-1 1-2
Not UNIT No.
display 1-4
* When no unit number is displayed, all indoor units
are selected.
2
Select a louver you want to adjust change by
pushing (right side of the button).
Each time you push the button, the display on
•
the left of the remote controller changes as
follows:
Not
display
* When no louver number is displayed, all four louvers
are selected.
Louver No.
23-EN
Electrical control box
03
Refrigerant
pipe
04
Drain pipe
01
1-3
3 Determine wind direction of the selected
louver by pushing .
• Each time you push the button, the display
changes as follows:
(1) (2) (3)
(7) (6)
* During COOL (DRY) mode, (4) and (5) are not
displayed.
1-3
7

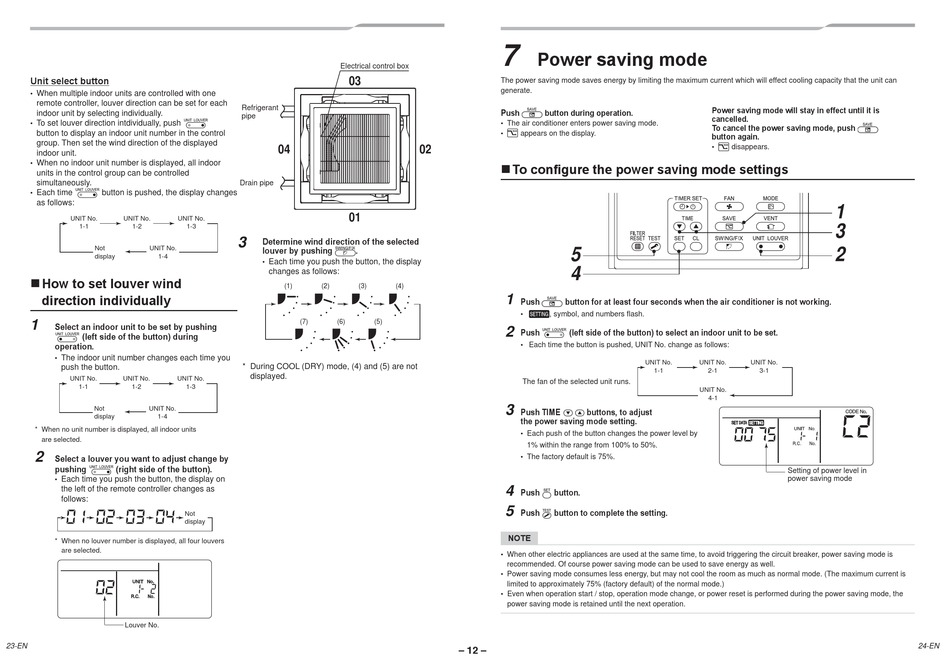

Power saving mode

The power saving mode saves energy by limiting the maximum current which will effect cooling capacity that the unit can
generate.
P
ush button during operation.
• The air conditioner enters power saving mode.
• appears on the display.
02
 To configure the power saving mode settings
(4)
1
Push
• , symbol, and numbers flash.
(5)
2
Push
• Each time the button is pushed, UNIT No. change as follows:
The fan of the selected unit runs.
3
Push TIME
the power saving mode setting.
• Each push of the button changes the power level by
1% within the range from 100% to 50%.
The factory default is 75%.
•
4
Push
5
Push
NOTE
When other electric appliances are used at the same time, to avoid triggering the circuit breaker, power saving mode is
•
recommended. Of course power saving mode can be used to save energy as well.
Power saving mode consumes less energy, but may not cool the room as much as normal mode. (The maximum current is
•
limited to approximately 75% (factory default) of the normal mode.)
Even when operation start / stop, operation mode change, or power reset is performed during the power saving mode, the
•
power saving mode is retained until the next operation.
– 12 –
Power saving mode will stay in effect until it is
cancelled.
To cancel the power saving mode, push
button again.
• disappears.
5
4
button for at least four seconds when the air conditioner is not working.
(left side of the button) to select an indoor unit to be set.
UNIT No. UNIT No.
1-1 2-1
UNIT No.
4-1
buttons, to adjust
button.
button to complete the setting.
1
3
2
UNIT No.
3-1
Setting of power level in
power saving mode
EN
