ATEN UC9020 - Multi-Channel AV Mixer Quick Start Guide

Hardware Review

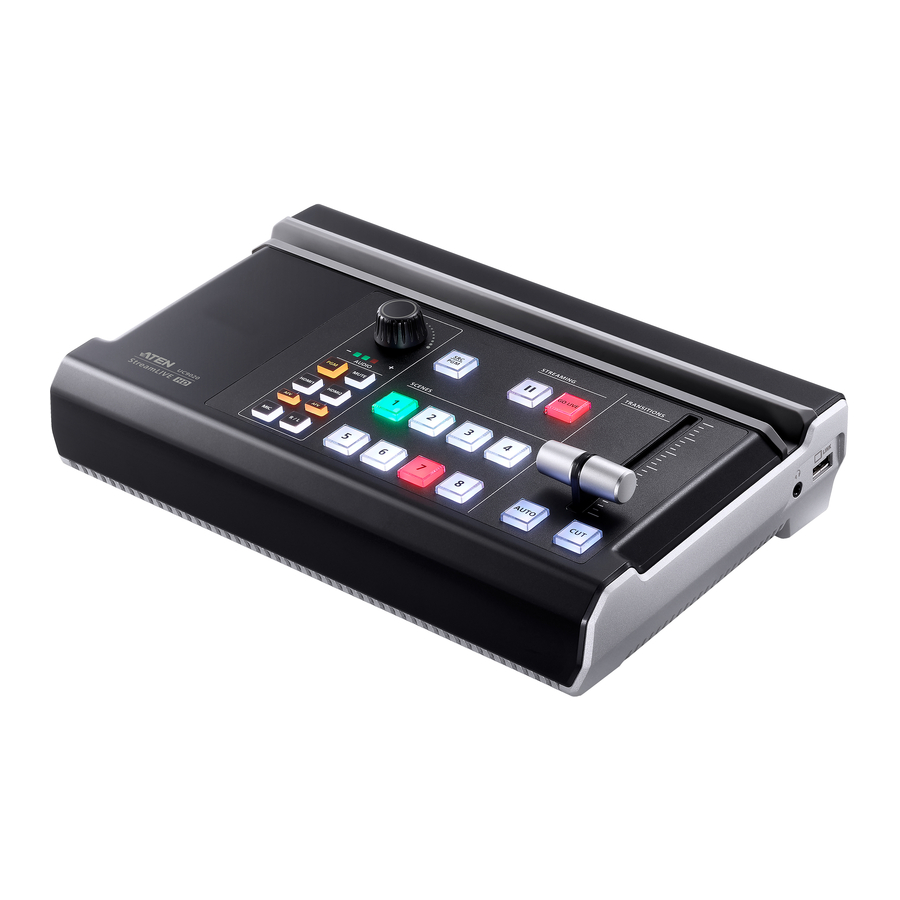

Top View

1. Audio Level Control
2. iPad Stand
3. SRC / PGM View Selector
4. Stream Control
5. Transition Control with T-Bar
6. Scenes Selector

Rear View

1. SRC / PGM Output Port
2. 4K HDMI Loop out Port / 4K HDMI Input Port
3. 1080P Video Input Port
4. Ethernet Port
5. USB 3.2 Gen1 Type-A Port
6. RCA Line In Port / MIC In Port
7. AC Power Socket

Side View

1. iPad Link Port (Data only)
2. 3.5mm Audio Monitor Jack

System Requirements

• Ethernet Connection
• iPad Pro (3rd Gen or later) with iOS 11 or later
• The following iPad with iOS 11 or later
  • iPad Pro (1st/2nd Gen)
  • iPad (5th Gen or later)
  • iPad Air (3rd Gen or later)
  • iPad Mini (5th Gen or later)

Hardware Installation

1. Plug the AC power cord and wait for the device boot-up luminous sequence (Scenes Key) finished.


2. Connect the HDMI video source here.


3. Connect the microphone or any other audio source respectively.


4. (Optional) Connect the HDMI Output cable if necessary:
   1. Connect the HDMI display to the SRC/PGM Output Port.
   2. Connect the HDMI display to the Loop Out Port.


5. Connect an Ethernet cable here for internet access. Need additional network setting via iPad before you click GO LIVE Button for live streaming.


6. Connect your iPad to the iPad Link Port for control purpose. *


*Note: For iPad with USB-C connector, simply connect the USB-A to USB-C cable to the UC9020. Or use the USB-A to USB-A cable along with an Apple Lightning USB 3 Adapter (not included, may need additional purchase) to iPad with the lightning connector.

Software Installation

Download the ATEN OnAir App from the App Store and install on the iPad.

Note: ATEN OnAir App is a control panel designed for UC9020 to monitor program results, editing scenes, and make changes to streaming settings.

Click to open the ATEN OnAir App and the Tutorial will be prompted for the fi rst time when you open the ATEN OnAir App. This tutorial will guide you through the process of how to operate the ATEN OnAir App with UC9020.

To run the Tutorial again, click on the Menu on the top left corner and select .

Operation

AUDIO

Make audio adjustment by choosing different audio source and use to Volume Control to adjust.

STREAMING

SRC/PGM Pushbutton, press it to switch between Sources or Program video contents to be displayed.

Press the GO LIVE pushbutton to live stream your video content, and press to stop.

SCENES

Choose different scenes to be displayed, when the red LED appears, it means current scene is being displayed, and the green LED means it is in PRV mode.

TRANSITIONS

Use the T-bar to adjust the transitions, press AUTO and CUT to switch video and audio contents.

Local Video File Playback

UC9020 accepts HDMI and non-HDCP protected video sources.

If your consumer-grade camera/camcoder video input

• supports Clean HDMI Output, it can provide the best video layout.
• does not support Clean HDMI Output, use resize/crop tool(s) to avoid overlapped areas (between the video and the GUI)

Microphone Support

Use 6.35mm connectors/adapters.

Since UC9020 does not provide +48V phantom power, condenser microphones require additional power supply to maintain normal operations. You can use phantom power supply/adapter, audio interface, or microphone preamp.
