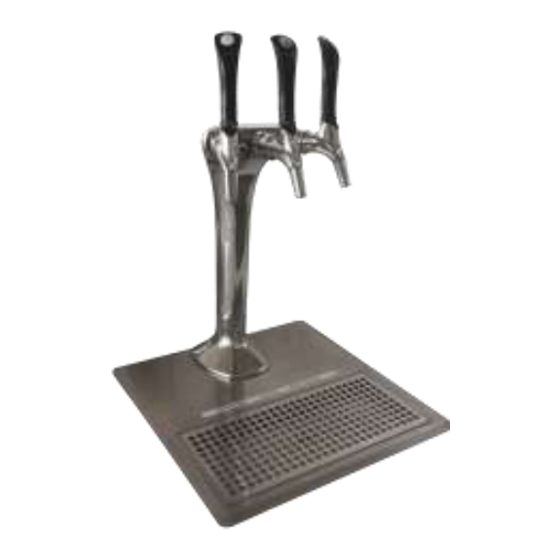

Still water remote dispenser system . remote chiller with cbr towers (12 pages)
Summary of Contents for Crysalli CBR Series
Page 1

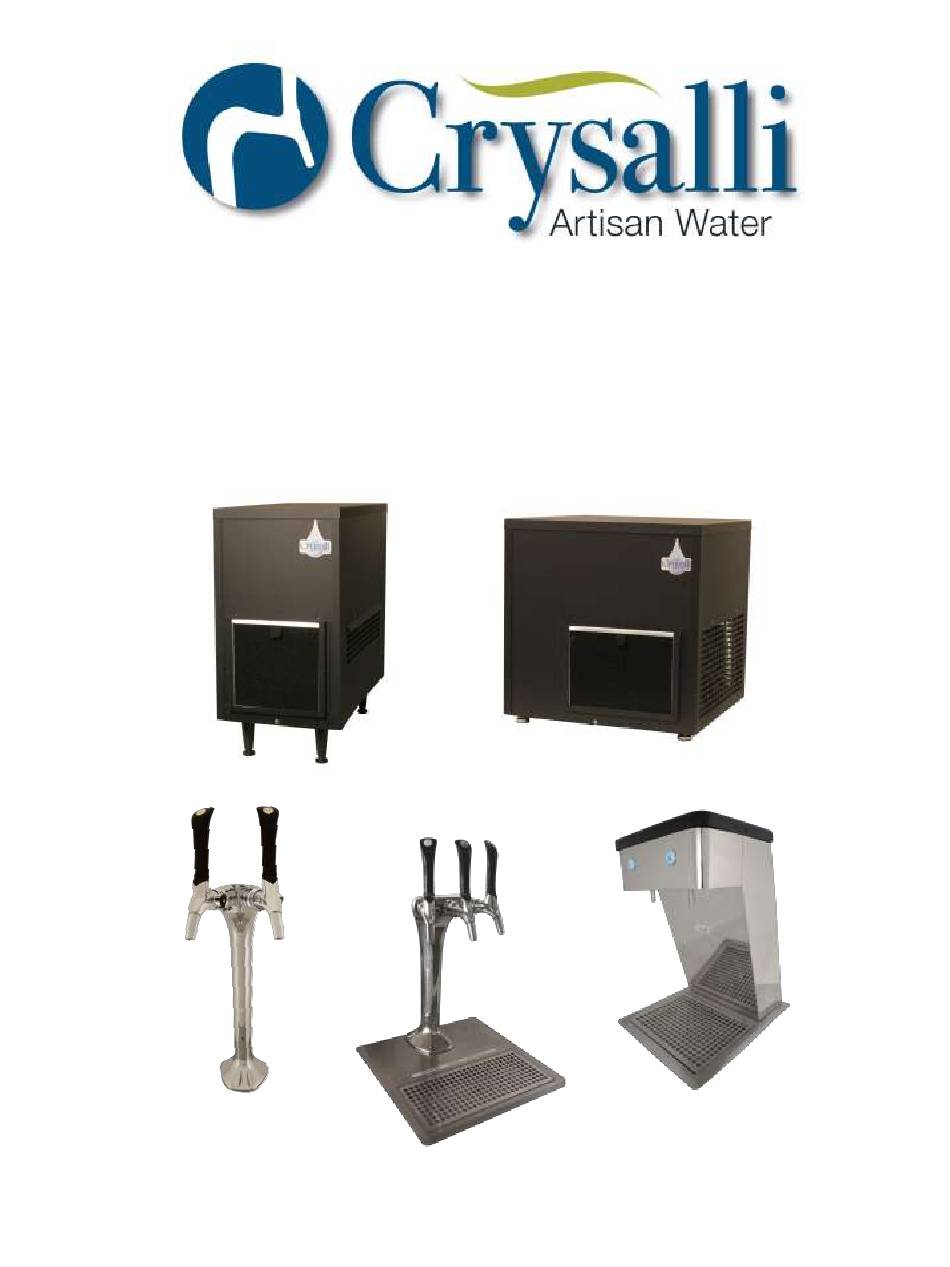

UCM Install Guide Sparkling & Still Remote Dispenser System CR-UCM1 & CR-UCM2 Remote Chiller with CBR, LIT, or CM Series Towers. www.crysalli.com 32018...
Page 2
CR-UCM Series Start-up and Install Check List Start-up Sequence: Notes: • Turn Water on to unit (confirm flow from faucets) • Plug unit in and toggle On/Off switch to the On position. • Turn CO2 on at tank. (carb tank may need to be bled) Water Filters, CR-24FC and CR-24FCP •...
Page 4
Using JG fittings CBR and LIT Towers Correctly Fitting not set and tightened tightened down...
Page 5
Mounting the RDP-1SSQ or RDP-3SS Recessed Drain Pan Counter requires a Square cut for drain pan section and Hole cut for tower: • CBR-V1: 1 3/8” Hole • CBR-V2: 1 1/2” Hole • CBR-V3: 1 7/8” Hole 2” Threaded stud for mounting. •...
Page 6
(using the red locking clips), then connect them to the Super Seal fittings on the tower tubes (see “CR-4L38 Trunkline Tower End Connections” page). SI030812S Super Seal Elbow, loosen collet nut, push into SS tube and tighten collet nut. Crysalli 1739 Sabre St. Hayward, CA 94545. 510-732-0100. www.crysalli.com...
Page 7
CR-4L38 Trunkline Tower End Connections Step #1 Locate the CR-4L38 Trunkline. 5’ will be included with the UCM install kit, unless a longer length was ordered. If a longer length is being used pull the line from the Chiller to the tower, being careful not rip the pvc wrap and not to make any bends that kink the tubes.
Page 8
Mounting Faucets & Handles to Tower Locate the Faucet Bodies, Handles and Faucet Wrench. The faucet bodies attach to the shanks, that are pre-attached to the tower and leak tested. When attaching the faucet body to the shank, be sure the faucet is properly aligned before tightening it down.
Page 9
Installing the Water filter system, Water Regulator and Angle Stop Adaptor. Locate the PSEI6012U9 Locate the 2 PSEI012026 1/2” to Locate the 183-150-NF 50 Angle stop adaptor in 3/4” NPT fittings and PP062012W PSI Water Reducer and the UCM Install Kit. 5/8 Stem to 3/8 tube adaptor two PI451214FS fittings Locate the angles stop...
Page 10
Placing the UCM Remote Chiller The CR-UCM Chillers generate a lot of heat when running, take all necessary measure to place it in an environment/space that allows for it to vent hot air out & away and pull in fresh cool air. Failure to do so will void warranty and cause operational issues.
Page 11
Connecting the UCM Chiller. Step #2 Step #1 Connect 1 of the PP221212W Fittings and red locking clips to the Water Inlet hose from the water Position the UCM filter system. Then connect to the UCM Chiller Water In. unit so you can make the trunkline Step #3 and water connec-...
Page 12
Connecting CO2 and Filling Water Bath The Hose for the CO2 connection is 6’ long, 1/4” Braded Hose with a 1/4” flare nut on the end extending out from the chiller near the water inlet. Route this hose to the location of the CO2 tank. If additional hose is required, the UCM install kit comes with an additional 8’...
Page 13
CR-3741 High Pressure CO2 Regulator 0-160 PSI: Attaches to 5-100 lb CO2 tanks. Set at 75 PSI as a starting point. (Note: Low Pressure Beer Regulators 0-50 psi, will not work properly with Crysalli) Output Pressure Gauge: Fill Level Gauge: Volume of CO2 Shows CO2 output pressure in Tank.
Page 14
Sparkling Water Flow Adjustment Lock Out. Upon start up of the system, the CR-SSQ1231 Faucets used on the CBR-V1, CBR-V2, CBR-V3, LIT-V2C and LIT-V3C dispensing towers will need the flow rate adjusted and set. These faucets are designed with a flow control adjustment knob (decrease or increase the flow of the water) on the right side of the faucet body.
Page 15
Inspect internal water bath components such as Agitator/re-circ pump and blade, check valves for CO2 and Water, and all hose connections. Flush and rinse system with food safe sanitizer (this work should be performed by a certified service tech). Crysalli 1739 Sabre St. Hayward, CA 94545. 510-732-0100. www.crysalli.com...
