M S-7388 M ainboard

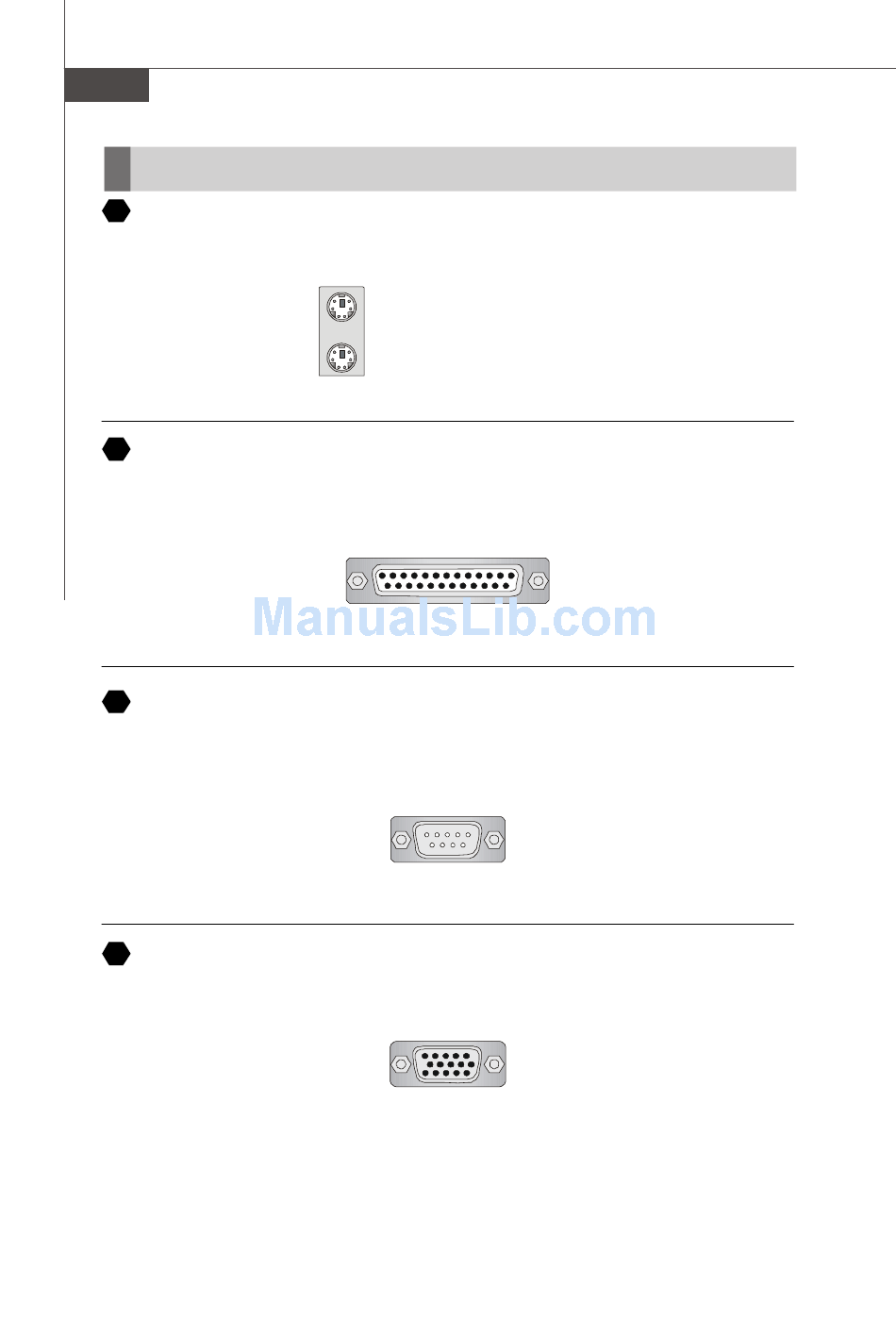

Back Panel

A
Mouse/Keyboard
®
The standard PS/2 mouse/keyboard DIN connector is for a PS/2
B
Parallel Port
A parallel port is a standard printer port that supports Enhanced Parallel Port (EPP) and
Extended Capabilities Parallel Port (ECP) m ode.
C
Serial Port
The serial port is a 16550A high speed comm unications port that sends/ receives 16
bytes FIFOs. You can attach a serial m ouse or other serial devices directly to the
connector.
D
VGA Port
The DB15-pin female connector is provided for monitor.
En-18
PS/2 Mouse connector (Green/ 6-pin female)
PS/2 Keyboard connector (Purple/ 6-pin female)
13 1
25 14
1 5
(9-Pin Male Connector)
6 9
5 1
(15-Pin Female DIN Connector)
15 11
®
mouse/keyboard.
(25-pin female connector)
