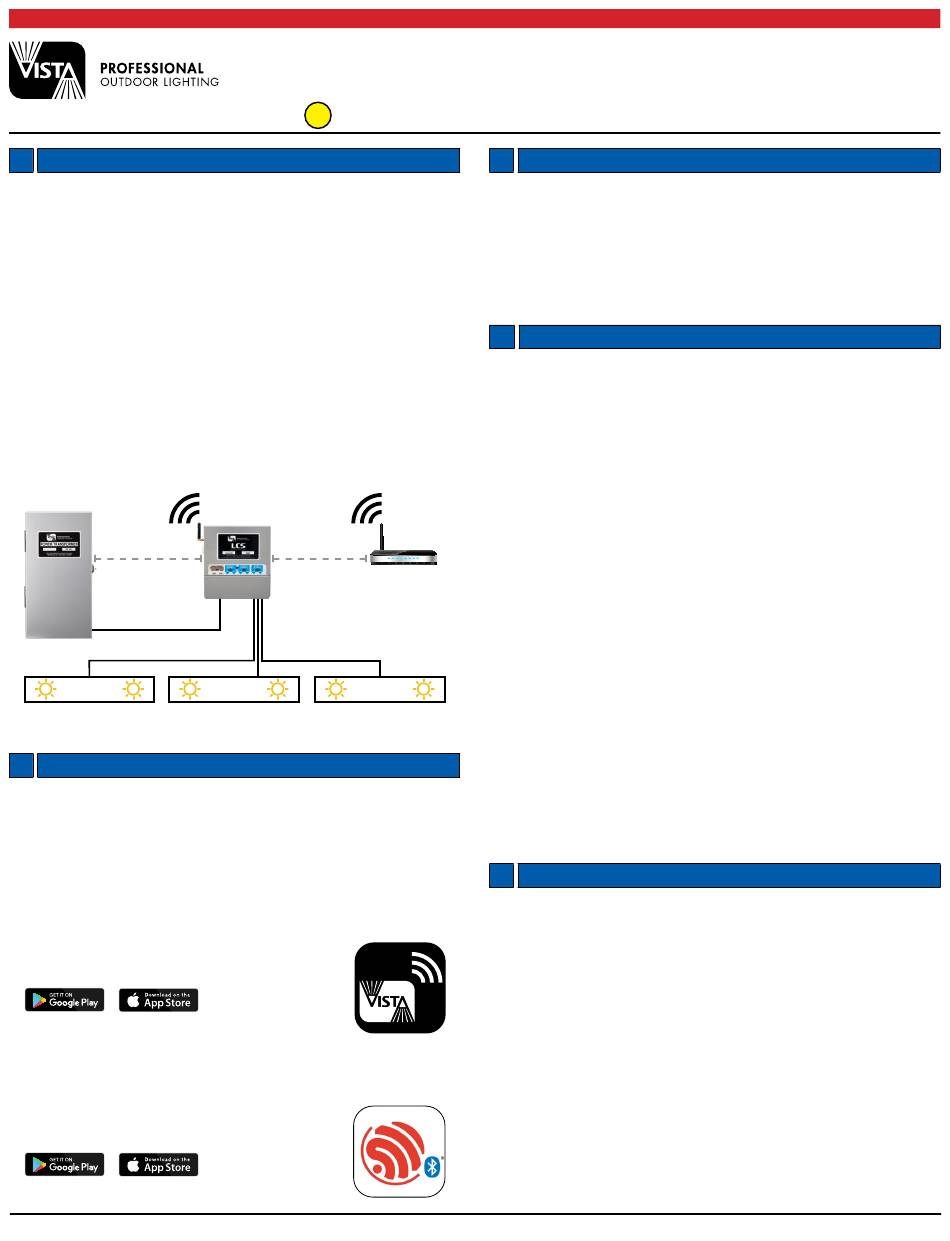

Vista Lighting Control System Installation Instructions

THESE INSTRUCTIONS SUPERCEDE SET-UP INSTRUCTIONS IN THE APP
INSTALLATION INSTRUCTIONS
A QUICK START
1. Install and wire host transformer to 120V service (no fixtures connected).
2. Locate and mount LCS controller within 100' of host transformer and within
100' of your WiFi network access point.
3. Using 12-15V output from host, connect min. 12-2 low voltage cable to
LCS input terminals.
4. Connect low voltage fixtures to three LCS output zones up to 150W total.
5. Energize host transformer output.
6. Locate LCS control switch - push to "ALL ON"
7. Ensure all field fixtures are on, then push switch to "APP" position.
8. Download VISTA CLOUD app to your device and follow on screen
instructions.
Transformer
100' max.
12-15V Supply to LCS
ZONE 1
B DOWNLOAD SETUP APPS
1. Confirm your mobile device is connected to the home network in the
location that the LCS is installed at and ensure that your device's Bluetooth
is on.
2. Make note of the WiFi name and password as this will be required later in
the process.
3. Using your smart device search and download the free VISTA CLOUD App.
4. Also, download ESP BLE Provisioning App from the App Store or Google
Play. (as this will allow Bluetooth enabled set-up for quicker and easer
account set-up.)
1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-Vista (8478) • FAX: (888) 670-Vista (8478) • email@Vistapro.com • www.Vistapro.com
for Serial Numbers 5463 and Above
LCS
100' max.
ZONE 2 ZONE 3
C CREATING A VISTA ACCOUNT
1. Open the VISTA CLOUD App and create a new account. If you already
have an existing account, sign in.
2. Next the VISTA CLOUD App will prompt you to "add a controller."
DO NOT add a controller, close the VISTA CLOUD App, as the controller
must be added to the network using the ESP-BLE-Provisioning App first.
D ADDING LCS CONTROLLER TO YOUR NETWORK & ACCOUNT
1. Make sure your Bluetooth is on and open the ESP-BLE-Provisioning App.
2. Hold down the WiFi connect button on the LCS for 5 seconds then release it.
(The WiFi status LED should be solid red)
3. Tap "Provision Device" (allow camera access if prompted).
4. Tap "I don't have a QR Code" (allow Bluetooth access if prompted).
5. Tap on the text field at the top next to where it states "prefix" and delete
WiFi
Router
all text in the next field and replace it with these three capital letters: LCS
6. Tap the reload (circle/arrow) to the right of where it says "Devices."
7. After searching, a text should appear in the list named LCS_XXXXXX
(where X are random letters and numbers), tap on it.
8. On the next screen, do not modify the text, tap next.
9. Select your home WiFi network from the list and enter your WiFi password.
Tap Provision.
10. Wait for unit to connect, if the unit successfully connects to the WiFi the
WiFi LED will be illuminated solid green. (If failed, repeat steps 1-9).
11. Open the VISTA CLOUD App and add controller. Tap next.
12. Tap the "scan QR code" icon and scan the QR code, and wait until the
next screen appears.
13. STOP, DO NOT PROGRESS TO THE NEXT SCREEN!! Tap the zones
icon at the upper left hand corner of the screen.
14. You are now finished and your controller should be online and ready to use.
E NETWORKING NOTES
• To ensure a strong network signal, install a WiFi extender/booster if required.
• Connect only to 2.4GHz WiFi network . Controller will not work with 5Ghz
networks
• In the event of power loss, re-connection to designated WiFi is automatic
once power is restored, indicated by a red "WiFi status" LED, which will
turn solid green when connected.
• If WiFi signal only is lost, controller will continue with programed settings
indefinitely.
• Networking steps will need to be repeated if your WiFi password or SSID
has changed.
• For set-up and operating convenience, any controller may be scanned and
added to a new account/device.
• Only one account may add/control a given controller.
LCS

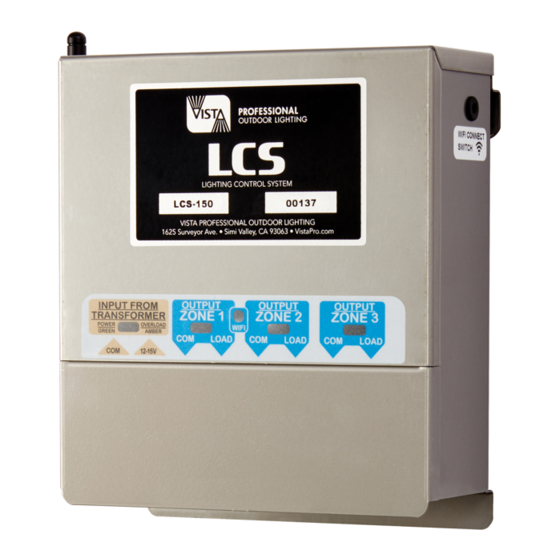

Lighting Control System
