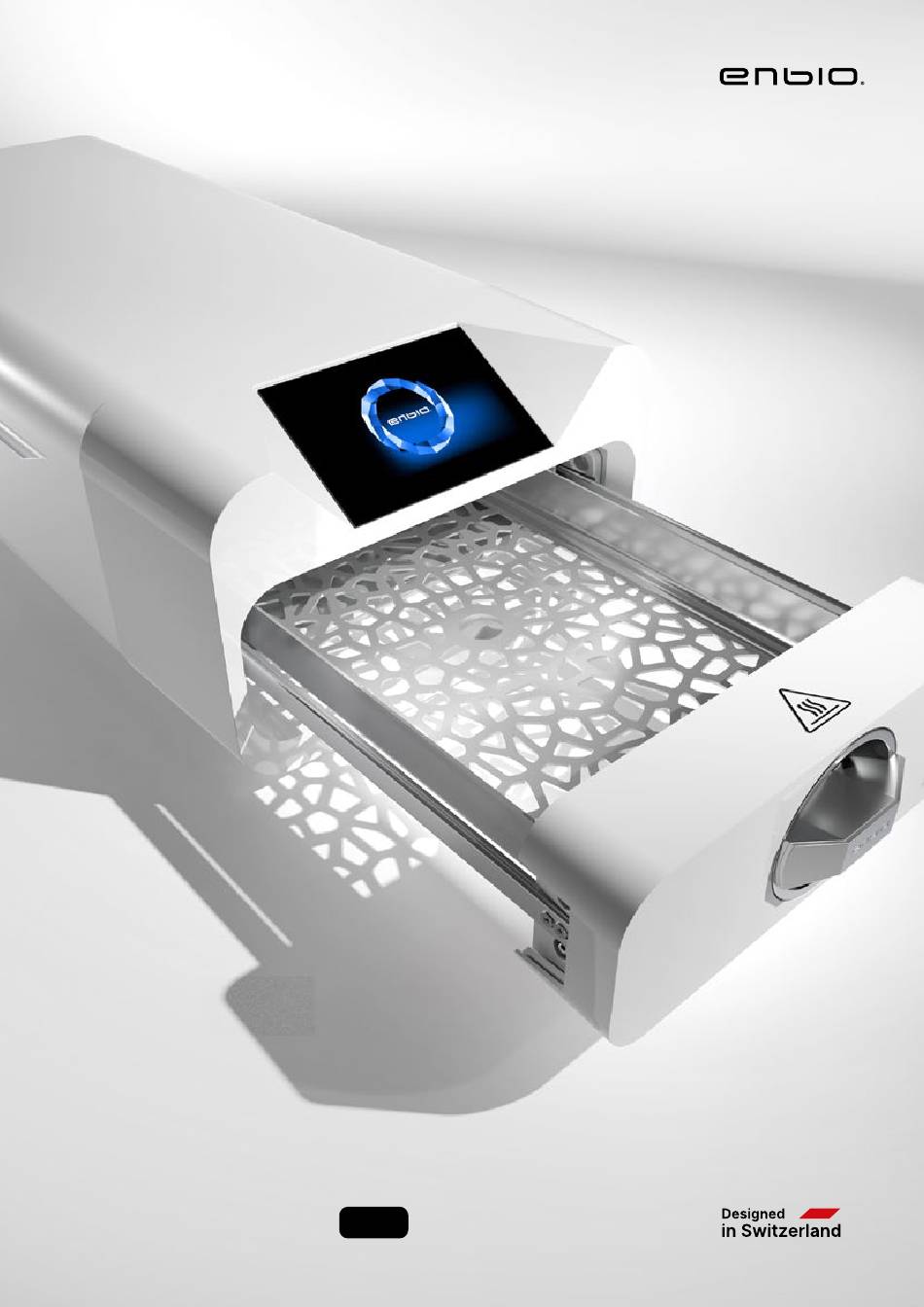

- Page 1 2022.10.04 Enbio S User Manual...
-
Page 2: Table Of Contents
9. Warning messages and error codes USB socket water inlet 9.1 Warning messages 9.3 Error codes 10. Warranty claim handling Condensate outlet WATER Main switch 11. Warranty terms and conditions 12. Technical information The latest version of the manual is available at www.enbio.com... -
Page 3: Introduction
It is suitable for the sterilization guidelines. of dental and medical instruments that are validated to be sterilized by steam. The Enbio S has not been designed to sterilize liquid loads, bio-medical waste or materials not compatible with steam sterilization. -
Page 4: Unpacking Of The Device
Scope of delivery and unpacking of the Device. antennas) should be used no closer than 30 cm (12 inches) to any part of the Enbio S, including cables specified by Enbio. Otherwise, degradation of the performance of this equipment could result. -
Page 5: Standard Equipment
2.2 Standard equipment Verify the contents of the packaging in which the device has been delivered prior to installing it. The delivery packaging should contain: 1. ENBIO S sterilizer 2. Power cord 3. HEPA filter 4. Water and condensate connection cables, rubber plugs for water/condensate containers 5. -
Page 6: Device Installation
Connect the connection tube included with the device to the water supply quick-release coupling on the device’s rear panel, marked as WATER IN. Submerge the other end of the tube in the water supply container. The device is equipped with a water suction pump, there is no need to position the water container above or on the same level as the device. -
Page 7: Water Quality
S sterilizers. Therefore tap water cannot be used as feed water for ENBIO S sterilizers. The table below During 134°C FAST program do not use packages or wrapping. -
Page 8: Principles Of Packing Tools For Sterilization
Depending on the type of load to be sterilized, the user is responsible for selecting the appropriate program dedicated for the given type of load, in accordance with the manufacturer’s recommendations for sterilization. After the process in 134°C FAST program, tools are wet and hot. - Page 9 After switching on the device, the start screen appears on the display. To go to the next screen, press the screen once with your finger (anywhere). Selection of sterilization programs This screen only appears on first run, before the first process is performed. Each time the device is switched on again, the welcome screen appears in the display.
- Page 10 Maintain particular care and use protective gloves to remove the load, or wait until it cools. Performing the sterilization process in the ENBIO S device does not affect material biocompatibility. All components of the device that are in direct contact with the sterilized...
-
Page 11: Test Programs
Enbio S Bowie & Dick / Helix Vacuum test Process temperature 134°C –... - Page 12 Open the pack and remove the chemical indicator from inside. small, highly porous load. It contains sheets of paper packaged in a small pack containing a chemical indicator (a physicochemical test). This test assesses the device’s performance in sterilizing charges composed of porous objects: •...
-
Page 13: Information Menu
The ENBIO S sterilizer counts the number of performed processes and uses it to notify you about warning screen the recommended dates of replacing elements subject to wearing down, and about required service... -
Page 14: Restarting
Counter values displayed in yellow or red do not prevent the device when the chamber is from operation. However, exceeding the required inspection date may significantly affect the device’s opened. By selecting operation and the load sterilization process. -
Page 15: Maintenance And Care
6.2 Periodic inspections notches in which the drawer fits. In order to ensure correct functioning of the ENBIO S sterilizer, it is recommended to perform periodic service inspections and replace parts subject to wearing down in accordance with the following schedule, Cleaning external surfaces and periodic inspection of individual sterilizer elements in accordance with the following guidelines. -
Page 16: Data Archiving
The progress of each performed sterilization is automatically saved on a data carrier (USB drive). The The Enbio Data Viewer software enables viewing and archiving sterilization programs on a computer, and data can be used only for archiving, the sterilization process correctness is directly communicated by the printing them. -
Page 17: Enbio Data Viewer Software
2. At main screen of Enbio Data Viewer click “Help” button and then “About the program”. 3. At new window choose „Check the current software version”. 4. The Enbio website will open automatically, from which you should download the latest version of the EnbioDataViewer program – by clicking in “Download” button 5. -
Page 18: Program Construction And Main Functionalities
8.2. Program construction and main functionalities Drop-down menu: By clicking on the File window we have access to the options: The main window consists of three main areas • Loading the saved process flow from the memory of the USB flash drive or from another location •... -
Page 19: Warning Messages And Error Codes
Warning messages and error codes By clicking on the Help drop-down menu, you have access to the options: • About program If any irregularities in the device’s operation occur, the screen will display relevant warning messages and error codes. 9.1 Warning messages "Aborted by user"... -
Page 20: Error Codes
Error codes "Chamber heating error" Chamber heating error • Mains voltage too low - consult an electrician for the location where the autoclave is to be installed The following table includes the error codes that may be displayed • Contact the service during the use of the sterilizer. -
Page 21: Warranty Claim Handling
The sender bears complete liability for damage during transport to the Technical Service. 11. Warranty terms and conditions ENBIO sterilizers are covered by a standard 12-month warranty. Detailed warranty terms and conditions Error no. 5 - Pressure in the are available from the supplier of this device. - Page 22 12. Technical data Technical data Enbio S Power supply 110-120 V/60Hz Test connector - to be used by authorized service only. Installed power 1.6 kW max. If it is determined that the user has Maximum electric current consumption 15 A used it, the warranty will be voided.
- Page 23 Enbio Group AG Eichengasse 3, 4702 Oensingen enbio.com Switzerland...
