H o m e & B u s i n e s s s e c u r i t y
L19LD1600
Series

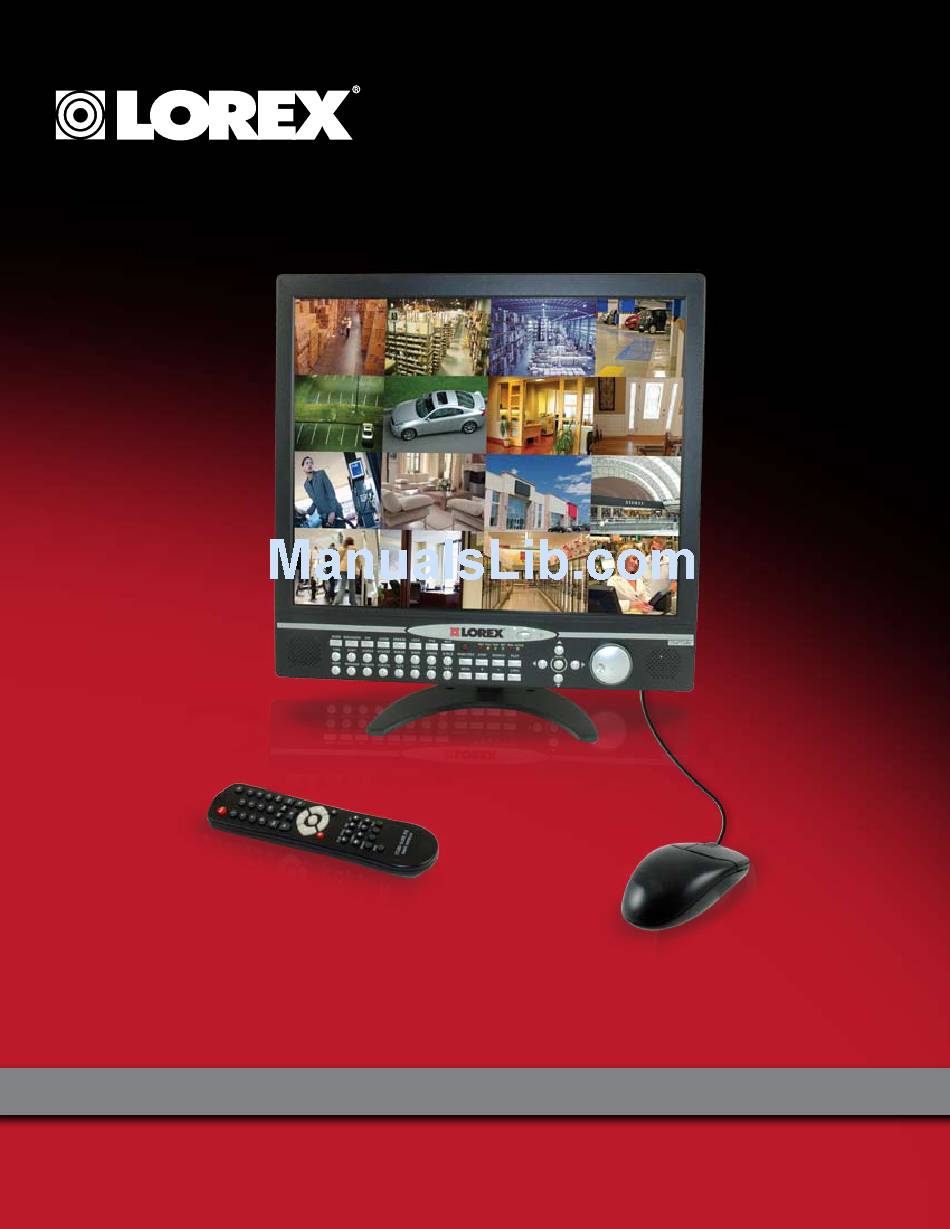

Quick start guide

W W W . L O R E X C C T V . C O M
information in tHis document is suBject to cHange witHout notice. as our products are
suBject to continuous improvement, Lorex tecHnoLogy and our suBsidiaries reserve tHe
rigHt to modify product design, specifications and prices, witHout notice and witHout
incurring any oBLigation. e&oe © 2008 Lorex. aLL rigHts reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L19LD1600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lorex L19LD1600 Series

Summary of Contents for Lorex L19LD1600 Series

  • Page 1: Quick Start Guide

    W W W . L O R E X C C T V . C O M information in tHis document is suBject to cHange witHout notice. as our products are suBject to continuous improvement, Lorex tecHnoLogy and our suBsidiaries reserve tHe rigHt to modify product design, specifications and prices, witHout notice and witHout...

  • Page 2: Package Contents

    17. NEXT 18. VOL +/-   INSTRUCTIONS: SOFTWARE REQUIREMENTS: for detailed setup information, please for Lorex client software refer to your user’s requirements, please refer manual. to Lorex client manual. under 15 minutes under 30 minutes under 60 Hand Tools...
  • Page 3 STEP 1 - SET UP YOUR MONITOR FIRST L19LD1600 Series Quick Set-up Guide CONNECT CAMERAS TO THE SYSTEM: connect the first camera to the cH1 input. follow the same steps to connect the additional cameras. 1. Connect the Female BNC end of the supplied 60’ extension cable to the camera.

  • Page 4: Mac Address

    Lorex internet remote (isa) software installation. LOREX INTERNET REMOTE SOFTWARE (IRS): (on your local computer) close the cd menu screen. a Lorex internet remote software (irs) icon will appear on your desktop. RUN THE LOREX CLIENT 5.0 SOFTWARE: (on your local computer) double-click the Lorex internet remote software (irs) icon on your desktop to run the program.
  • Page 5 VIEW CAMERAS LOCALLY: (on your local computer for local viewing): from the Lorex client 5.0 software - local configuration screen (as shown in the pic- ture), press the connect button to connect to Local Live site to view your cameras.

  • Page 6: Ddns Registration

    STEP 3 - SET UP INTERNET REMOTE SECURITY MONITORING L19LD1600 Series Quick Set-Up Guide PORT FORWARD YOUR ROUTER: port forward your router first before proceeding with the set-up (port 50000). all routers are different. to port forward your router, please refer to your router’s user manual.
  • Page 7 STEP 3 - SET UP INTERNET REMOTE SECURITY MONITORING L19LD1600 Series Quick Set-up Guide LOGIN: once the account has been created, you will need to login using your credentials (as set in step 4). once the username and password have been entered, press the Log in button to access the configuration menu.
  • Page 8 , click on the menu button. LOREX CLIENT REMOTE ACCESS SETUP: the remote connection information needs to be added to the Lorex client software to allow for a remote connection (using ddns). 1. Load the Lorex client software.

  • Page 9: Recommended Tips

    RECOMMENDED TIPS FUNCTION ICONS - AVAILABE FOR USE ONLY THROUGH A MOUSE right click to open mouse control interface. L19LD1600 Series Quick Set-up Guide LOCATE MONITOR CONNECTIONS: tilt the monitor up to loacte your monitor’s connections. the corresponding functions for mouse buttons please...

  • Page 10: Hdd Installation

    Backup player software - refer to the user manual for details. regardless of the network playback speed, video is being recorded on your system in real time, and can be viewed when you are at the system or through the backup player. L19LD1600 Series Quick Set-Up Guide...
  • Page 11 LOREX INTERNET REMOTE SOFTWARE (IRS) 1. LOREX CLIENT 5.0 remote monitoring software recommended for local area network (Lan) - view, playback and record. 2. LOREX BACKUP use this software to create a backup of your recorded data from a remote location.
  • Page 12 - north america: 1-888-42 Lorex (1-888-425-6739) toll free technical support - international (outside of north america): 00-800-425-6739-0 Lorex international website - www.lorexinternational.com L19LD1600 Series Quick Set-Up Guide www.lorexcctv.com/support...
